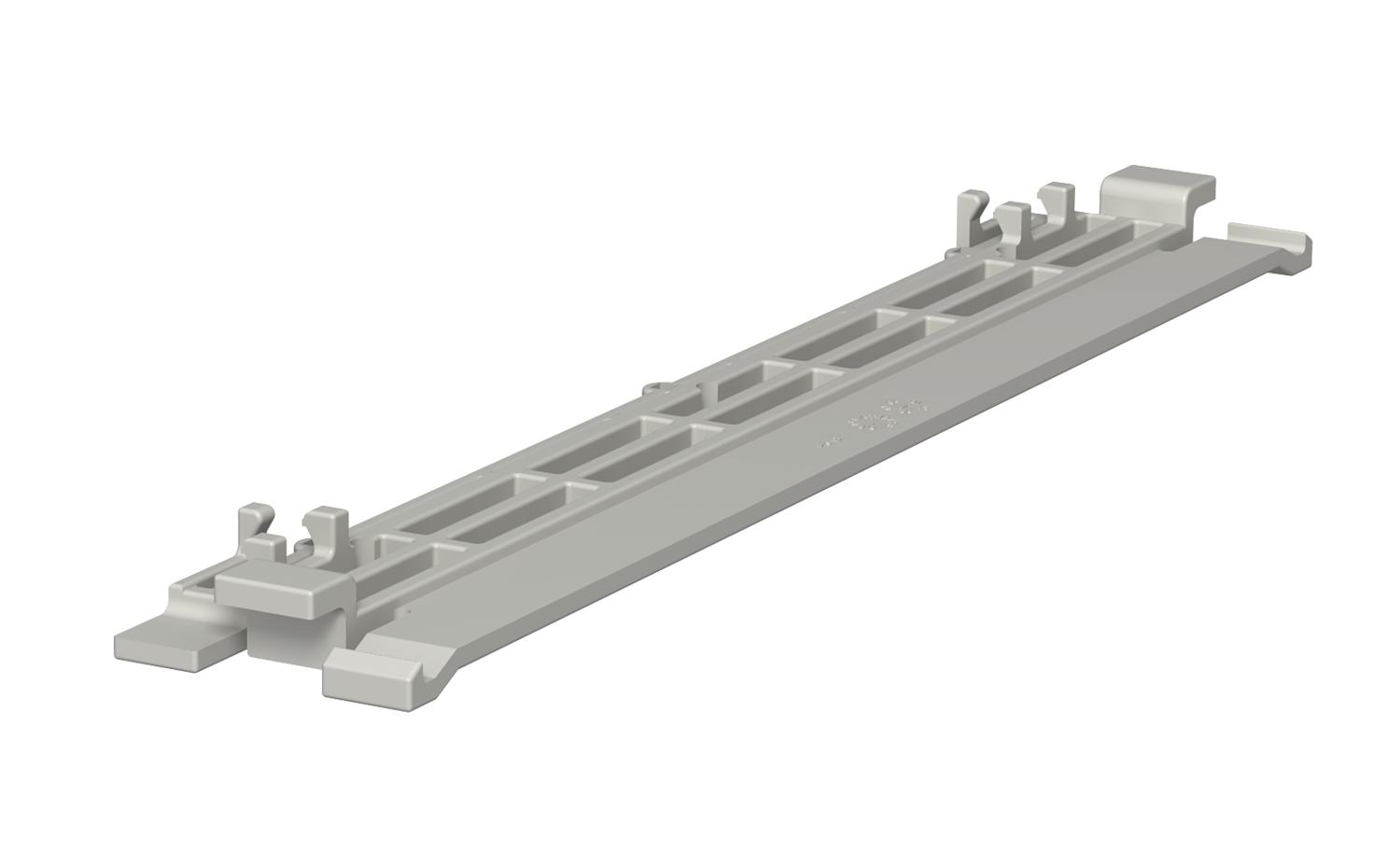

Cover clip for WDK trunking, trunking width 230 mm
Item no. 6023584 | EAN 4012196639250
- Product description
-
Product descriptionCover clip for better and easier laying of lines in the WDK trunking.
The cover clip is locked on one side and moved forward. This provides a 30° opening, meaning that cable routing is very simple.
From trunking widths of 110 mm, the cover clips can also be used as a mounting aid.
-
- Technical data
-
Technical data
Colour Light grey; RAL 7035 Cover width 230 mm Dimension 230mm Dimension a 216,2 mm Dimension b 36 mm Fastening type Lockable Halogen-free no Length 36 mm Maintain electrical functions no Material Polyvinylchloride Permitted temperature range, max. 60 °C Permitted temperature range, min. -5 °C Protection rating IP30 Protection rating IK code IK04 Self-extinguishing yes Width 216,2 mm With equipotential bonding no - All types
- Downloads
-
Data sheet 2370 230 / 6023584 , 0.19MB , pdfCatalogue Cable routing systems , 17.62MB , pdfEU declaration of conformity 2370 230 / 6023584 , 0.13MB , pdfUK Declaration of Conformity 2370 230 / 6023584 , 0.14MB , pdfMounting instructions Leitungsführungskanal WDK , 6.19MB , pdfMounting instructions Mounting instructions Mounting aid WDK , 0.07MB , pdfNo invitation to tender text is available for this product.
