Cover clip for WDK trunking, trunking width 90 mm 75.7 | 28.8
morepic-1 morepic-2

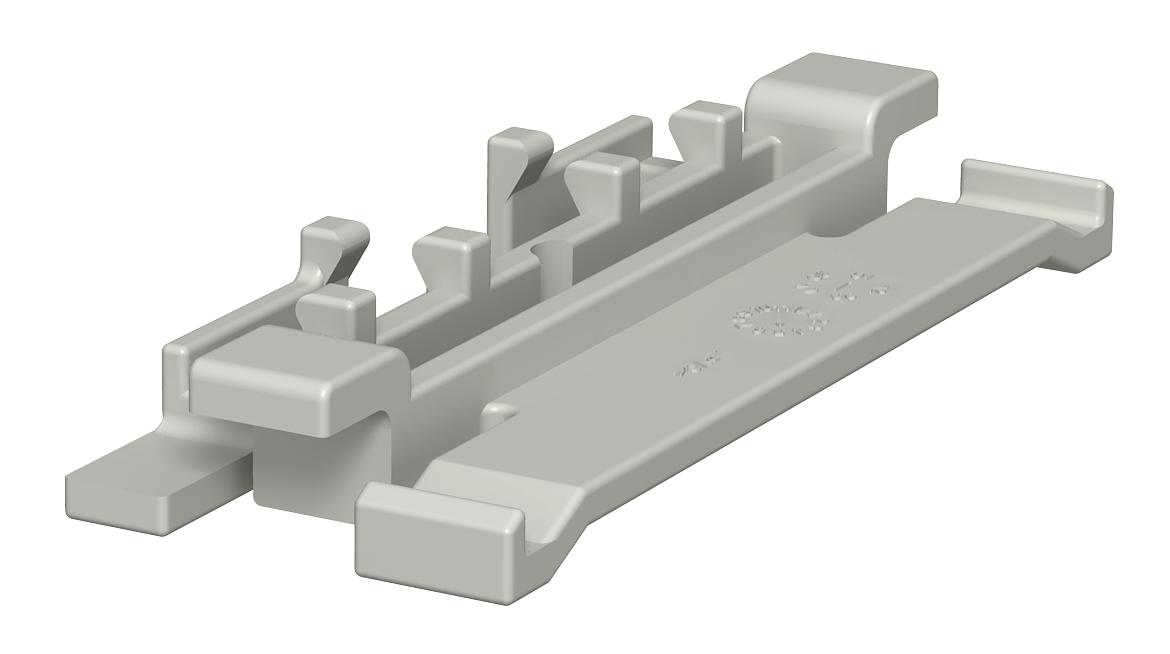

Cover clip for WDK trunking, trunking width 90 mm

Item no. 6023509 | EAN 4012196026111

6023509 / 2370 90
75.7 mm
28.8 mm
Product description

Product description

Cover clip for better and easier laying of lines in the WDK trunking.
The cover clip is locked on one side and moved forward. This provides a 30° opening, meaning that cable routing is very simple.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA Konformitätserklärung
Technical data

Technical data

Colour Light grey; RAL 7035
Cover width 90 mm
Dimension 90mm
Fastening type Lockable
Halogen-free no
Maintain electrical functions no
Material Polyvinylchloride
Permitted temperature range, max. 60 °C
Permitted temperature range, min. -5 °C
Protection rating IP30
Protection rating IK code IK04
Self-extinguishing yes
With equipotential bonding no

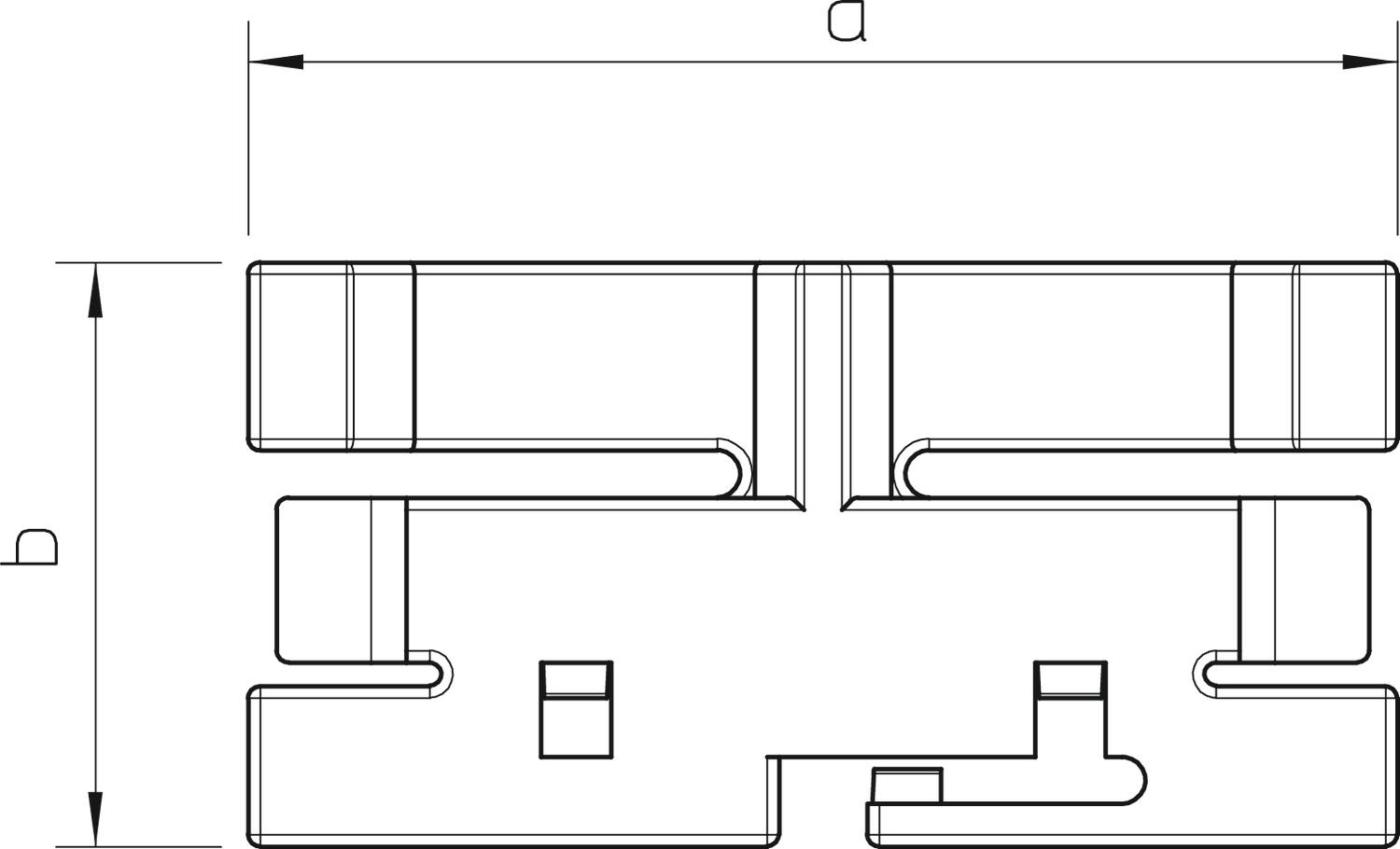

Dimensions

Dimension a 75,7 mm
Dimension b 28,8 mm
Length 28,8 mm
Width 75,7 mm
All types

All types

Types Dimension a Dimension b Item no. Quantity SSU
2370 90 75.7 mm 28.8 mm 6023509
20 piece
Downloads

Download

Download

Declaration of conformity 2370 90 / 6023509 , 0.13MB , pdf
Download
UK Declaration of Conformity 2370 90 / 6023509 , 0.14MB , pdf
Download
REACH Declaration of conformity 2370 90 / 6023509 , 0.12MB , pdf
Download
RoHS Declaration of conformity 2370 90 / 6023509 , 0.12MB , pdf
Download

Download
Download

No invitation to tender text is available for this product.
