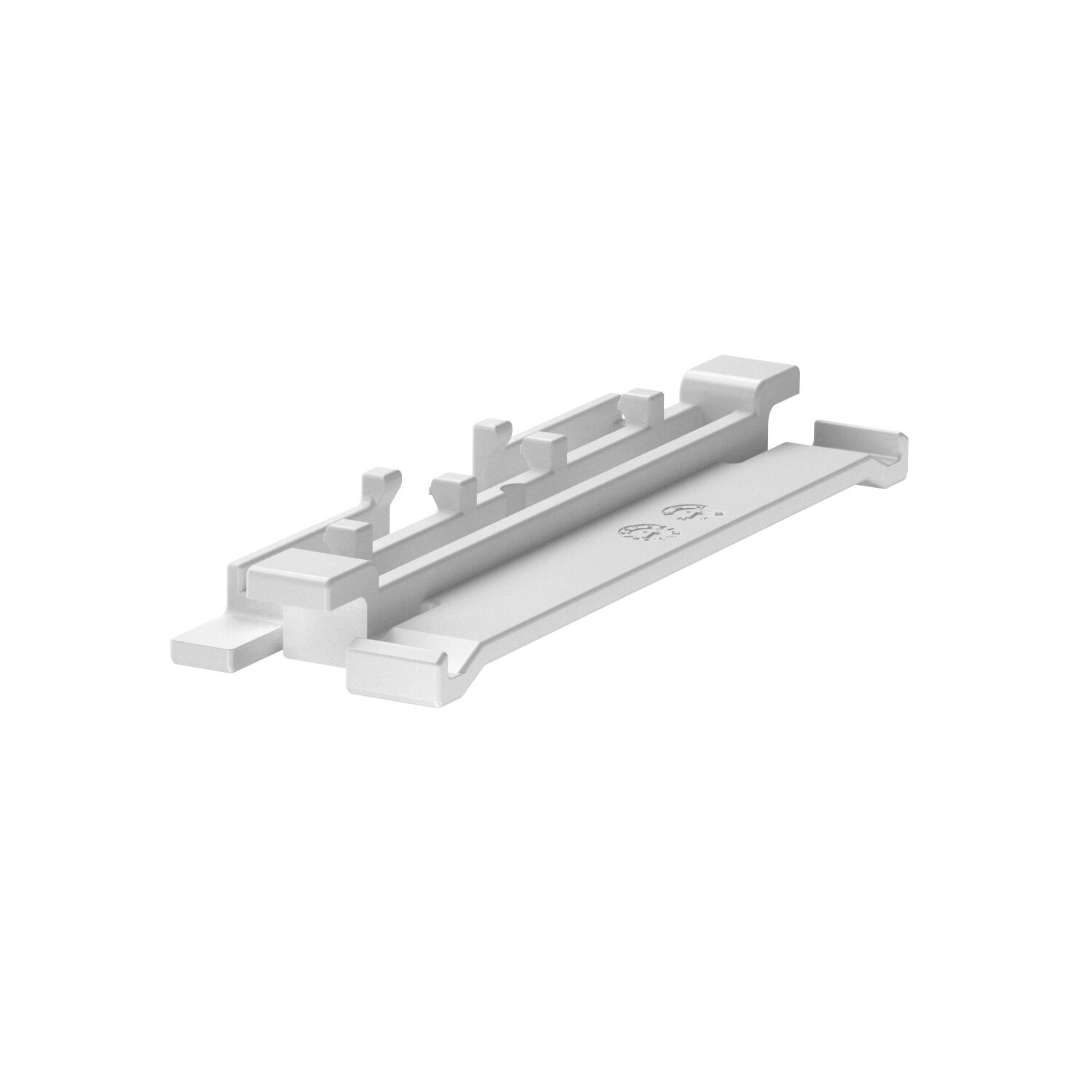

Cover clip for WDKH trunking, trunking width 110 mm
Item no. 6176128 | EAN 4012195817901
- Product description
-
Product description
Cover clip for better and easier laying of lines in the WDKH trunking.
The cover clip is locked on one side and moved forward. This provides a 30° opening, meaning that cable routing is very simple.
-
- Technical data
-
Technical data
Colour Pure white; RAL 9010 Cover width 110 mm Dimension 96x29 Fastening type Lockable Halogen-free yes Maintain electrical functions no Material Polycarbonate/Acrylnitrile-butadiene-styrene Permitted temperature range, max. 90 °C Permitted temperature range, min. -5 °C Protection rating IP30 Protection rating IK code IK07. Self-extinguishing yes With equipotential bonding no Dimensions

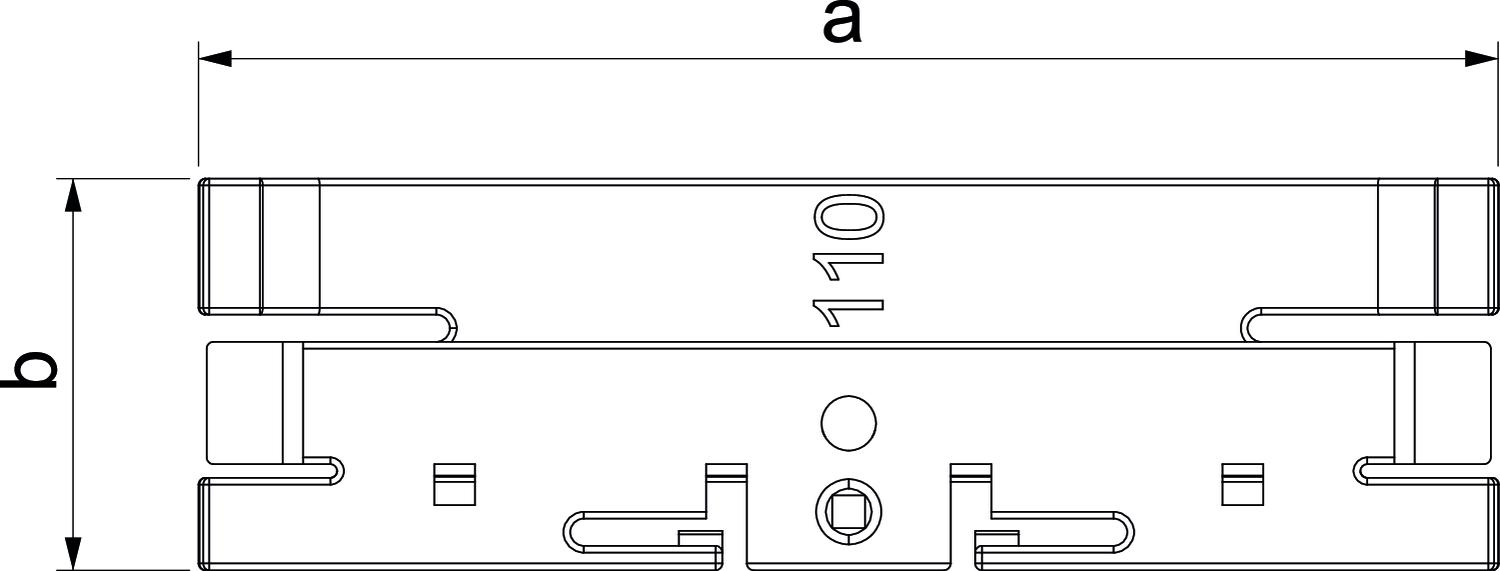

Dimension a 95,7 mm Dimension b 28,8 mm Height 10,5 mm Length 28,8 mm Width 95,7 mm - All types
