Cover clip for WDKH trunking, trunking width 90 mm 75.7 | 28.8
morepic-1 morepic-2

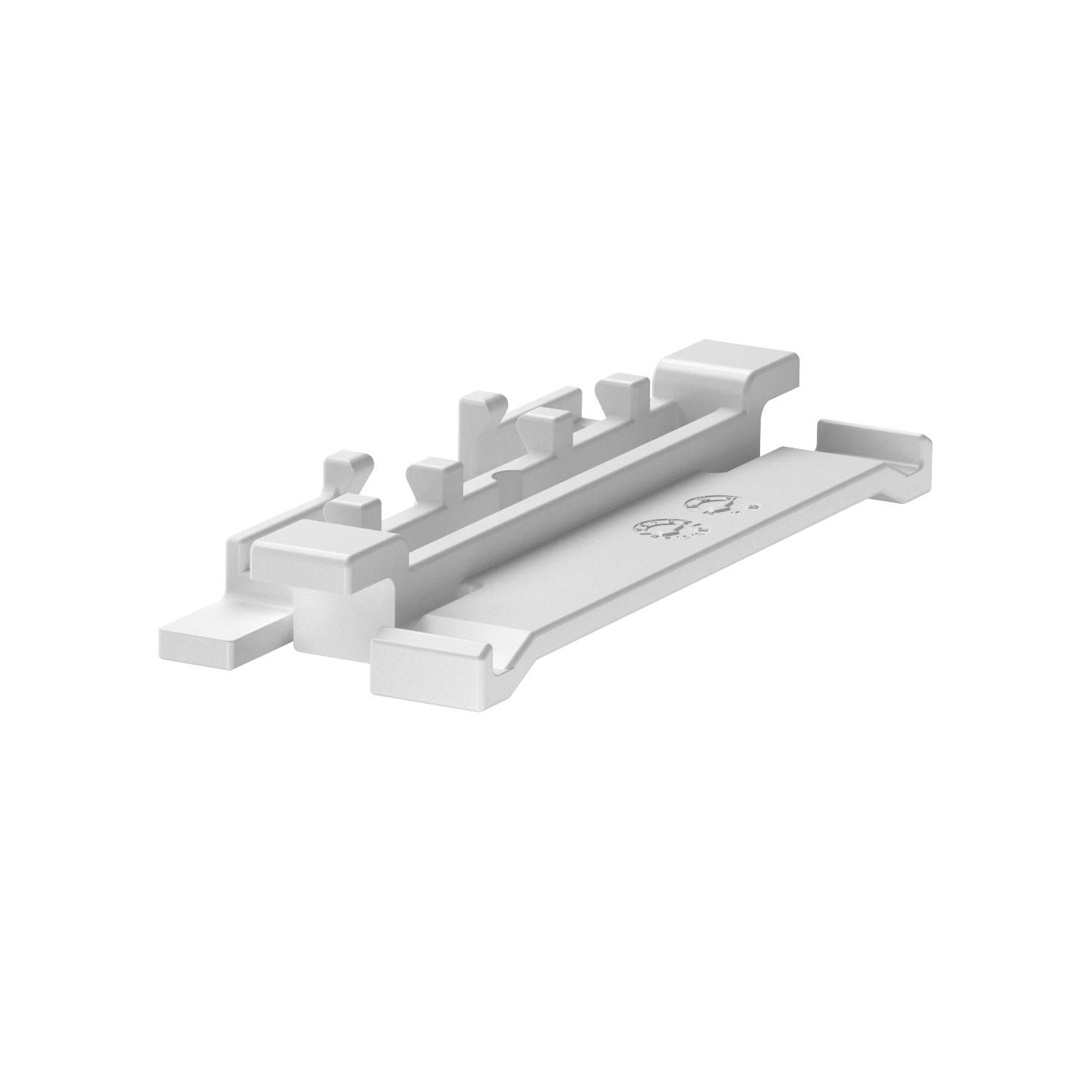

Cover clip for WDKH trunking, trunking width 90 mm

Item no. 6176125 | EAN 4012195817895

6176125 / OTK H90
75.7 mm
28.8 mm
Product description

Product description

Cover clip for better and easier laying of lines in the WDKH trunking.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA Konformitätserklärung
Technical data

Technical data

Colour Pure white; RAL 9010
Cover width 90 mm
Dimension 75,5x29
Fastening type Lockable
Halogen-free yes
Maintain electrical functions no
Material Polycarbonate/Acrylnitrile-butadiene-styrene
Permitted temperature range, max. 90 °C
Permitted temperature range, min. -5 °C
Protection rating IP30
Protection rating IK code IK07.
Self-extinguishing no
With equipotential bonding no

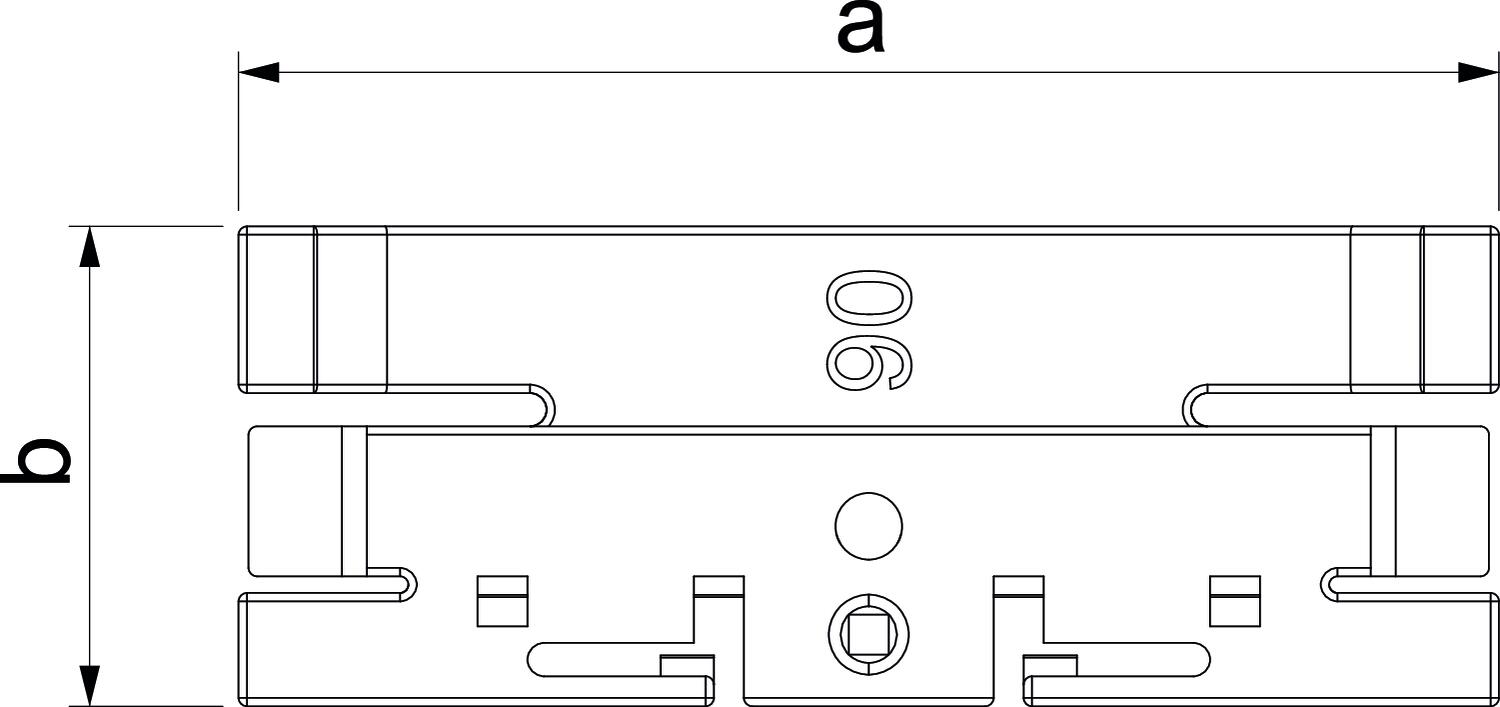

Dimensions

Dimension a 75,7 mm
Dimension b 28,8 mm
Height 10,5 mm
Length 28,8 mm
Width 75,7 mm
All types

All types

Types Dimension a Dimension b Item no. Quantity SSU
OTK H90 75.7 mm 28.8 mm 6176125
10 piece
Downloads

Download

Download

Declaration of conformity OTK H90 / 6176125 , 0.13MB , pdf
Download
UK Declaration of Conformity OTK H90 / 6176125 , 0.14MB , pdf
Download

Download
Download

No invitation to tender text is available for this product.
