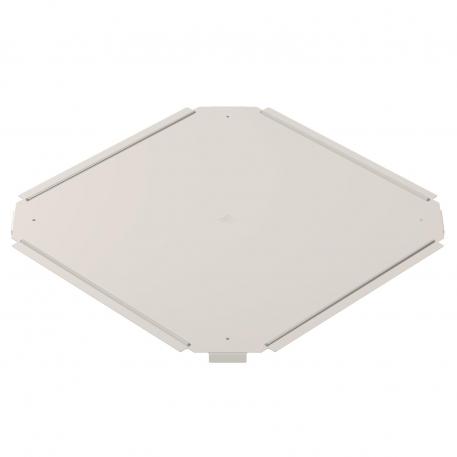

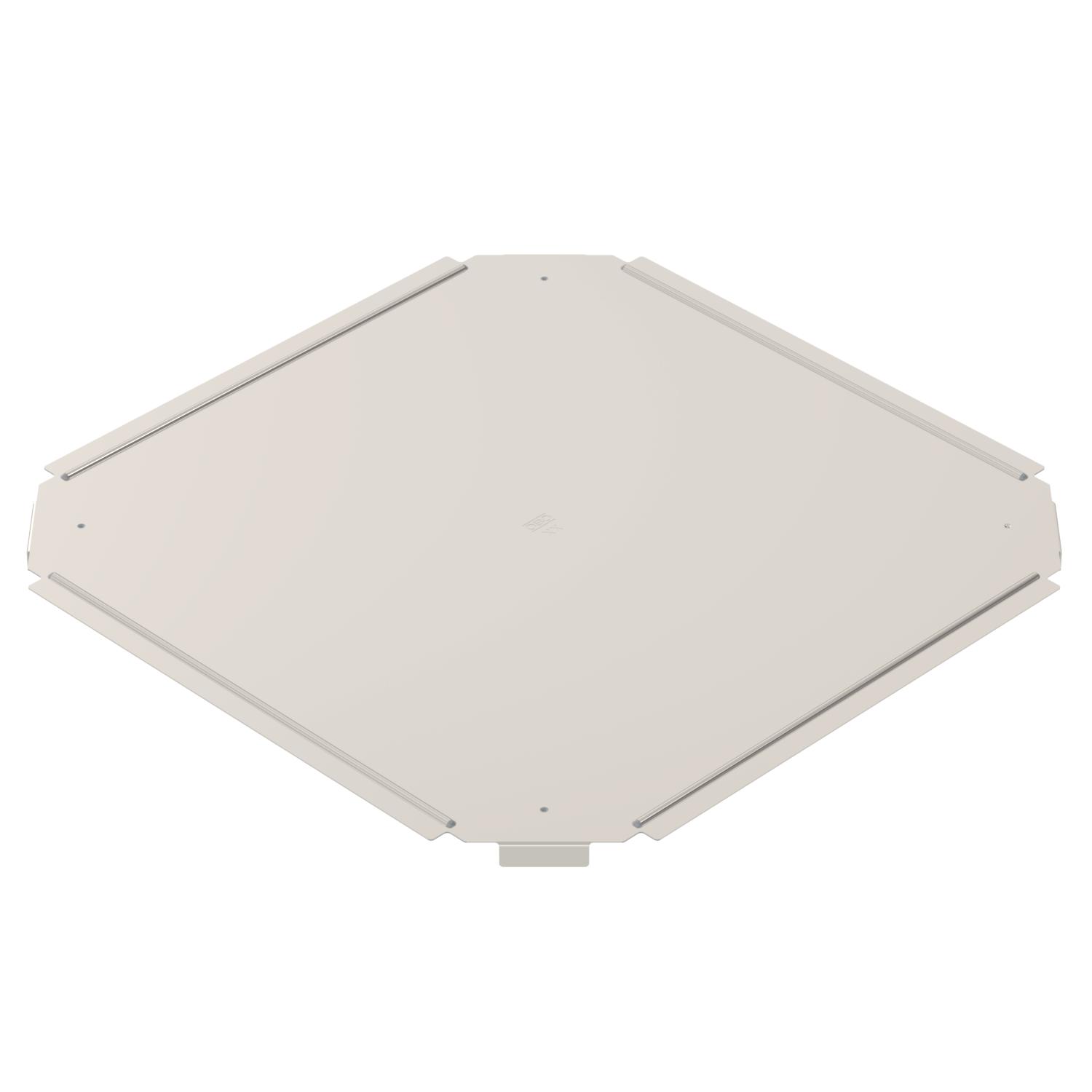

Cover, cross-over 300 A4

Item no. 7027884 | EAN 4012197408671

Item no. / Types

Width

Plate thickness

Product description

Product description

Cover for cross-over fitting for lockable and screw-on cable trays in indoor and outdoor areas, to protect cables against damage and soiling. Fastening through attachment of the section cover. Suitable for all side heights.

Technical data

Technical data

Colour	stainless steel

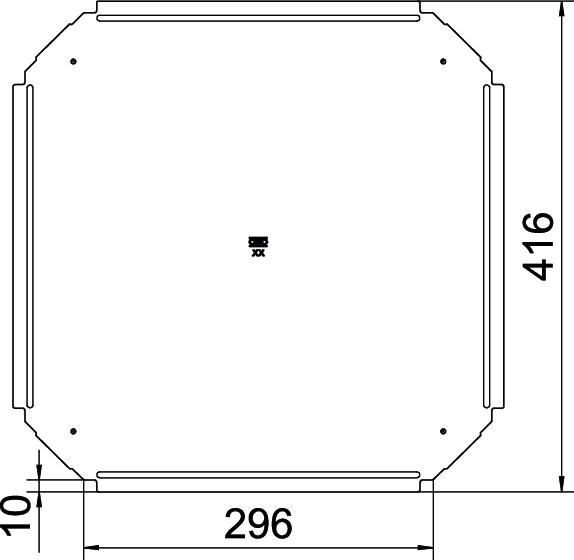

Dimension	B300mm
Dimension B	300 mm
Fastening type	On top
Material	Stainless steel
Permitted temperature range, max.	120 °C
Permitted temperature range, min.	-20 °C

Plate thickness	0,75 mm
Rustproof steel, pickled	no
Suitable for cable ladder	no
Suitable for cable tray	yes
Surface	Bright, treated
Width	300 mm

All types

All types

Types	Width	Plate thickness	Item no.	Quantity	SSU
RKD 100 A4	100 mm	0.75 mm	7027880	piece	1 piece
RKD 200 A4	200 mm	0.75 mm	7027882	piece	1 piece
RKD 300 A4	300 mm	0.75 mm	7027884	piece	1 piece
RKD 400 A4	400 mm	1 mm	7027886	piece	1 piece
RKD 500 A4	500 mm	1 mm	7027888	piece	1 piece
RKD 600 A4	600 mm	1 mm	7027890	piece	1 piece
