- Product description
-

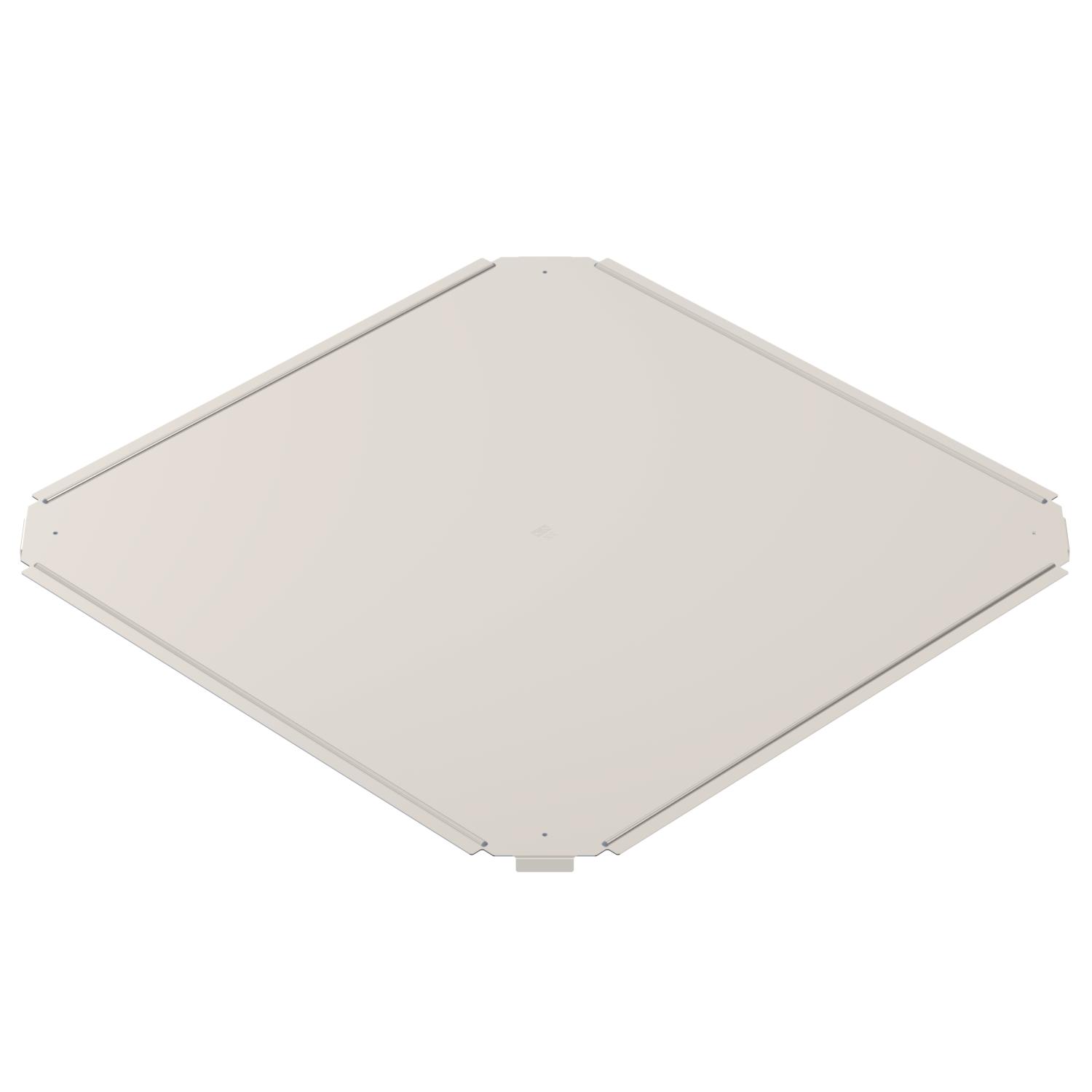

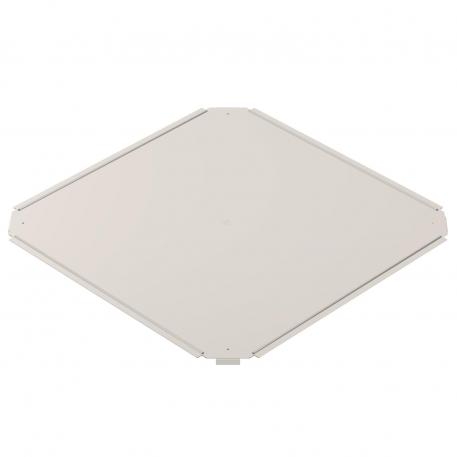

Product descriptionCover for cross-over fitting for lockable and screw-on cable trays in indoor and outdoor areas, to protect cables against damage and soiling. Fastening through attachment of the section cover. Suitable for all side heights.
- Technical data
-
Technical data
Colour stainless steel Dimension B500mm Dimension B 500 mm Fastening type On top Material Stainless steel Permitted temperature range, max. 120 °C Permitted temperature range, min. -20 °C Plate thickness 1 mm Rustproof steel, pickled no Suitable for cable ladder no Suitable for cable tray yes Surface Bright, treated Width 500 mm - All types
- Downloads
-
Data sheet RKD 500 A4 / 7027888 , 0.18MB , pdfEU declaration of conformity RKD 500 A4 / 7027888 , 0.10MB , pdfUK Declaration of Conformity RKD 500 A4 / 7027888 , 0.14MB , pdfREACH Declaration of conformity RKD 500 A4 / 7027888 , 0.12MB , pdfRoHS Declaration of conformity RKD 500 A4 / 7027888 , 0.13MB , pdfMounting instructions Rastbare Kabelrinnensysteme Magic , 11.60MB , pdfMounting instructions Schraubbare Kabelrinnen mit Formteilen zum Schrauben und Klemmen , 5.42MB , pdfMounting instructions General information on the mounting , 2.61MB , pdf
