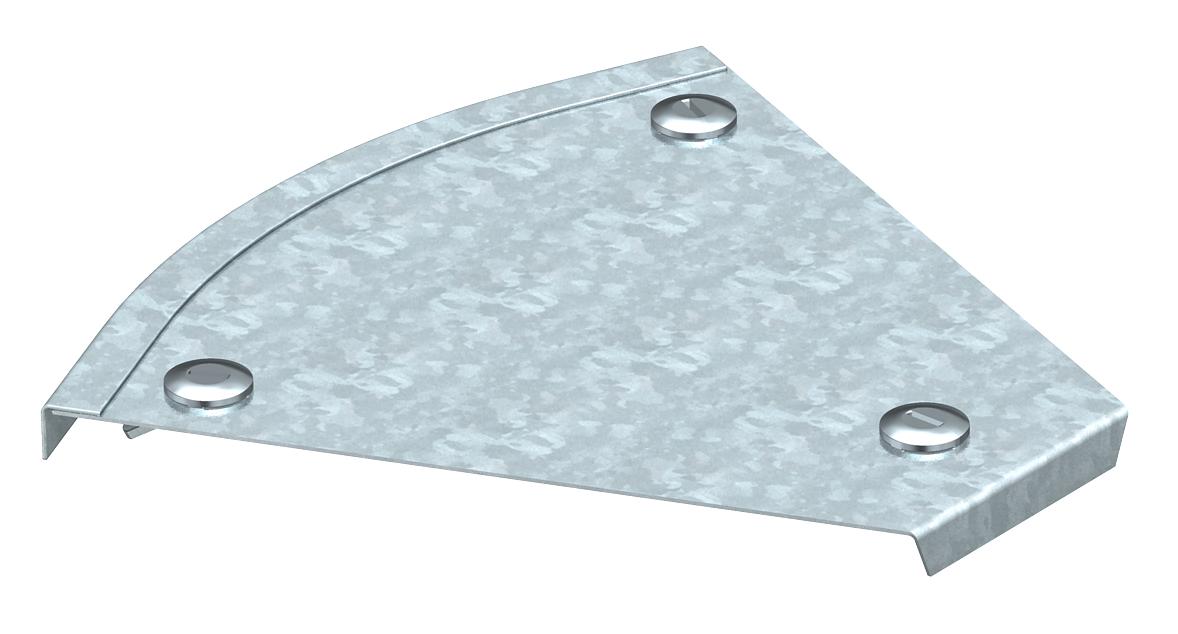

Cover for 45° bend FS
Item no. 7128835 | EAN 4012196249916
- Product description
-
Product descriptionCover for 45° bend with pre-mounted turn buckle.
-
- Technical data
-
Technical data

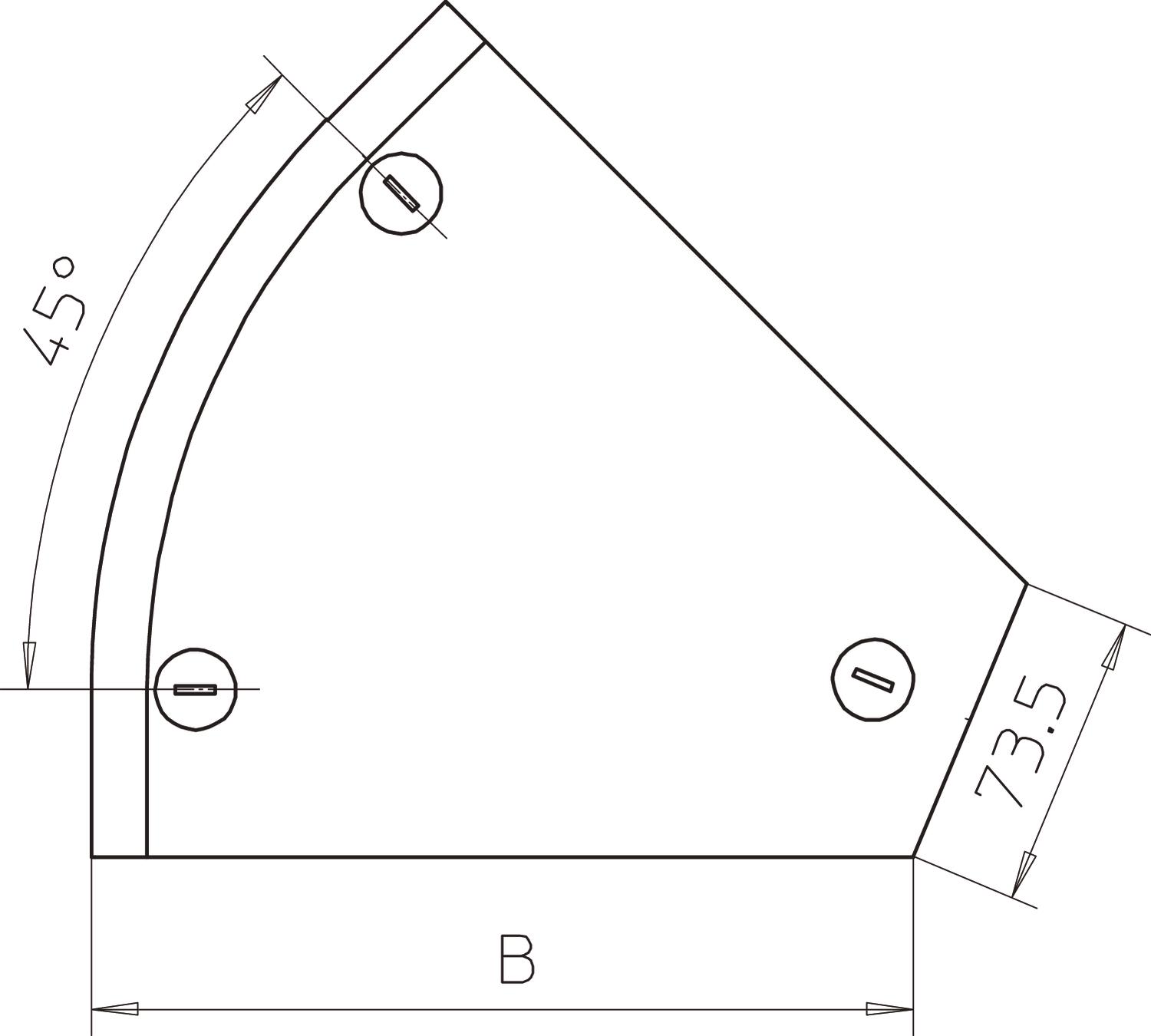

Bend (angle) 45° Change of direction Horizontal Colour zinc Dimension B200mm Dimension B 200 mm Dimension H 15 mm Fastening type Sash lock Height 35 mm Hinged no Maintain electrical functions no Material Steel Number of turn buckles 3 St. Plate thickness 1 mm Plate thickness 0,04 in Rustproof steel, pickled no Suitable for cable ladder no Suitable for cable tray yes Suitable for mesh cable tray no Surface Strip galvanized Width 200 mm Width 8 in - All types
- Downloads
-
Data sheet DFB 45 200 FS / 7128835 , 0.18MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfEU declaration of conformity DFB 45 200 FS / 7128835 , 0.10MB , pdfREACH Declaration of conformity DFB 45 200 FS / 7128835 , 0.12MB , pdfRoHS Declaration of conformity DFB 45 200 FS / 7128835 , 0.12MB , pdfMounting instructions General information on the mounting , 2.61MB , pdf
