Note: This article is discontinued.
You can find the current article here: 6036976 / Cover, 90° bend A2

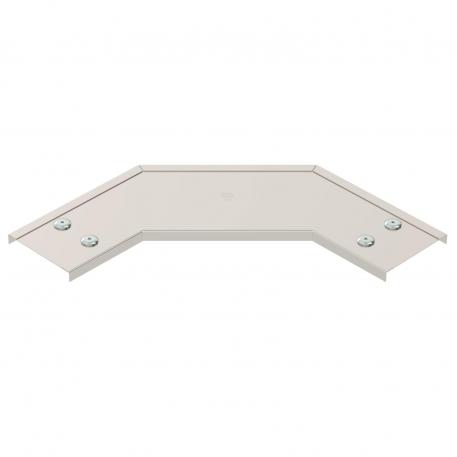

Cover for 90° bend A2
Item no. 7134924 | EAN 4012196255016
- Product description
-
Product descriptionCover for 90° bend with pre-mounted turn buckles.
-
- Technical data
-
Technical data

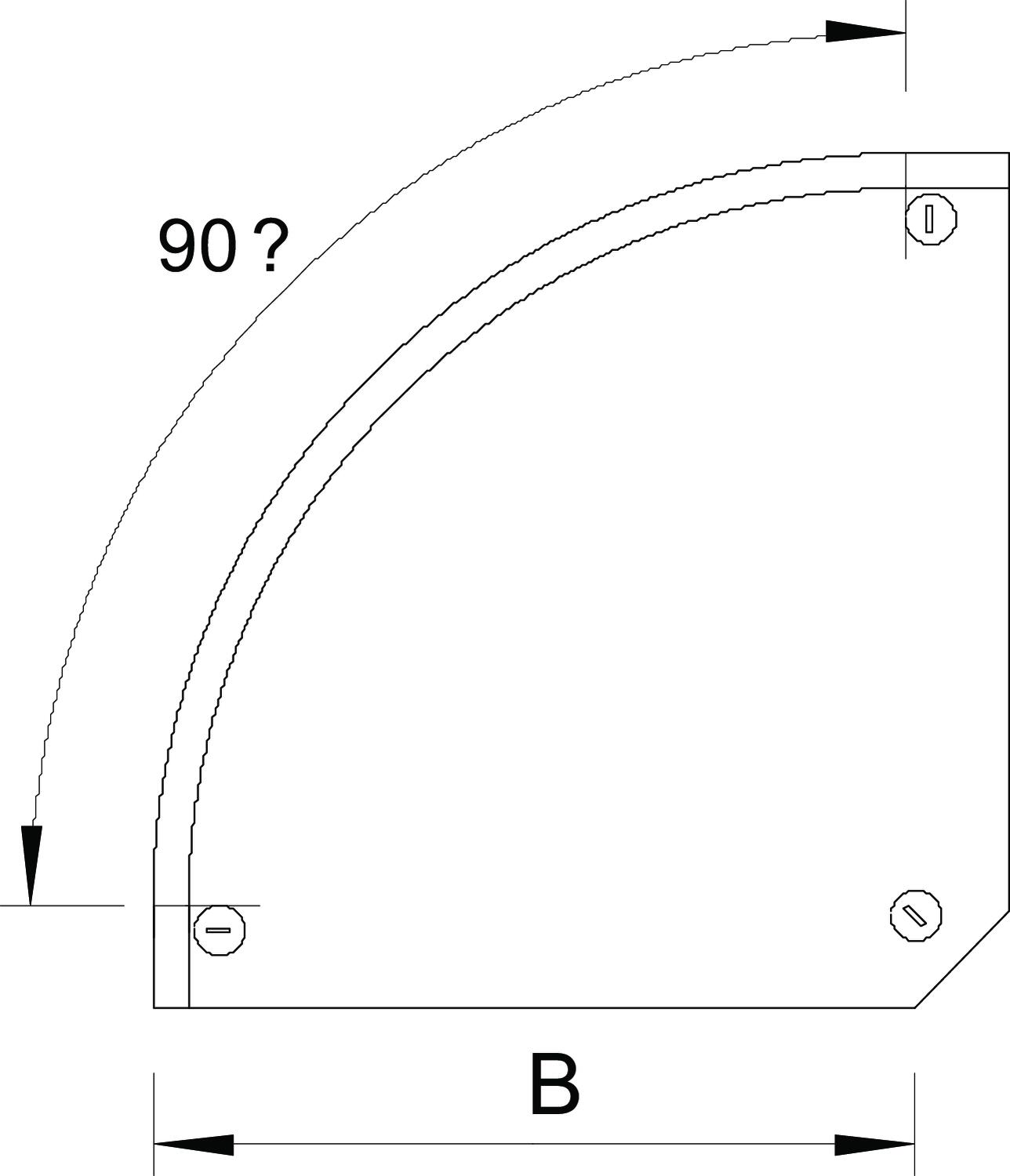

Bend (angle) 90° Change of direction Horizontal Dimension B300mm Dimension B 300 mm Dimension H 15 mm Fastening type Sash lock Height 35 mm Hinged no Maintain electrical functions no Material Stainless steel Number of turn buckles 3 St. Plate thickness 1 mm Plate thickness 0,04 in Rustproof steel, pickled no Suitable for cable ladder yes Suitable for cable tray yes Suitable for mesh cable tray no Surface Bright, treated Width 12 in Width 300 mm - All types
- Downloads
-
Data sheet DFB 90 300 A2 / 7134924 , 0.18MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfEU declaration of conformity DFB 90 300 A2 / 7134924 , 0.10MB , pdfREACH Declaration of conformity DFB 90 300 A2 / 7134924 , 0.12MB , pdfRoHS Declaration of conformity DFB 90 300 A2 / 7134924 , 0.12MB , pdfMounting instructions General information on the mounting , 2.61MB , pdf
