Cover for 90° bend FS 200 | 1
morepic-1 morepic-2 video-1

Cover for 90° bend FS

Item no. 6231462 | EAN 4012196503711

1 mm
Product description

Product description

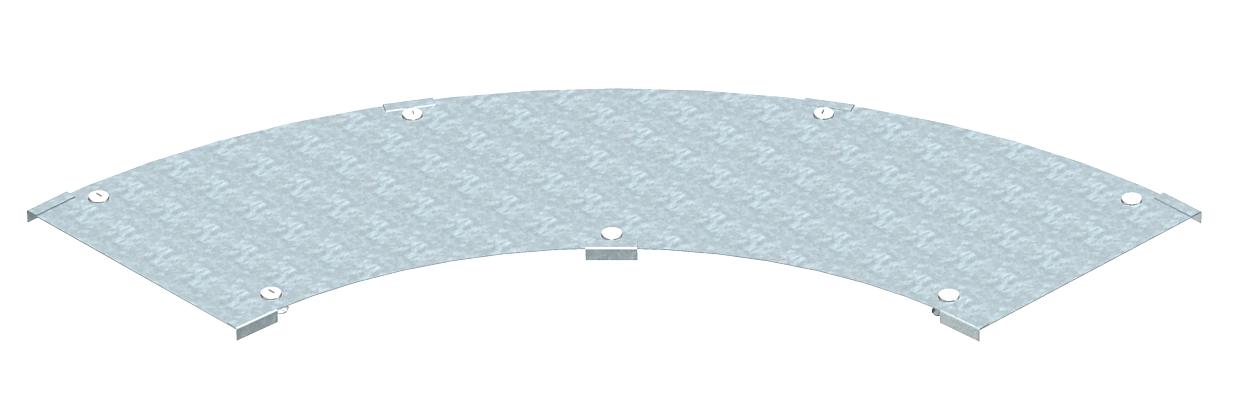

Cover for wide span 90° bend with pre-mounted turn buckles.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Wide span cable tray, side height, 110 mm
  • Wide span cable tray, side height, 160 mm
  • Wide span cable ladder, side height 110 mm
  • Wide span cable ladder, side height 160 mm
Technical data

Technical data

Bend (angle) 90°

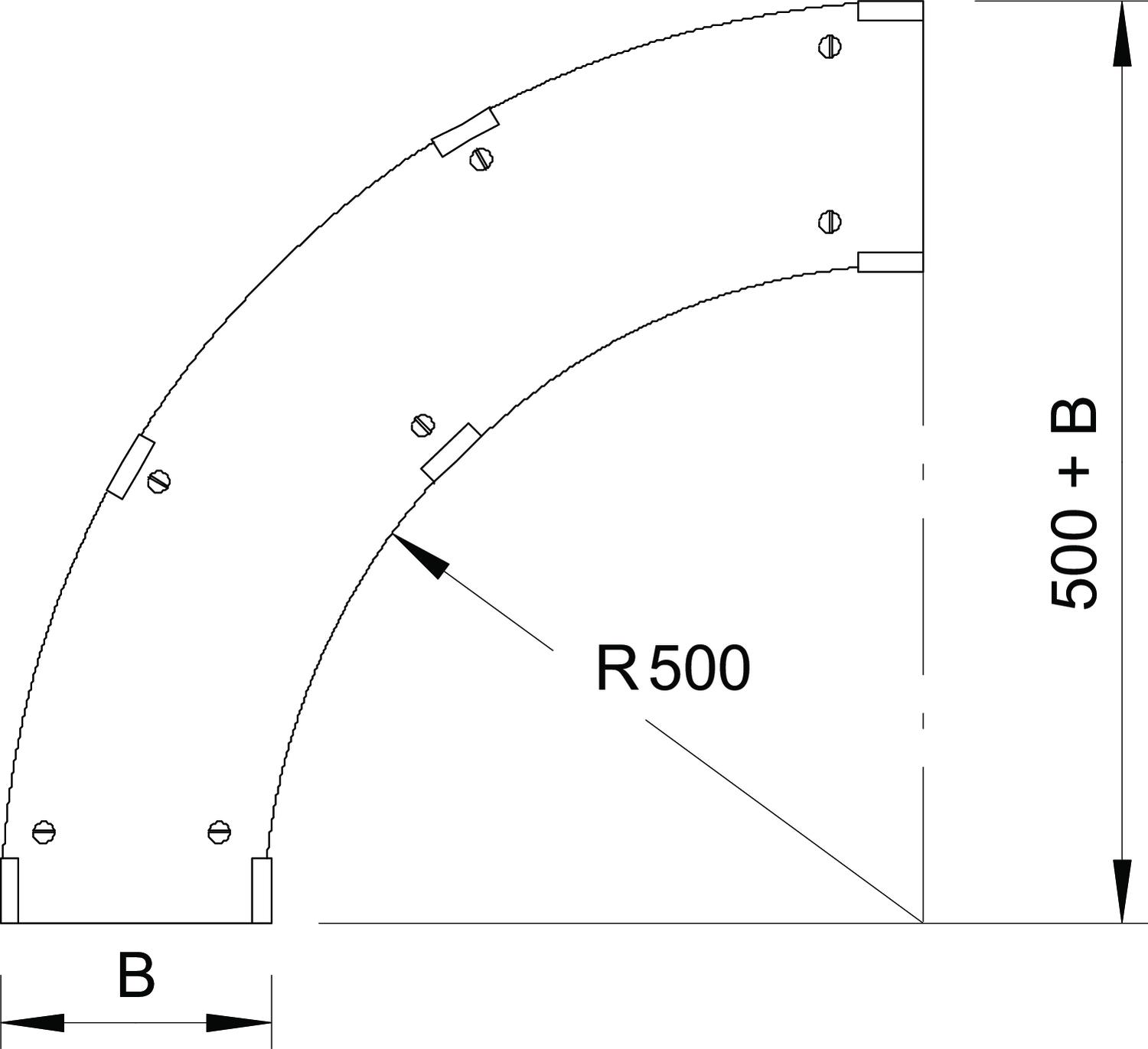

Dimension B200mm
Dimension B 200 mm
Dimension H 15 mm
Fastening type Sash lock
Height 110 mm
Material Steel
Number of turn buckles 7 St.
Plate thickness 1 mm
Rustproof steel, pickled no
Suitable for cable ladder yes
Suitable for cable tray yes
Suitable for mesh cable tray no
Surface Strip galvanized
Width 200 mm
All types

All types

Types Width Plate thickness Item no. Quantity SSU
WDBRL 90 20 FS 200 mm 1 mm 6231462
1 piece
WDBRL 90 30 FS 300 mm 1 mm 6231470
1 piece
WDBRL 90 40 FS 400 mm 1 mm 6231489
1 piece
WDBRL 90 50 FS 500 mm 1 mm 6231497
1 piece
WDBRL 90 60 FS 600 mm 1 mm 6231500
1 piece
