Cover for 90° bend FT 1200 | 1.25

morepic-1

morepic-2

Cover for 90° bend FT

Item no. 6226032 | EAN 4012196534777

Item no. / Types

Width

Plate thickness

Product description

Product description

Cover with turn buckles for covering 90° cable ladder bends with welded rungs.

Technical data

Technical data

Bend (angle)	90°
Change of direction	Horizontal
Dimension	B1200
Dimension B	1200 mm
Fastening type	Sash lock
Hinged	no
Maintain electrical functions	no
Material	Steel

Plate thickness	1,25 mm
Rustproof steel, pickled	no
Suitable for cable ladder	yes
Suitable for cable tray	no
Suitable for mesh cable tray	no
Surface	Hot-dip galvanised
Width	1200 mm

All types

All types

Types	Width	Plate thickness	Item no.	Quantity	SSU
LBD 90 200 R3 FT	200 mm	1 mm	6226010	piece	1 piece
LBD 90 300 R3 FT	300 mm	1 mm	6226012	piece	1 piece
LBD 90 400 R3 FT	400 mm	1 mm	6226014	piece	1 piece
LBD 90 450 R3 FT	450 mm	1.25 mm	6226016	piece	1 piece
LBD 90 500 R3 FT	500 mm	1.25 mm	6226018	piece	1 piece
LBD 90 600 R3 FT	600 mm	1.25 mm	6226020	piece	1 piece
LBD 90 750 R3 FT	750 mm	1.25 mm	6226022	piece	1 piece
LBD 90 800 R3 FT	800 mm	1.25 mm	6226024	piece	1 piece
LBD 90 900 R3 FT	900 mm	1.25 mm	6226026	piece	1 piece
LBD 90 1000 R3FT	1000 mm	1.25 mm	6226028	piece	1 piece
LBD 90 1200 R3FT	1200 mm	1.25 mm	6226032	piece	1 piece

Downloads

Data sheet LBD 90 1200 R3FT / 6226032 , 0.22MB , pdf

Guide KTS Kabeltragsysteme , 1.61MB , pdf

Brochure Welded cable ladder system , 2.10MB , pdf

Catalogue Kabeltragsysteme , 45.23MB , pdf

Declaration of conformity LBD 90 1200 R3FT / 6226032 , 0.10MB , pdf

UK Declaration of Conformity LBD 90 1200 R3FT / 6226032 , 0.09MB , pdf

Download

Mounting instructions General information on the mounting , 2.61MB , pdf

Product graphic LBD 90 1200 R3FT / 6226032, 53.82 kB, jpg

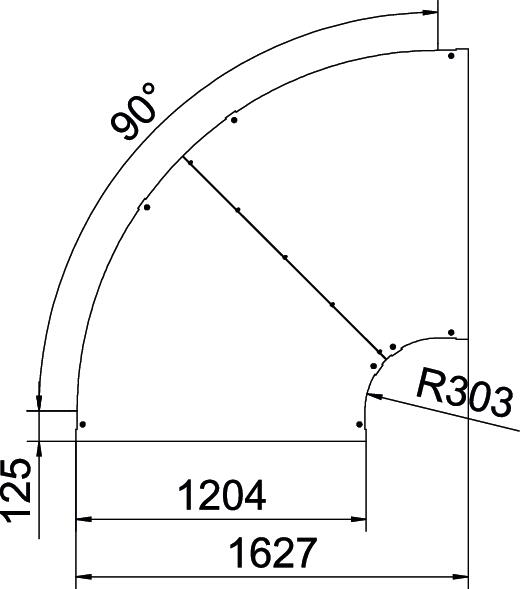

Scale drawing LBD 90 1200 R3FT / 6226032, 64.08 kB, jpg

LBD 90 1200 R3FT / 6226032

6226032_KSTP1.STP, 588.24 kB
