Cover for 90° bend FT 200 | 1
morepic-1 morepic-2 video-1 video-2

Cover for 90° bend FT

Item no. 6226010 | EAN 4012196534654

Product description

Product description

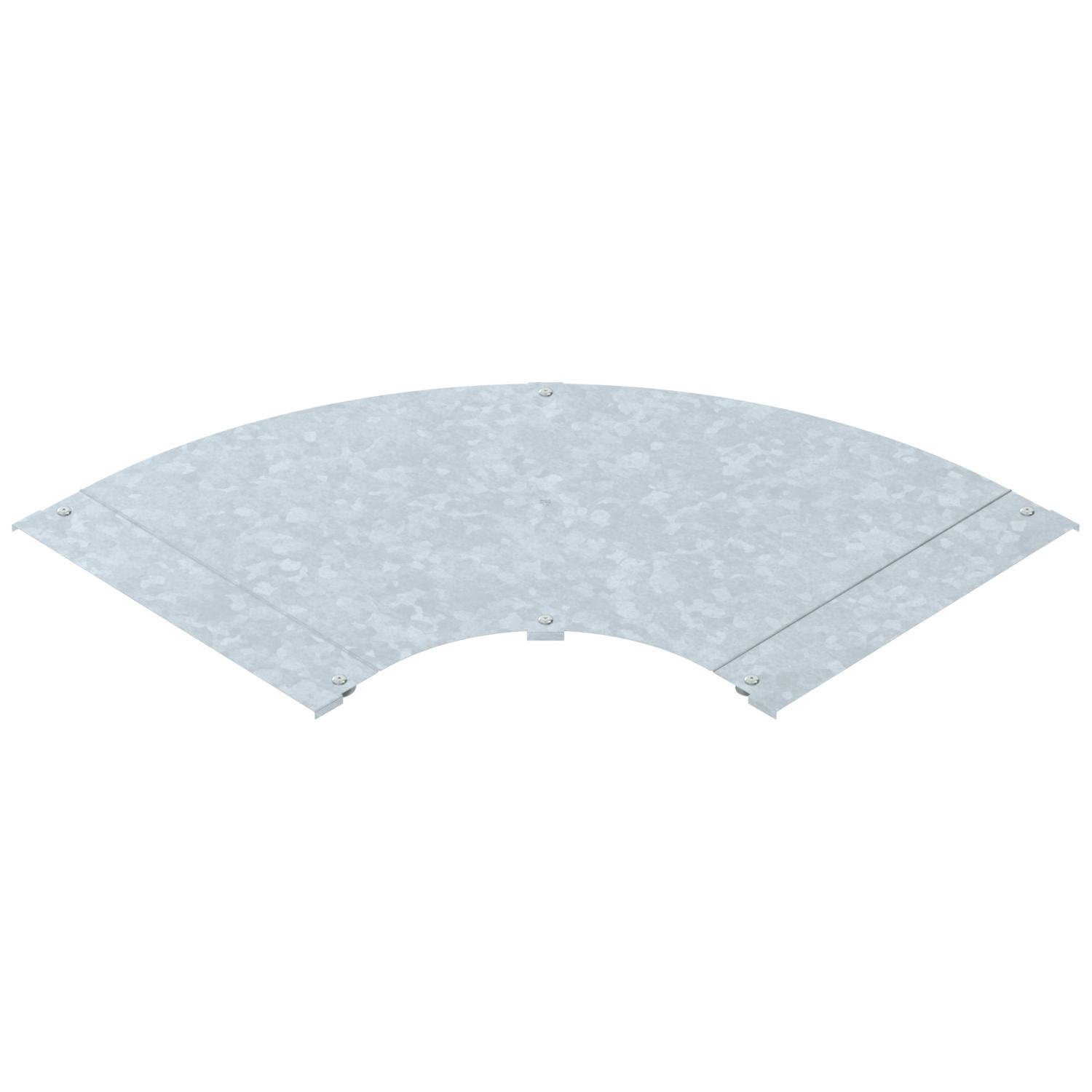

Cover with turn buckles for covering 90° cable ladder bends with welded rungs.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

Bend (angle) 90°
Change of direction Horizontal
Dimension B200
Dimension B 200 mm
Fastening type Sash lock
Hinged no
Maintain electrical functions no
Material Steel
Plate thickness 1 mm
Rustproof steel, pickled no
Suitable for cable ladder yes
Suitable for cable tray no
Suitable for mesh cable tray no
Surface Hot-dip galvanised
Width 200 mm
All types

All types

Types Width Plate thickness Item no. Quantity SSU
LBD 90 200 R3 FT 200 mm 1 mm 6226010
1 piece
LBD 90 300 R3 FT 300 mm 1 mm 6226012
1 piece
LBD 90 400 R3 FT 400 mm 1 mm 6226014
1 piece
LBD 90 450 R3 FT 450 mm 1.25 mm 6226016
1 piece
LBD 90 500 R3 FT 500 mm 1.25 mm 6226018
1 piece
LBD 90 600 R3 FT 600 mm 1.25 mm 6226020
1 piece
LBD 90 750 R3 FT 750 mm 1.25 mm 6226022
1 piece
LBD 90 800 R3 FT 800 mm 1.25 mm 6226024
1 piece
LBD 90 900 R3 FT 900 mm 1.25 mm 6226026
1 piece
LBD 90 1000 R3FT 1000 mm 1.25 mm 6226028
1 piece
LBD 90 1200 R3FT 1200 mm 1.25 mm 6226032
1 piece
