Cover for 90° bend FT

Item no. 6226014 | EAN 4012196534678

Item no. / Types

Width

Plate thickness

Product description

Product description

Cover with turn buckles for covering 90° cable ladder bends with welded rungs.

Technical data

Technical data

Bend (angle)	90°
Change of direction	Horizontal
Dimension	B400
Dimension B	400 mm
Fastening type	Sash lock
Hinged	no
Maintain electrical functions	no
Material	Steel

Plate thickness	1 mm
Rustproof steel, pickled	no
Suitable for cable ladder	yes
Suitable for cable tray	no
Suitable for mesh cable tray	no
Surface	Hot-dip galvanised
Width	400 mm

All types

All types

Types	Width	Plate thickness	Item no.	Quantity	SSU
LBD 90 200 R3 FT	200 mm	1 mm	6226010	piece	1 piece
LBD 90 300 R3 FT	300 mm	1 mm	6226012	piece	1 piece
LBD 90 400 R3 FT	400 mm	1 mm	6226014	piece	1 piece
LBD 90 450 R3 FT	450 mm	1.25 mm	6226016	piece	1 piece
LBD 90 500 R3 FT	500 mm	1.25 mm	6226018	piece	1 piece
LBD 90 600 R3 FT	600 mm	1.25 mm	6226020	piece	1 piece
LBD 90 750 R3 FT	750 mm	1.25 mm	6226022	piece	1 piece
LBD 90 800 R3 FT	800 mm	1.25 mm	6226024	piece	1 piece
LBD 90 900 R3 FT	900 mm	1.25 mm	6226026	piece	1 piece
LBD 90 1000 R3FT	1000 mm	1.25 mm	6226028	piece	1 piece
LBD 90 1200 R3FT	1200 mm	1.25 mm	6226032	piece	1 piece

Downloads

Data sheet LBD 90 400 R3 FT / 6226014 , 0.21MB , pdf

Guide KTS Kabeltragsysteme , 1.61MB , pdf

Brochure Welded cable ladder system , 2.10MB , pdf

Catalogue Kabeltragsysteme , 45.23MB , pdf

Declaration of conformity LBD 90 400 R3 FT / 6226014 , 0.10MB , pdf

UK Declaration of Conformity LBD 90 400 R3 FT / 6226014 , 0.09MB , pdf

Download

Mounting instructions General information on the mounting , 2.61MB , pdf

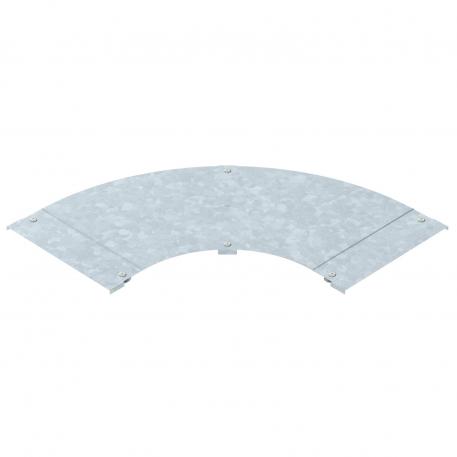

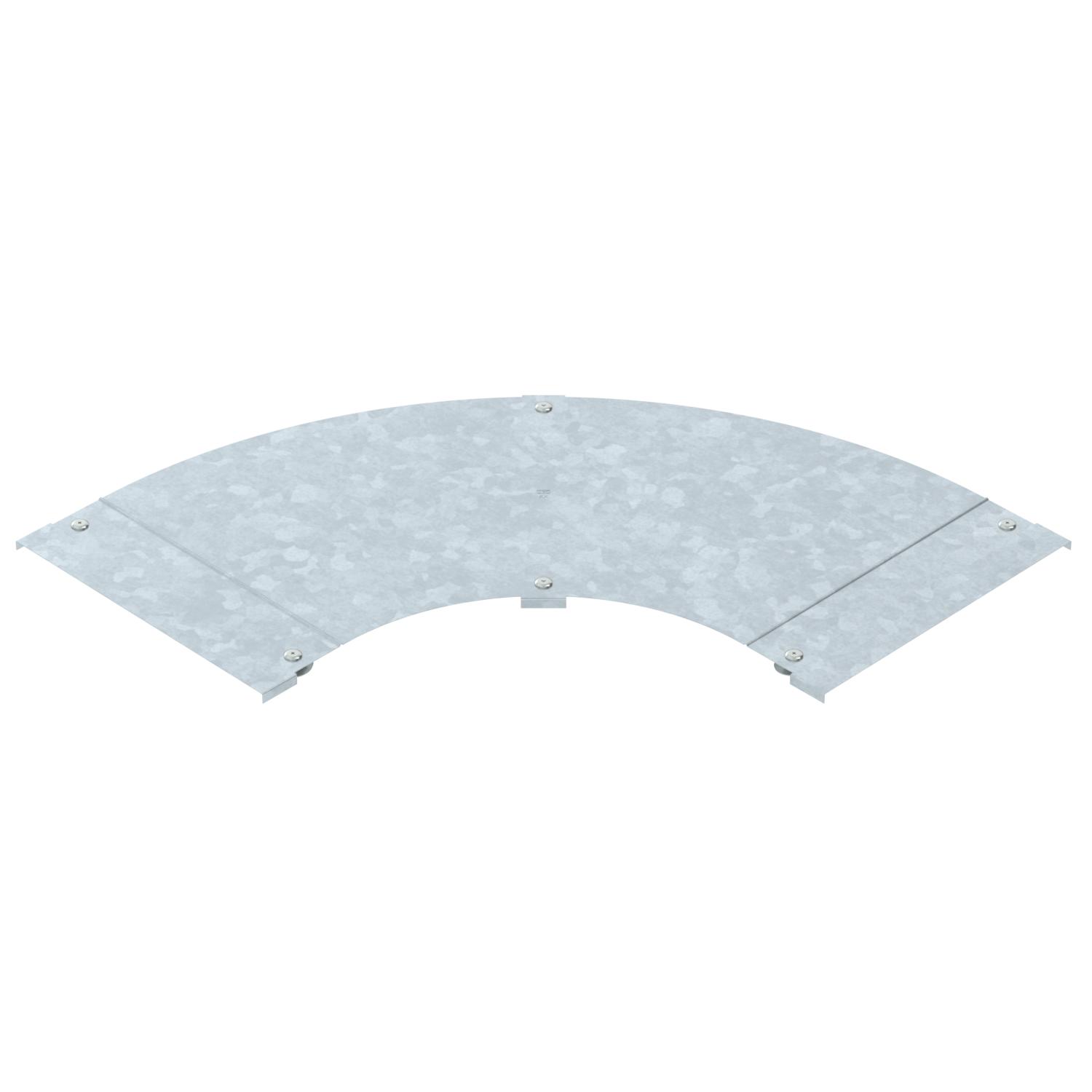

Product graphic LBD 90 400 R3 FT / 6226014, 47.38 kB, jpg

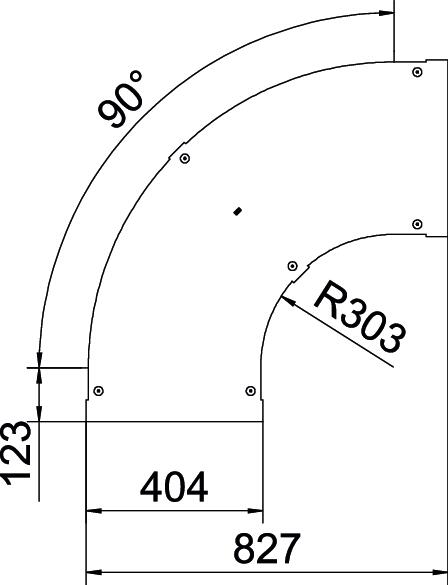

Scale drawing LBD 90 400 R3 FT / 6226014, 64.08 kB, jpg

LBD 90 400 R3 FT / 6226014

6226014_KSTP1.STP, 526.29 kB
