Cover for 90° vertical bend 60, falling, A4 100 | 0.75

morepic-1

morepic-2

Cover for 90° vertical bend 60, falling, A4

Item no. 7130972 | EAN 4012195886310

Item no. / Types

Width

Plate thickness	0.75 mm

Product description

Product description

Cover for falling vertical bends of side height 60 mm.

Technical data

Technical data

Bend (angle)	90°
Change of direction	Vertical, falling
Colour	stainless steel
Dimension	B100mm
Dimension B	100 mm
Fastening type	Sash lock
Height	60 mm
Hinged	no
Maintain electrical functions	no
Material	Stainless steel

Plate thickness	0,75 mm
Plate thickness	0,03 in
Rustproof steel, pickled	no
Suitable for cable ladder	no
Suitable for cable tray	yes
Suitable for mesh cable tray	no
Surface	Bright, treated
Width	4 in
Width	100 mm

All types

All types

Types	Width	Plate thickness	Item no.	Quantity	SSU
DBV 60 100 F A4	100 mm	0.75 mm	7130972	piece	1 piece
DBV 60 200 F A4	200 mm	0.75 mm	7130974	piece	1 piece
DBV 60 300 F A4	300 mm	0.75 mm	7130976	piece	1 piece
DBV 60 400 F A4	400 mm	0.75 mm	7130978	piece	1 piece
DBV 60 500 F A4	500 mm	0.75 mm	7130980	piece	1 piece
DBV 60 600 F A4	600 mm	0.75 mm	7130982	piece	1 piece

Downloads

Data sheet DBV 60 100 F A4 / 7130972 , 0.18MB , pdf

Guide KTS Kabeltragsysteme , 1.61MB , pdf

Catalogue Kabeltragsysteme , 45.23MB , pdf

EU declaration of conformity DBV 60 100 F A4 / 7130972 , 0.10MB , pdf

Mounting instructions General information on the mounting , 2.61MB , pdf

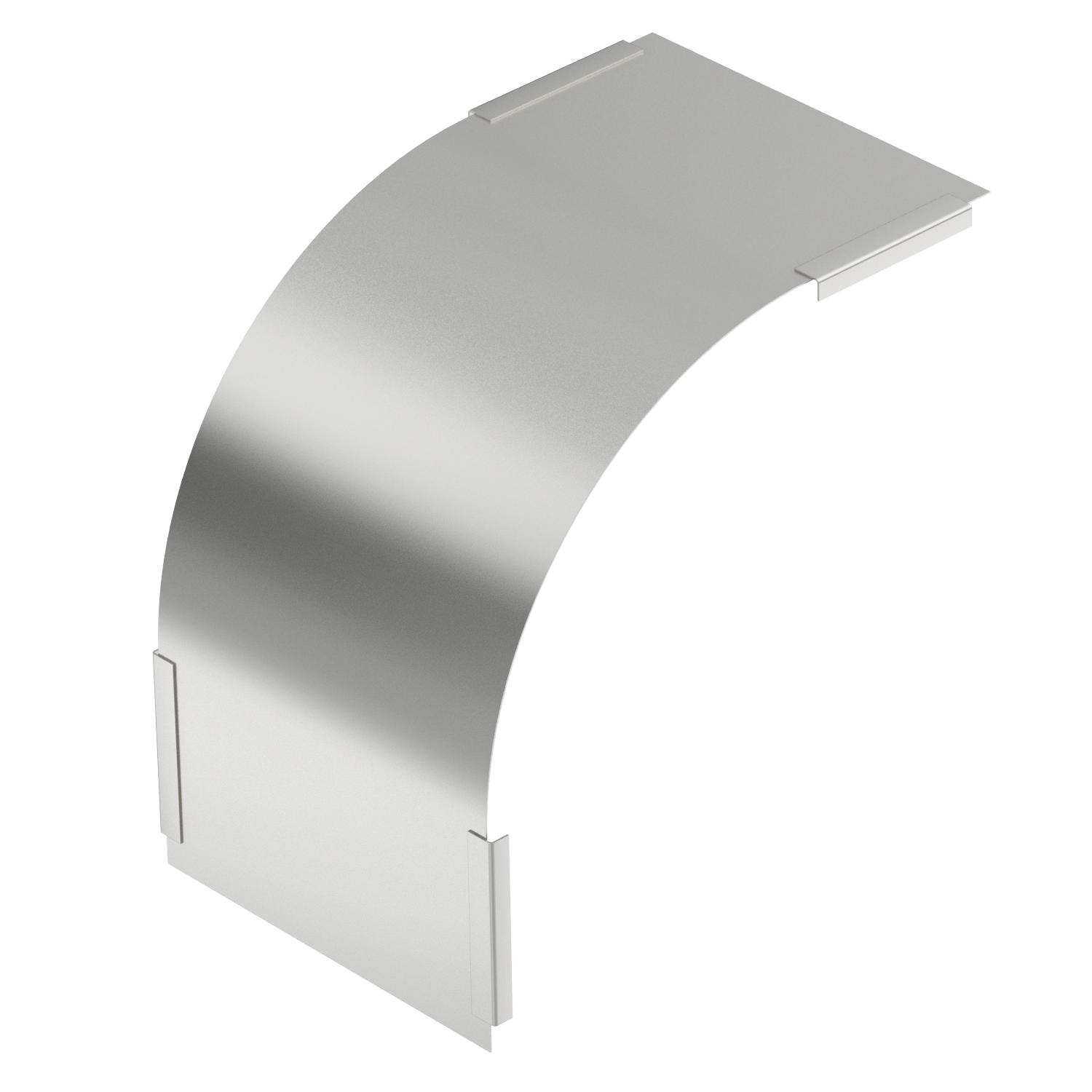

Product graphic DBV 60 100 F A4 / 7130972, 47.19 kB, jpg

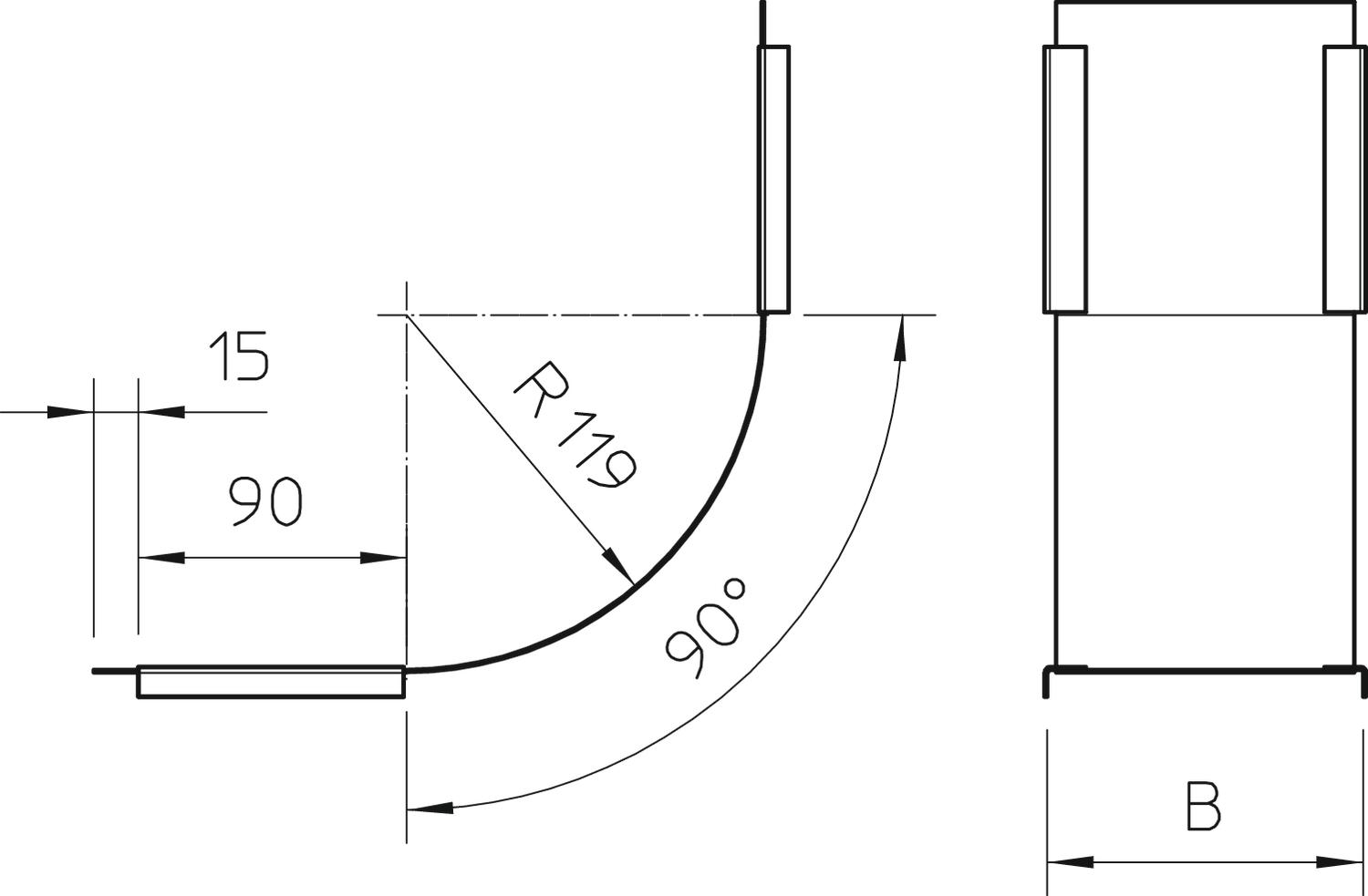

Scale drawing DBV 60 100 F A4 / 7130972, 47.28 kB, jpg
