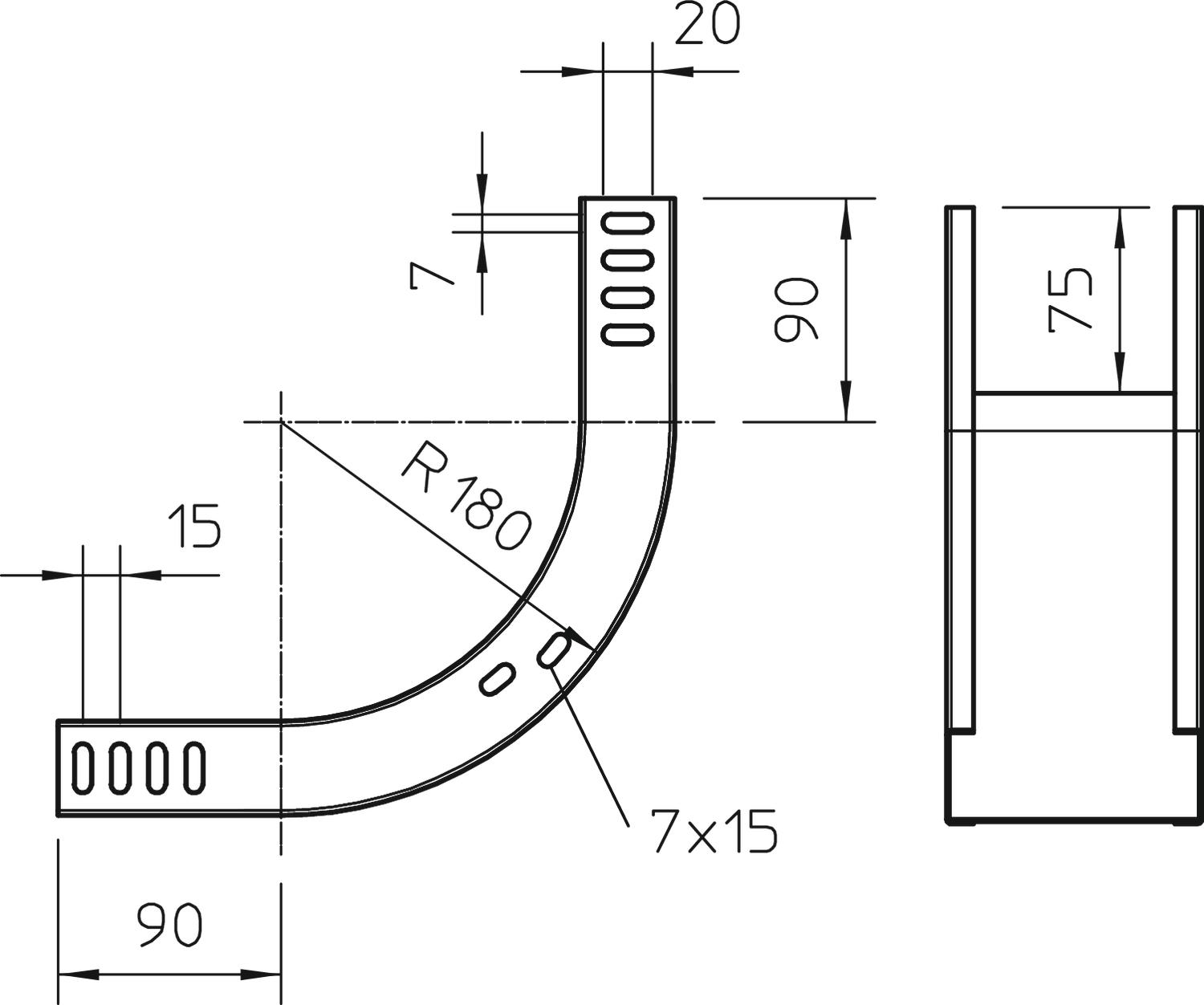

Cover for 90° vertical bend 85, falling, FS
Item no. 7131010 | EAN 4012195712039
- Product description
-
Product descriptionCover for falling vertical bends of side height 85 mm.
-
- Technical data
-
Technical data
Bend (angle) 90° Change of direction Vertical, falling Colour zinc Dimension B600mm Dimension B 600 mm Fastening type Sash lock Height 85 mm Hinged no Maintain electrical functions no Material Steel Plate thickness 0,75 mm Plate thickness 0,03 in Rustproof steel, pickled no Suitable for cable ladder no Suitable for cable tray yes Suitable for mesh cable tray no Surface Strip galvanized Width 24 in Width 600 mm - All types
- Downloads
-
Data sheet DBV 85 600 F FS / 7131010 , 0.19MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfEU declaration of conformity DBV 85 600 F FS / 7131010 , 0.10MB , pdfREACH Declaration of conformity DBV 85 600 F FS / 7131010 , 0.12MB , pdfRoHS Declaration of conformity DBV 85 600 F FS / 7131010 , 0.12MB , pdfMounting instructions General information on the mounting , 2.61MB , pdf
