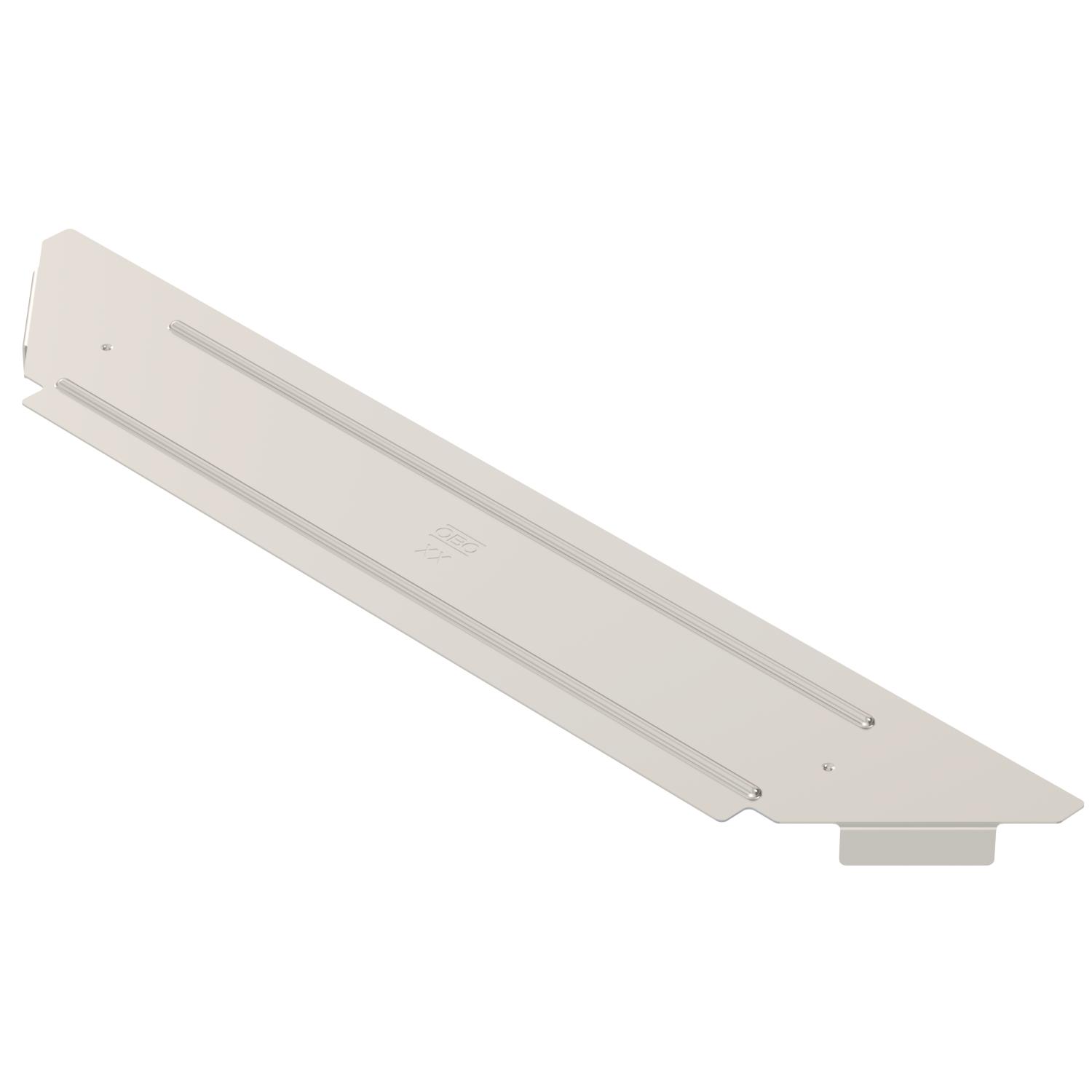

Cover for add-on tee A2

Item no. 6042457 | EAN 4012197407018

Product description
Product description
Cover for add-on tee fitting for lockable and screw-on cable trays in indoor and outdoor areas, to protect cables against damage and soiling. Fastening through attachment of the section cover. Suitable for all side heights.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

Colour stainless steel
Dimension B300mm
Fastening type On top
Material Stainless steel
Material thickness 0,75 mm
Permitted temperature range, max. 120 °C
Permitted temperature range, min. -20 °C
Plate thickness 0,75 mm
Rustproof steel, pickled no
Suitable for cable ladder no
Suitable for cable tray yes
Surface Bright, treated
Wide-span version no
Width 300 mm
All types

All types

Types Width Plate thickness Item no. Quantity SSU
RAAD 100 A2 100 mm 0.75 mm 6042451
20 piece
RAAD 150 A2 150 mm 0.75 mm 6042453
20 piece
RAAD 200 A2 200 mm 0.75 mm 6042455
20 piece
RAAD 300 A2 300 mm 0.75 mm 6042457
20 piece
RAAD 400 A2 400 mm 1 mm 6042459
1 piece
RAAD 500 A2 500 mm 1 mm 6042461
1 piece
RAAD 600 A2 600 mm 1 mm 6042463
1 piece
