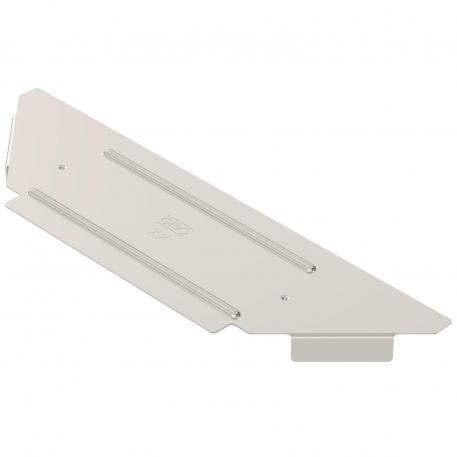

Cover for add-on tee A4

Item no. 6042473 | EAN 4012197407117

Product description

Product description

Cover for add-on tee fitting for lockable and screw-on cable trays in indoor and outdoor areas, to protect cables against damage and soiling. Fastening through attachment of the section cover. Suitable for all side heights.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

Dimension B150mm
Fastening type On top
Material Stainless steel
Material thickness 0,75 mm
Permitted temperature range, max. 120 °C
Permitted temperature range, min. -20 °C
Plate thickness 0,75 mm
Rustproof steel, pickled no
Suitable for cable ladder no
Suitable for cable tray yes
Surface Bright, treated
Wide-span version no
Width 150 mm
All types

All types

Types Width Plate thickness Item no. Quantity SSU
RAAD 100 A4 100 mm 0.75 mm 6042471
20 piece
RAAD 150 A4 150 mm 0.75 mm 6042473
20 piece
RAAD 200 A4 200 mm 0.75 mm 6042475
20 piece
RAAD 300 A4 300 mm 0.75 mm 6042477
20 piece
RAAD 400 A4 400 mm 1 mm 6042479
1 piece
RAAD 500 A4 500 mm 1 mm 6042481
1 piece
RAAD 600 A4 600 mm 1 mm 6042483
1 piece
