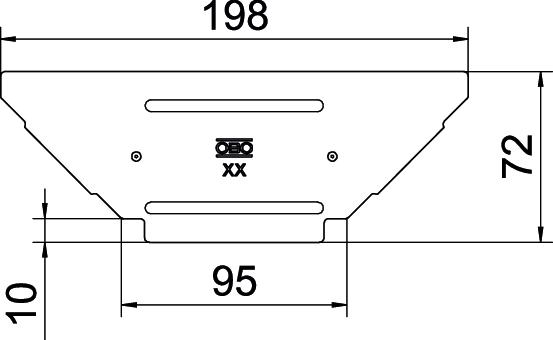

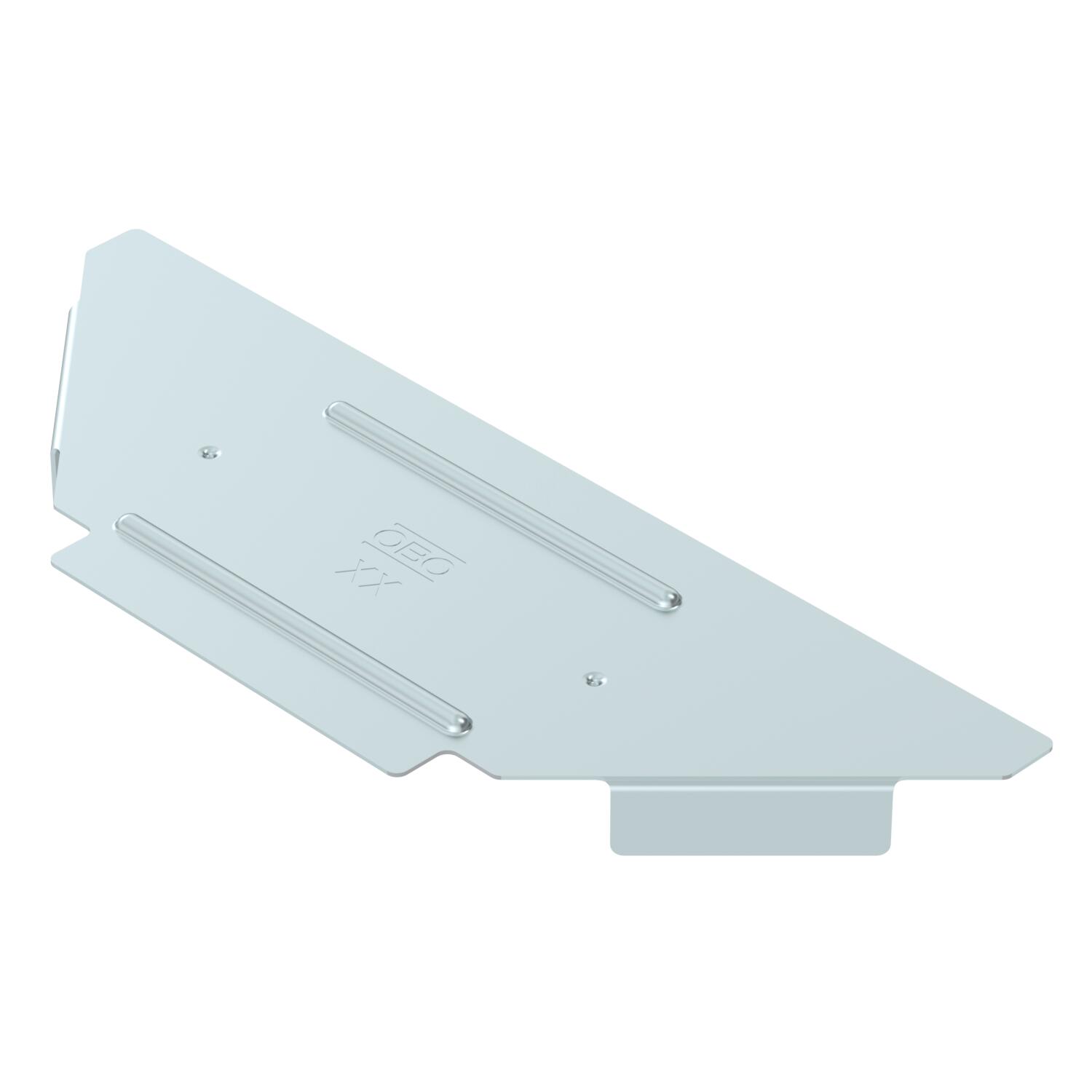

Cover for add-on tee DD

Item no. 6042431 | EAN 4012197406813

Product description

Product description

Cover for add-on tee fitting for lockable and screw-on cable trays in indoor and outdoor areas, to protect cables against damage and soiling. Fastening through attachment of the section cover. Suitable for all side heights.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

Dimension B100mm
Fastening type On top
Material Steel
Material thickness 0,75 mm
Permitted temperature range, max. 120 °C
Permitted temperature range, min. -20 °C
Plate thickness 0,75 mm
Rustproof steel, pickled no
Suitable for cable ladder no
Suitable for cable tray yes
Surface Strip galvanised zinc/aluminium, Double Dip
Wide-span version no
Width 100 mm
All types

All types

Types Width Plate thickness Item no. Quantity SSU
RAAD 100 DD 100 mm 0.75 mm 6042431
20 piece
RAAD 150 DD 150 mm 0.75 mm 6042433
20 piece
RAAD 200 DD 200 mm 0.75 mm 6042435
20 piece
RAAD 300 DD 300 mm 0.75 mm 6042437
20 piece
RAAD 400 DD 400 mm 1 mm 6042439
1 piece
RAAD 500 DD 500 mm 1 mm 6042441
1 piece
RAAD 600 DD 600 mm 1 mm 6042443
1 piece
