Cover for add-on tee DD

Item no. 6042439 | EAN 4012197406899

Item no. / Types

Width

Plate thickness

Product description

Product description

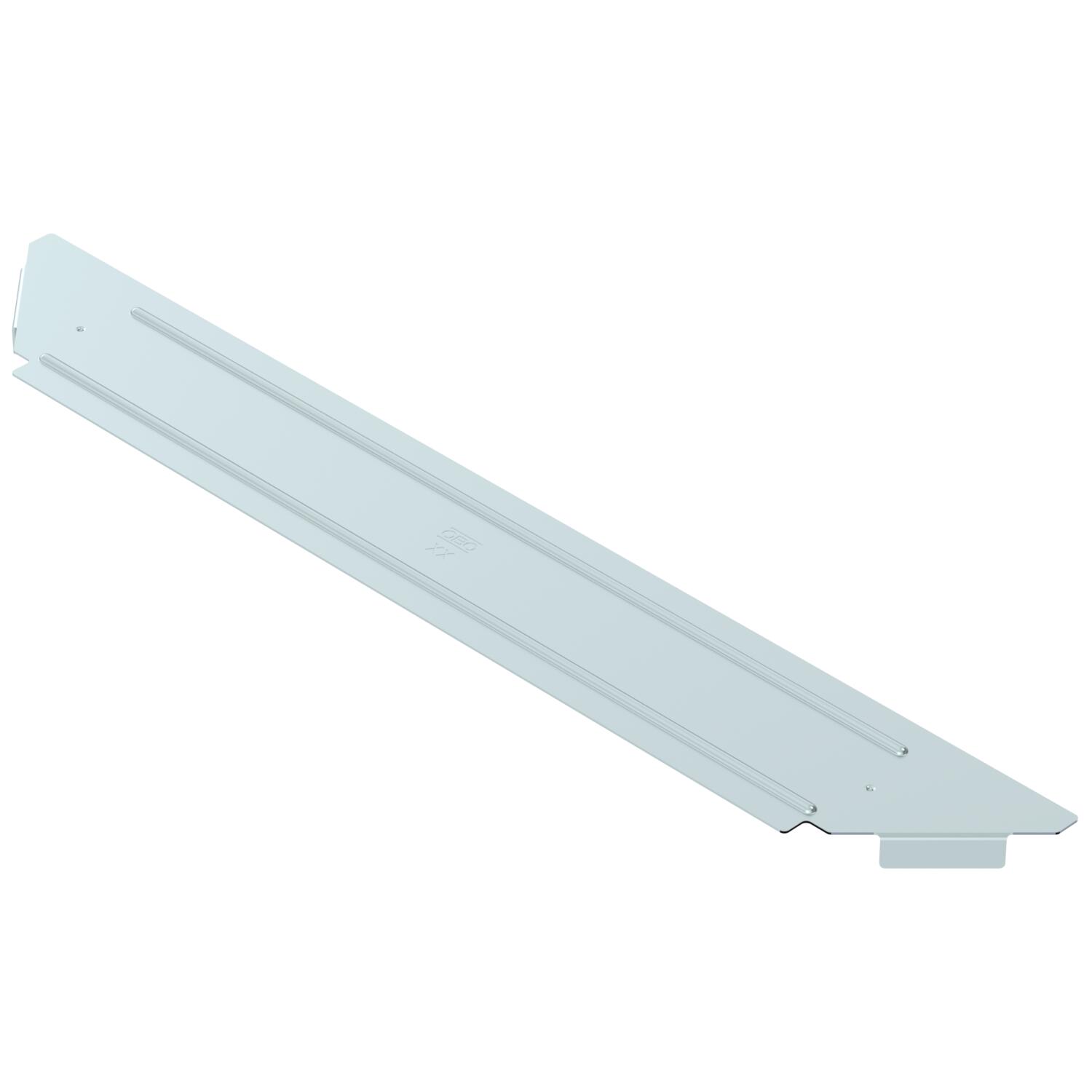

Cover for add-on tee fitting for lockable and screw-on cable trays in indoor and outdoor areas, to protect cables against damage and soiling. Fastening through attachment of the section cover. Suitable for all side heights.

Technical data

Technical data

Colour	zinc
Dimension	B400mm
Fastening type	On top
Material	Steel
Material thickness	1 mm
Permitted temperature range, max.	120 °C
Permitted temperature range, min.	-20 °C

Plate thickness	1 mm
Rustproof steel, pickled	no
Suitable for cable ladder	no
Suitable for cable tray	yes
Surface	Strip galvanised zinc/aluminium, Double Dip
Wide-span version	no
Width	400 mm

All types

All types

Types	Width	Plate thickness	Item no.	Quantity	SSU
RAAD 100 DD	100 mm	0.75 mm	6042431	piece	20 piece
RAAD 150 DD	150 mm	0.75 mm	6042433	piece	20 piece
RAAD 200 DD	200 mm	0.75 mm	6042435	piece	20 piece
RAAD 300 DD	300 mm	0.75 mm	6042437	piece	20 piece
RAAD 400 DD	400 mm	1 mm	6042439	piece	1 piece
RAAD 500 DD	500 mm	1 mm	6042441	piece	1 piece
RAAD 600 DD	600 mm	1 mm	6042443	piece	1 piece
