Cover for add-on tee FS 300 | 1

morepic-1

morepic-2

Cover for add-on tee FS

Item no. 6226312 | EAN 4012196536320

Item no. / Types

Width

Plate thickness

Product description

Product description

Cover with turn buckles for covering add-on tee with welded rungs.

Technical data

Technical data

Dimension	B300
Dimension B	300 mm
Fastening type	Sash lock
Material	Steel
Material thickness	1 mm
Plate thickness	1 mm

Rustproof steel, pickled	no
Suitable for cable ladder	yes
Suitable for cable tray	no
Surface	Strip galvanized
Wide-span version	no
Width	300 mm

All types

All types

Types	Width	Plate thickness	Item no.	Quantity	SSU
LAAD 200 R3 FS	200 mm	1 mm	6226310	piece	1 piece
LAAD 300 R3 FS	300 mm	1 mm	6226312	piece	1 piece
LAAD 400 R3 FS	400 mm	1 mm	6226314	piece	1 piece
LAAD 500 R3 FS	500 mm	1.25 mm	6226316	piece	1 piece
LAAD 600 R3 FS	600 mm	1.25 mm	6226318	piece	1 piece

Downloads

Data sheet LAAD 300 R3 FS / 6226312 , 0.18MB , pdf

Guide KTS Kabeltragsysteme , 1.61MB , pdf

Brochure Welded cable ladder system , 2.10MB , pdf

Catalogue Kabeltragsysteme , 45.23MB , pdf

Declaration of conformity LAAD 300 R3 FS / 6226312 , 0.10MB , pdf

UK Declaration of Conformity LAAD 300 R3 FS / 6226312 , 0.09MB , pdf

Download

Mounting instructions General information on the mounting , 2.61MB , pdf

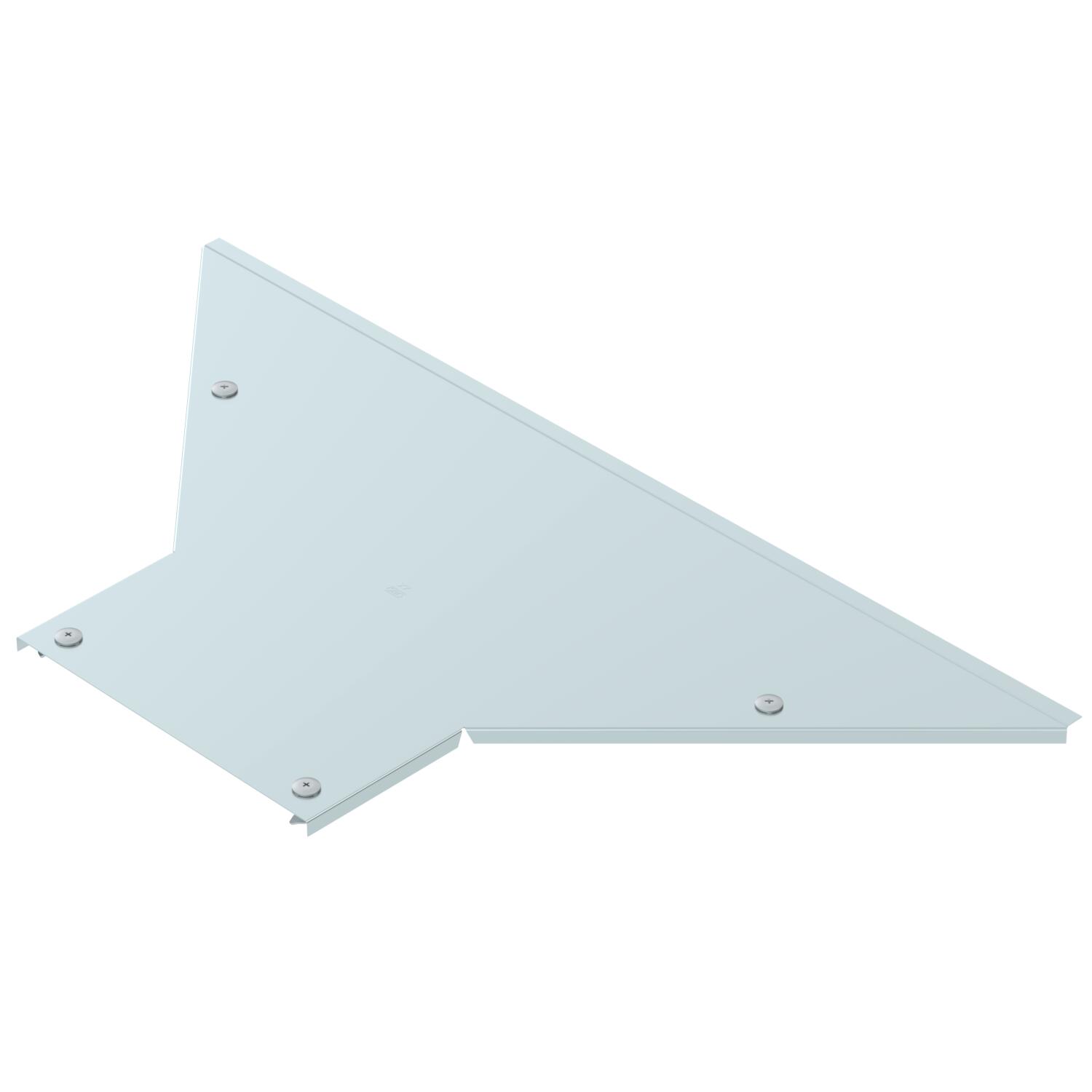

Product graphic LAAD 300 R3 FS / 6226312, 27.87 kB, jpg

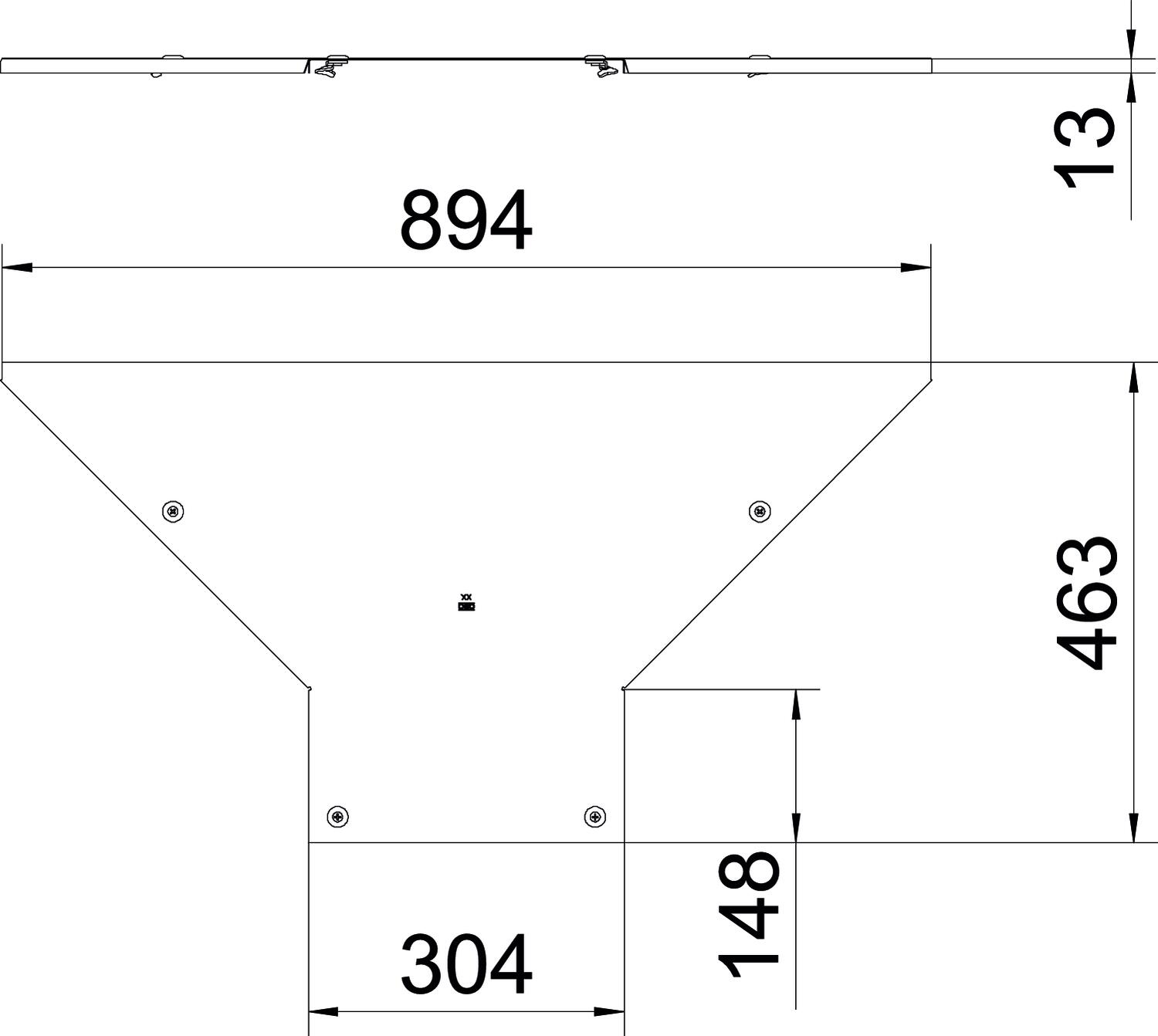

Scale drawing LAAD 300 R3 FS / 6226312, 59.67 kB, jpg

LAAD 300 R3 FS / 6226312

6226312_KSTP1.stp, 390.45 kB
