Cover for add-on tee FS

Item no. 6042411 | EAN 4012197406776

Item no. / Types

Width

Plate thickness

Product description

Product description

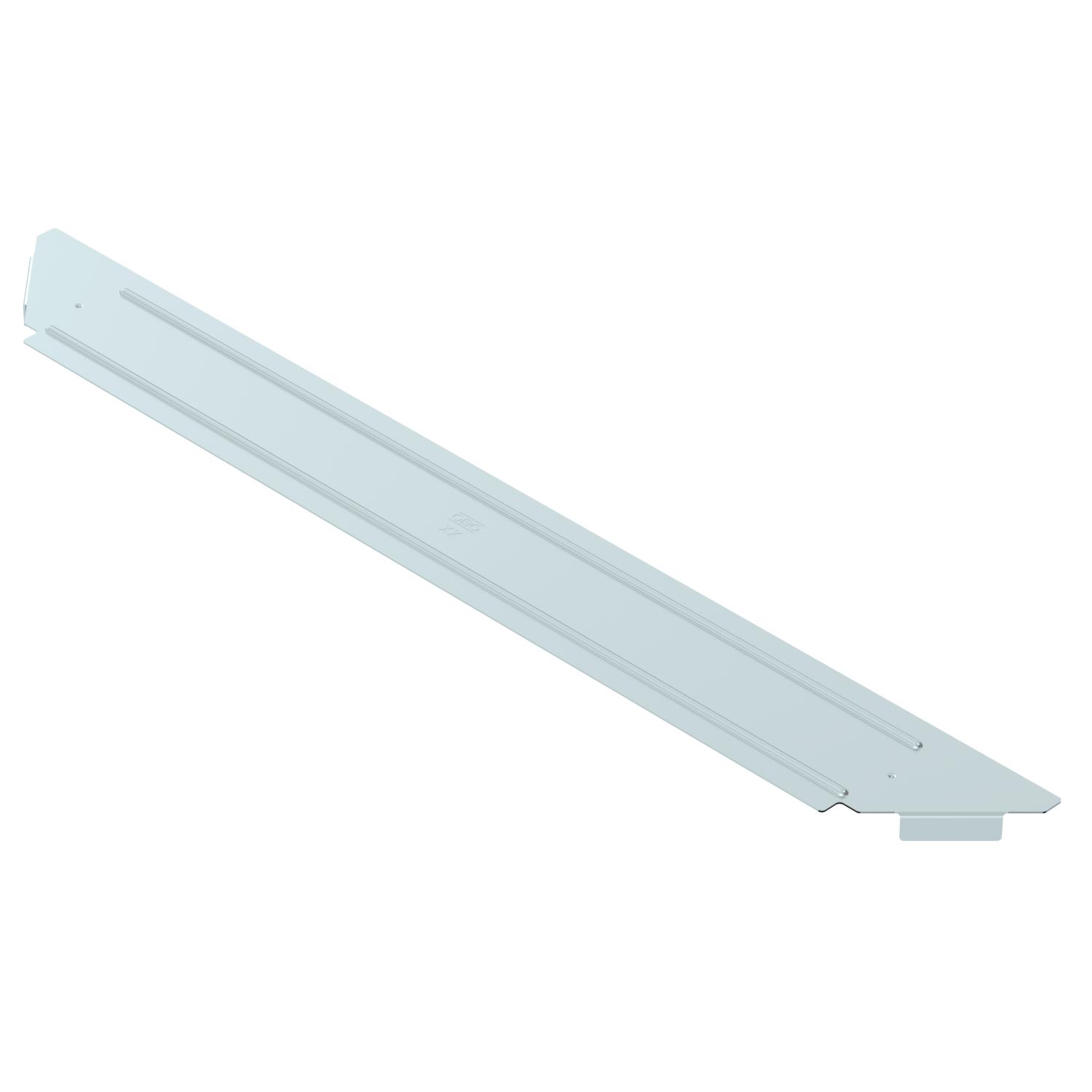

Cover for add-on tee fitting for lockable and screw-on cable trays in indoor areas, to protect cables against damage and soiling. Fastening through attachment of the section cover. Suitable for all side heights.

Technical data

Technical data

Colour	zinc

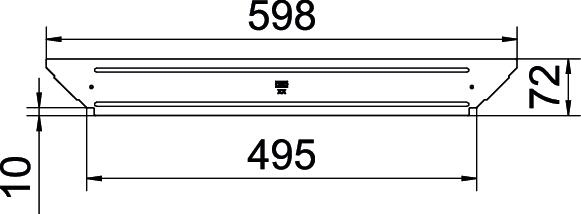

Dimension	B500mm
Fastening type	On top
Material	Steel
Material thickness	1 mm
Permitted temperature range, max.	120 °C
Permitted temperature range, min.	-20 °C

Plate thickness	1 mm
Rustproof steel, pickled	no
Suitable for cable ladder	no
Suitable for cable tray	yes
Surface	Strip galvanized
Wide-span version	no
Width	500 mm

All types

All types

Types	Width	Plate thickness	Item no.	Quantity	SSU
RAAD 100 FS	100 mm	0.75 mm	6042401	piece	20 piece
RAAD 150 FS	150 mm	0.75 mm	6042403	piece	20 piece
RAAD 200 FS	200 mm	0.75 mm	6042405	piece	20 piece
RAAD 300 FS	300 mm	0.75 mm	6042407	piece	20 piece
RAAD 400 FS	400 mm	1 mm	6042409	piece	1 piece
RAAD 500 FS	500 mm	1 mm	6042411	piece	1 piece
RAAD 600 FS	600 mm	1 mm	6042413	piece	1 piece
