Cover for add-on tee FT

Item no. 7132115 | EAN 4012196688685

Item no. / Types	7132115 / DFAA 050 FT

Width	50 mm

Plate thickness	1 mm

Product description

Product description

Cover for for add-on tee cable tray fitting, type RAA 305 and 605.

Technical data

Technical data

Dimension	B50mm
Fastening type	On top
Material	Steel
Material thickness	1 mm
Plate thickness	1 mm

Rustproof steel, pickled	no
Suitable for cable ladder	no
Suitable for cable tray	yes
Surface	Hot-dip galvanised
Wide-span version	no

Dimensions

Dimension B	50 mm
Height	35 mm

Width	50 mm

All types

All types

Types	Width	Plate thickness	Item no.	Quantity	SSU
DFAA 050 FT	50 mm	1 mm	7132115	piece	1 piece

Downloads

Data sheet DFAA 050 FT / 7132115 , 0.16MB , pdf

Guide KTS Kabeltragsysteme , 1.61MB , pdf

Catalogue Kabeltragsysteme , 45.23MB , pdf

Declaration of conformity DFAA 050 FT / 7132115 , 0.17MB , pdf

Mounting instructions KTS mounting instructions Version 1.1 applicable for all OBO cable support systems , 2.00MB , pdf

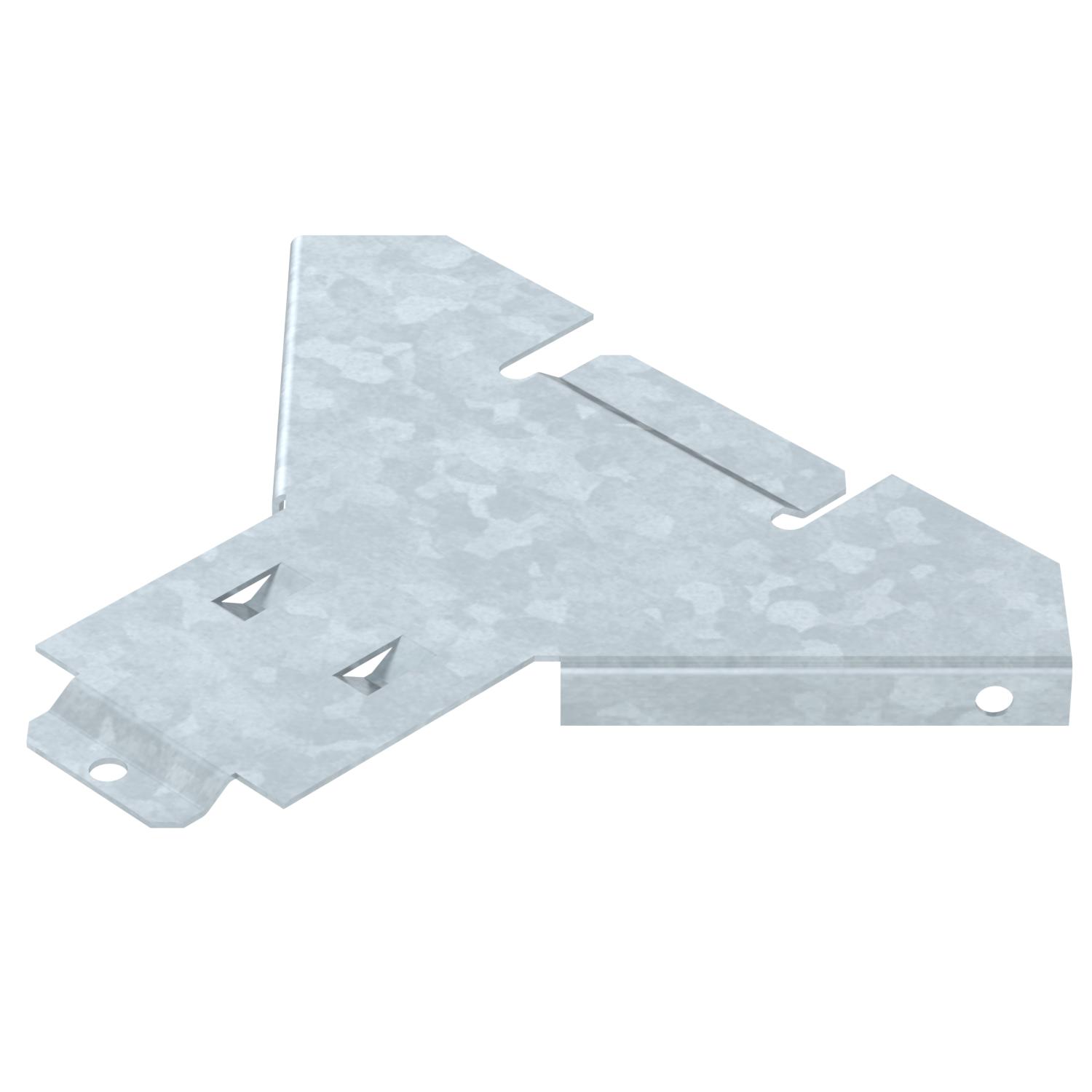

Product graphic DFAA 050 FT / 7132115, 60.59 kB, jpg

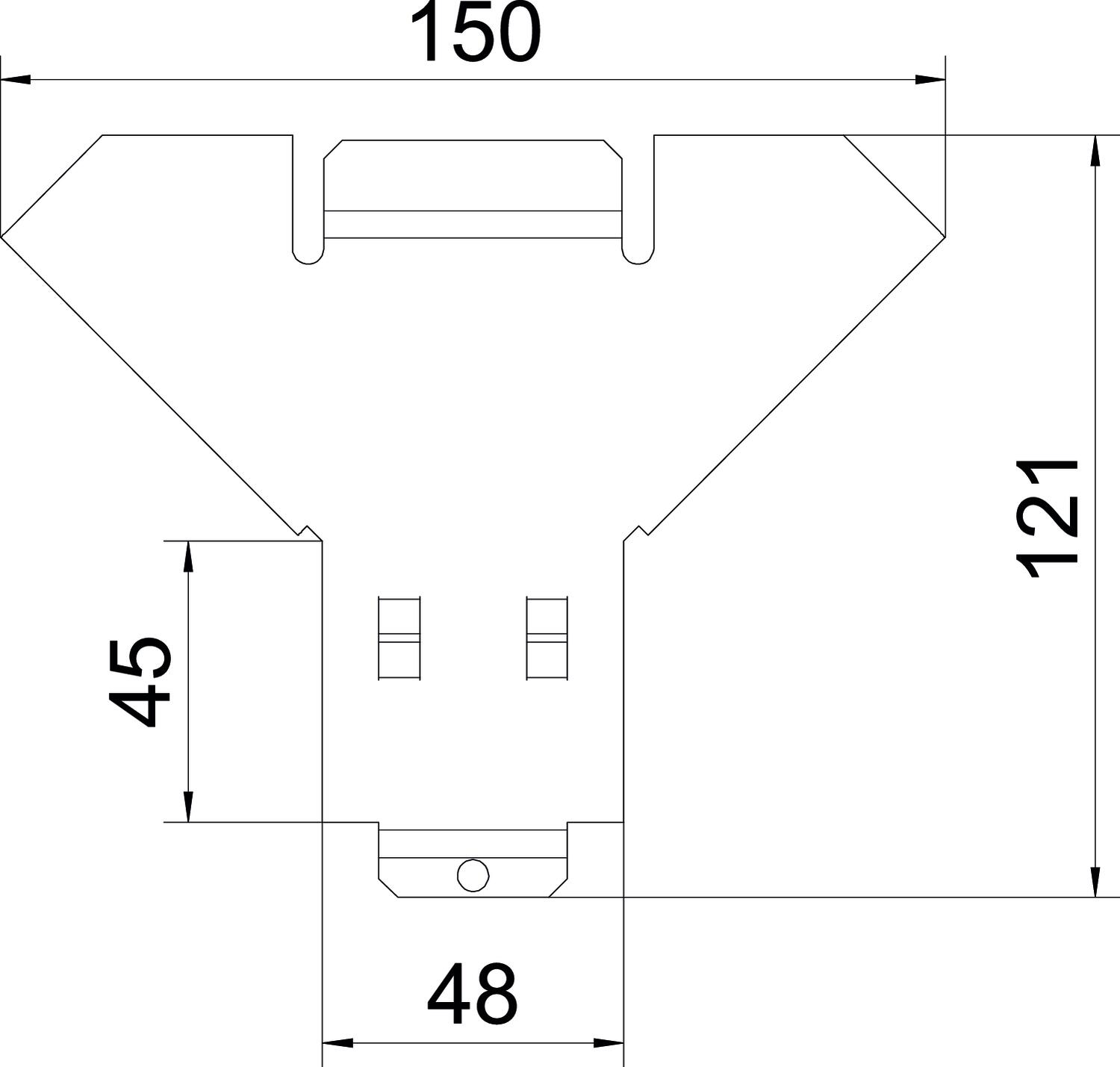

Scale drawing DFAA 050 FT / 7132115, 57.42 kB, jpg

DFAA 050 FT / 7132115

7132115_KSTP1.stp, 203.88 kB

Deckel- DFAA 050 FT_FS.rfa, 444.00 kB
