Cover for add-on tee FT 600 | 1.25

morepic-1

morepic-2

Cover for add-on tee FT

Item no. 6226340 | EAN 4012196536467

Item no. / Types

Width

Plate thickness

Product description

Product description

Cover with turn buckles for covering add-on tee with welded rungs.

Technical data

Technical data

Dimension	B600
Dimension B	600 mm
Fastening type	Sash lock
Material	Steel
Material thickness	1,25 mm
Plate thickness	1,25 mm

Rustproof steel, pickled	no
Suitable for cable ladder	yes
Suitable for cable tray	no
Surface	Hot-dip galvanised
Wide-span version	no
Width	600 mm

All types

All types

Types	Width	Plate thickness	Item no.	Quantity	SSU
LAAD 200 R3 FT	200 mm	1 mm	6226330	piece	1 piece
LAAD 300 R3 FT	300 mm	1 mm	6226332	piece	1 piece
LAAD 400 R3 FT	400 mm	1 mm	6226334	piece	1 piece
LAAD 450 R3 FT	450 mm	1.25 mm	6226336	piece	1 piece
LAAD 500 R3 FT	500 mm	1.25 mm	6226338	piece	1 piece
LAAD 600 R3 FT	600 mm	1.25 mm	6226340	piece	1 piece
LAAD 750 R3 FT	750 mm	1.25 mm	6226342	piece	1 piece
LAAD 800 R3 FT	800 mm	1.25 mm	6226344	piece	1 piece
LAAD 900 R3 FT	900 mm	1.25 mm	6226346	piece	1 piece
LAAD 1000 R3 FT	1000 mm	1.25 mm	6226348	piece	1 piece
LAAD 1200 R3 FT	1200 mm	1.25 mm	6226352	piece	1 piece

Downloads

Data sheet LAAD 600 R3 FT / 6226340 , 0.19MB , pdf

Guide KTS Kabeltragsysteme , 1.61MB , pdf

Brochure Welded cable ladder system , 2.10MB , pdf

Catalogue Kabeltragsysteme , 45.23MB , pdf

Declaration of conformity LAAD 600 R3 FT / 6226340 , 0.10MB , pdf

UK Declaration of Conformity LAAD 600 R3 FT / 6226340 , 0.09MB , pdf

Download

Mounting instructions General information on the mounting , 2.61MB , pdf

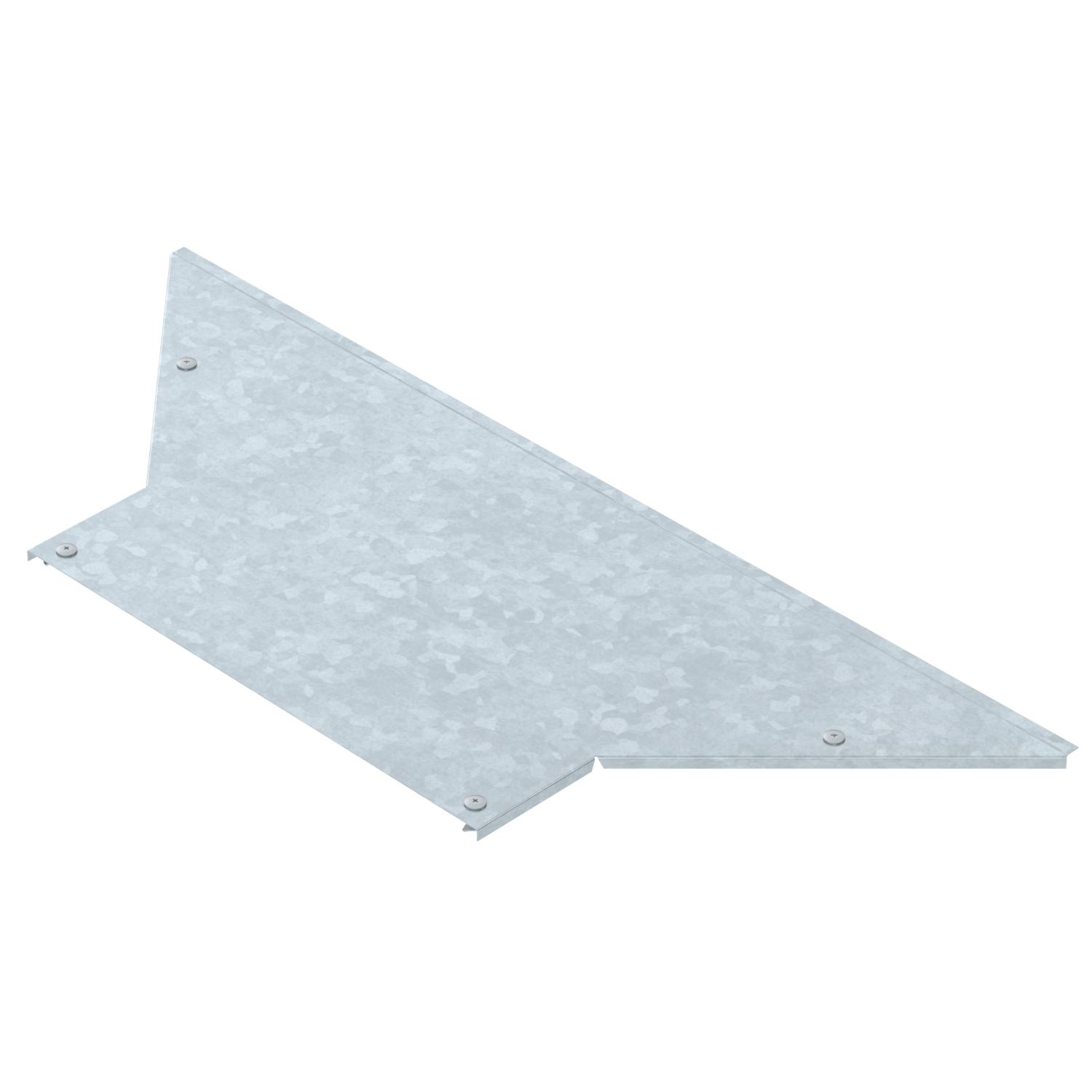

Product graphic LAAD 600 R3 FT / 6226340, 56.50 kB, jpg

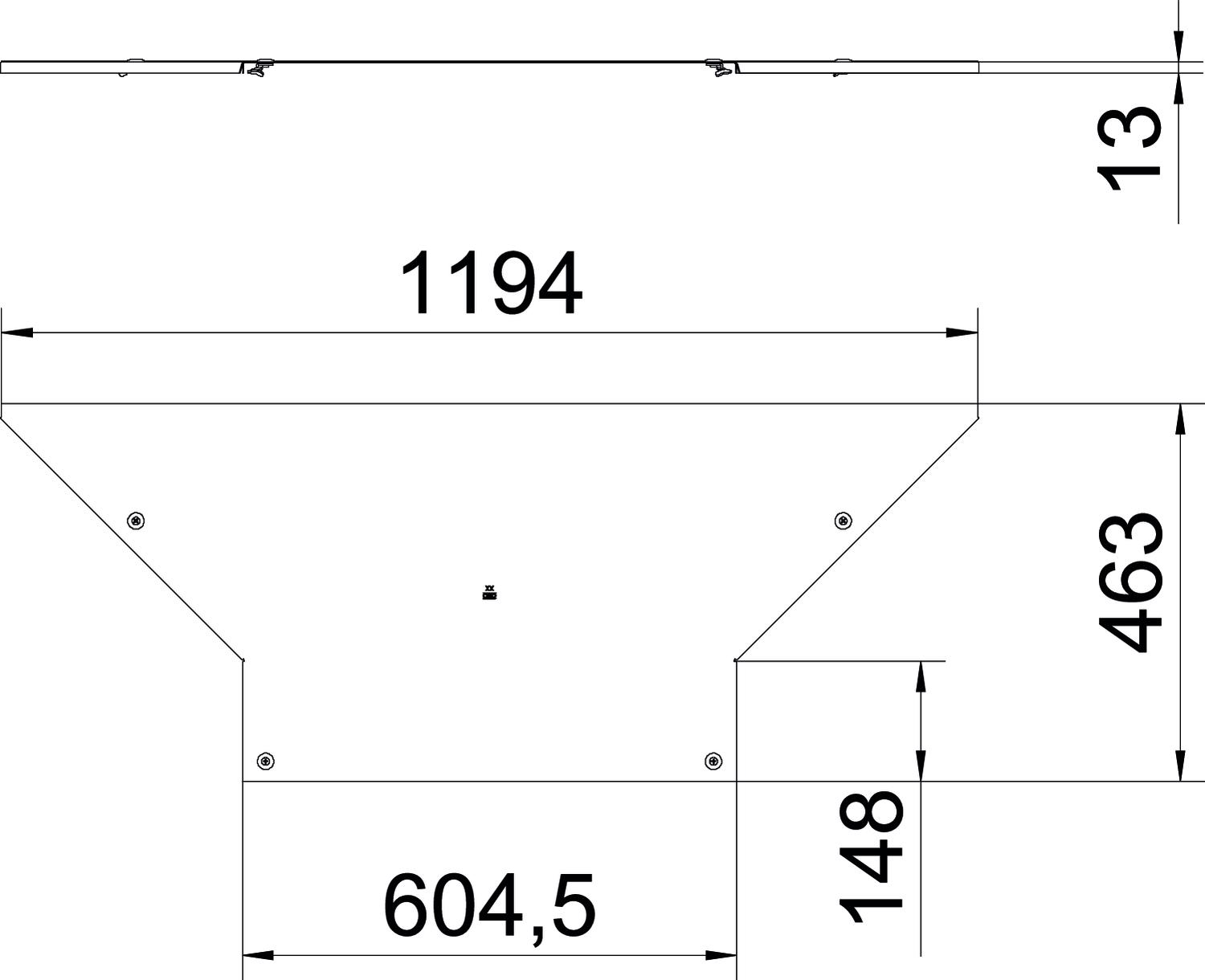

Scale drawing LAAD 600 R3 FT / 6226340, 57.40 kB, jpg

LAAD 600 R3 FT / 6226340

6226340_KSTP1.stp, 497.70 kB
