Cover for articulated bend element FS

Item no. 6226210 | EAN 4012196536078

Item no. / Types

Width

Plate thickness

Product description

Product description

Cover with sash locks for covering adjustable bends with welded rungs.

Technical data

Technical data

Bend (angle)	Adjustable
Change of direction	Vertical, rising/falling
Dimension	B200
Dimension B	200 mm
Fastening type	Sash lock
Hinged	no
Maintain electrical functions	no
Material	Steel

Plate thickness	1 mm
Rustproof steel, pickled	no
Suitable for cable ladder	yes
Suitable for cable tray	no
Suitable for mesh cable tray	no
Surface	Strip galvanized
Width	200 mm

All types

All types

Types	Width	Plate thickness	Item no.	Quantity	SSU
LGBED 200 FS	200 mm	1 mm	6226210	piece	1 piece
LGBED 300 FS	300 mm	1 mm	6226212	piece	1 piece
LGBED 400 FS	400 mm	1 mm	6226214	piece	1 piece
LGBED 500 FS	500 mm	1.25 mm	6226216	piece	1 piece
LGBED 600 FS	600 mm	1.25 mm	6226218	piece	1 piece

Downloads

Data sheet LGBED 200 FS / 6226210 , 0.18MB , pdf

Guide KTS Kabeltragsysteme , 1.61MB , pdf

Brochure Welded cable ladder system , 2.10MB , pdf

Catalogue Kabeltragsysteme , 45.23MB , pdf

Declaration of conformity LGBED 200 FS / 6226210 , 0.10MB , pdf

UK Declaration of Conformity LGBED 200 FS / 6226210 , 0.09MB , pdf

Download

Mounting instructions General information on the mounting , 2.61MB , pdf

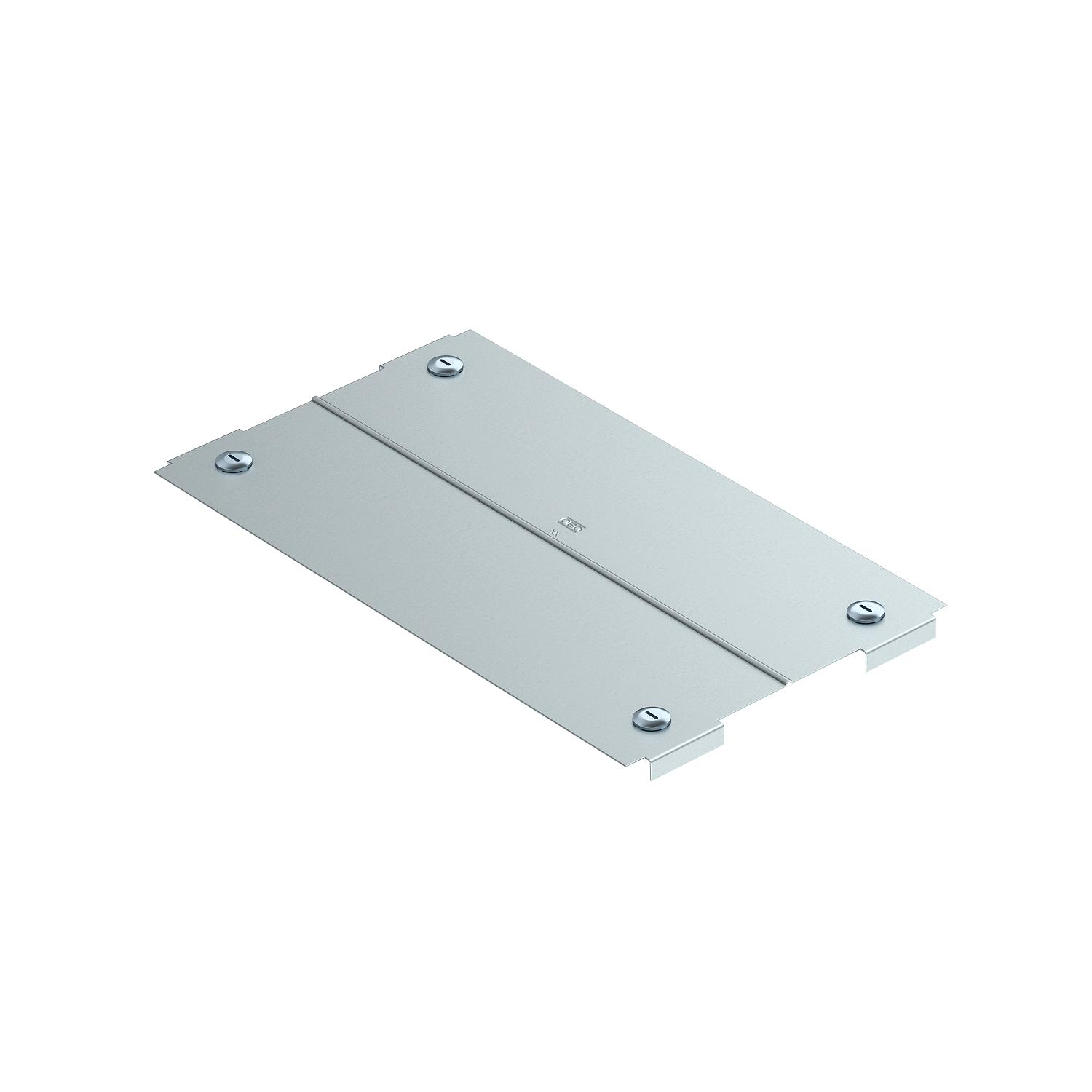

Product graphic LGBED 200 FS / 6226210, 42.86 kB, jpg

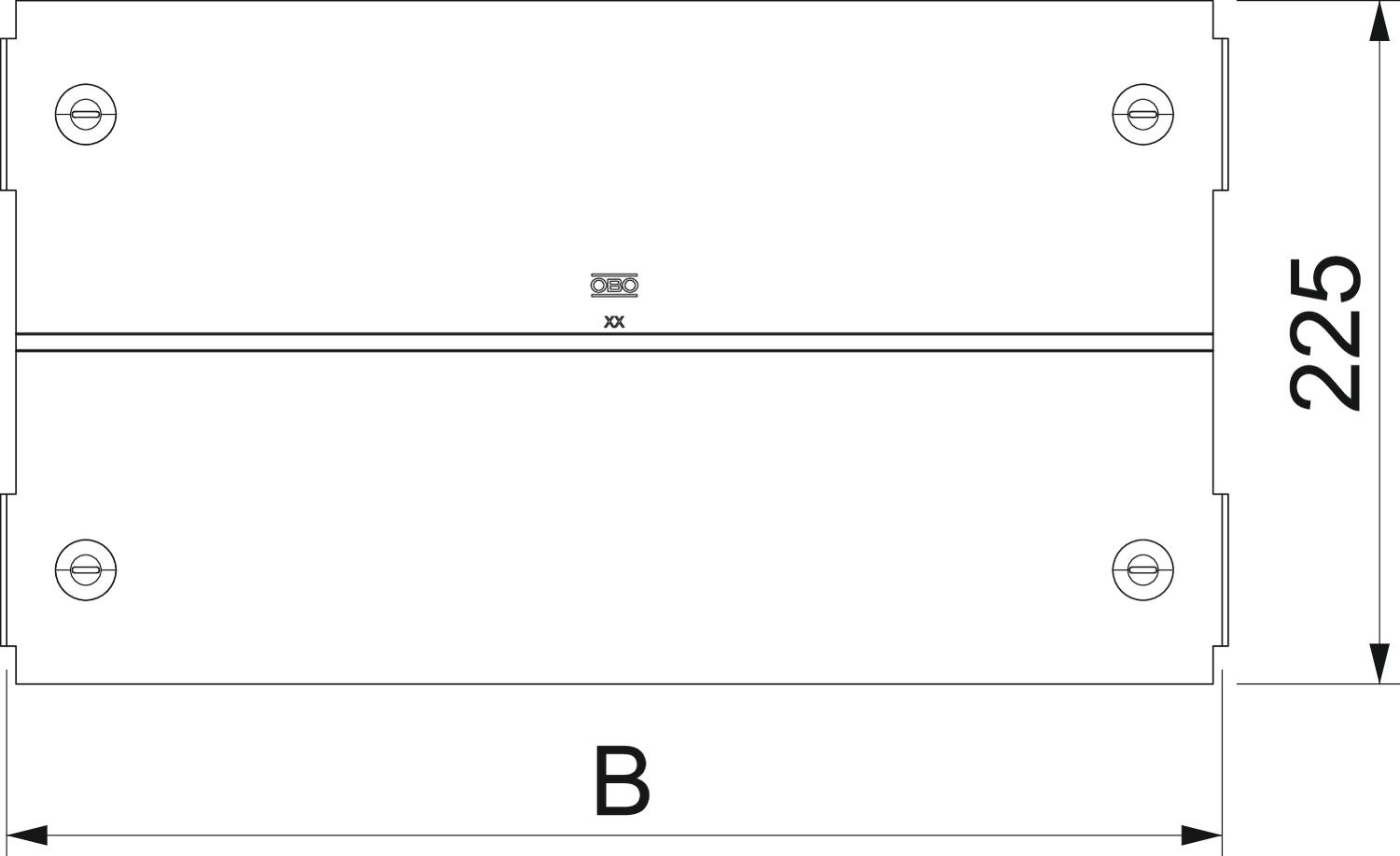

Scale drawing LGBED 200 FS / 6226210, 38.80 kB, jpg

LGBED 200 FS / 6226210
