Cover for articulated bend element FT 200 | 1

morepic-1

morepic-2

Cover for articulated bend element FT

Item no. 6226230 | EAN 4012196536122

Item no. / Types

Width

Plate thickness

Product description

Product description

Cover with sash locks for covering adjustable bends with welded rungs.

Technical data

Technical data

Bend (angle)	Adjustable
Change of direction	Vertical, rising/falling
Dimension	B200
Dimension B	200 mm
Fastening type	Sash lock
Hinged	no
Maintain electrical functions	no
Material	Steel

Plate thickness	1 mm
Rustproof steel, pickled	no
Suitable for cable ladder	yes
Suitable for cable tray	no
Suitable for mesh cable tray	no
Surface	Hot-dip galvanised
Width	200 mm

All types

All types

Types	Width	Plate thickness	Item no.	Quantity	SSU
LGBED 200 FT	200 mm	1 mm	6226230	piece	1 piece
LGBED 300 FT	300 mm	1 mm	6226232	piece	1 piece
LGBED 400 FT	400 mm	1 mm	6226234	piece	1 piece
LGBED 450 FT	450 mm	1.25 mm	6226236	piece	1 piece
LGBED 500 FT	500 mm	1.25 mm	6226238	piece	1 piece
LGBED 600 FT	600 mm	1.25 mm	6226240	piece	1 piece
LGBED 750 FT	750 mm	1.25 mm	6226242	piece	1 piece
LGBED 800 FT	800 mm	1.25 mm	6226244	piece	1 piece
LGBED 900 FT	900 mm	1.25 mm	6226246	piece	1 piece
LGBED 1000 FT	1000 mm	1.25 mm	6226248	piece	1 piece
LGBED 1200 FT	1200 mm	1.25 mm	6226252	piece	1 piece

Downloads

Data sheet LGBED 200 FT / 6226230 , 0.20MB , pdf

Guide KTS Kabeltragsysteme , 1.61MB , pdf

Brochure Welded cable ladder system , 2.10MB , pdf

Catalogue Kabeltragsysteme , 45.23MB , pdf

Declaration of conformity LGBED 200 FT / 6226230 , 0.10MB , pdf

UK Declaration of Conformity LGBED 200 FT / 6226230 , 0.09MB , pdf

Download

Mounting instructions General information on the mounting , 2.61MB , pdf

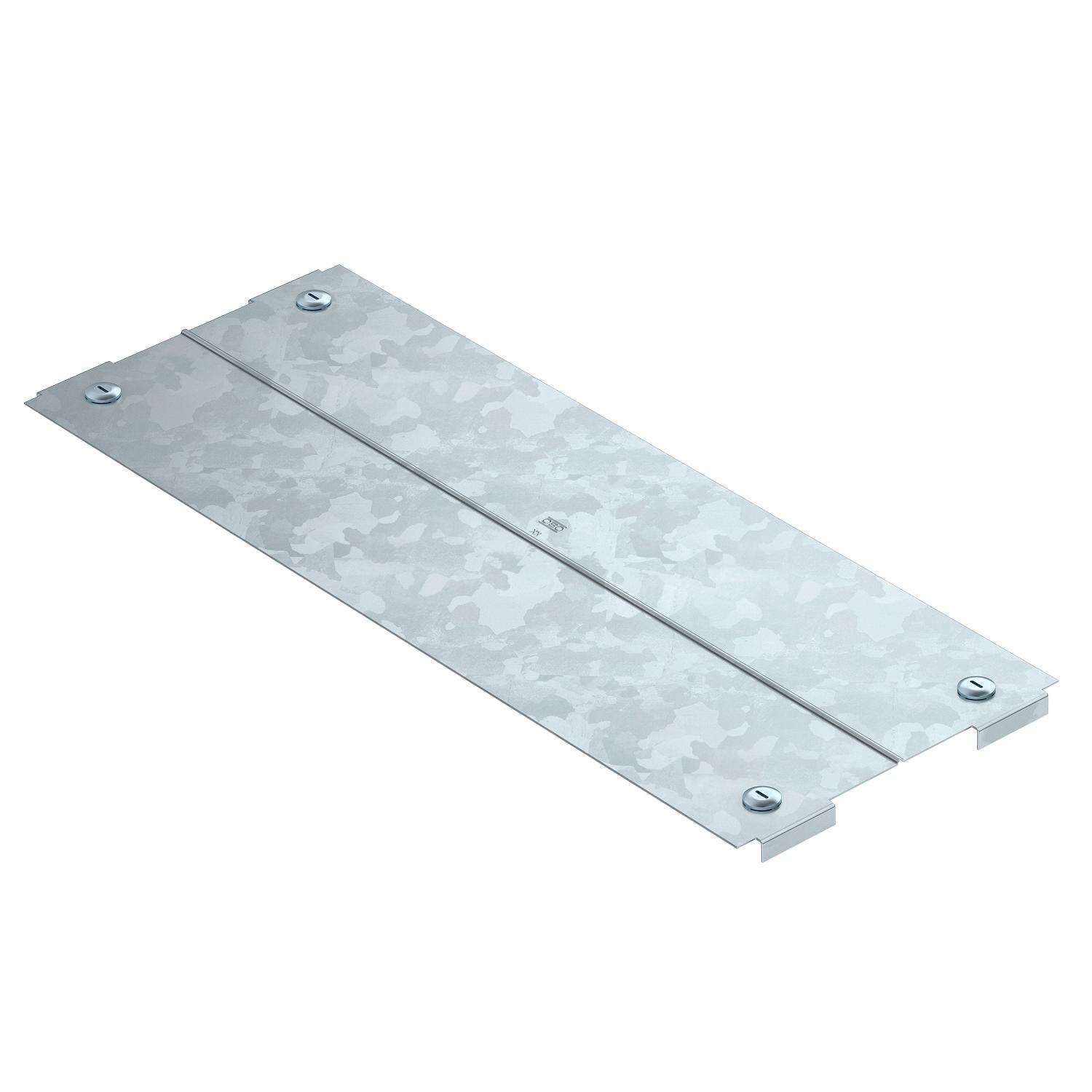

Product graphic LGBED 200 FT / 6226230, 69.16 kB, jpg

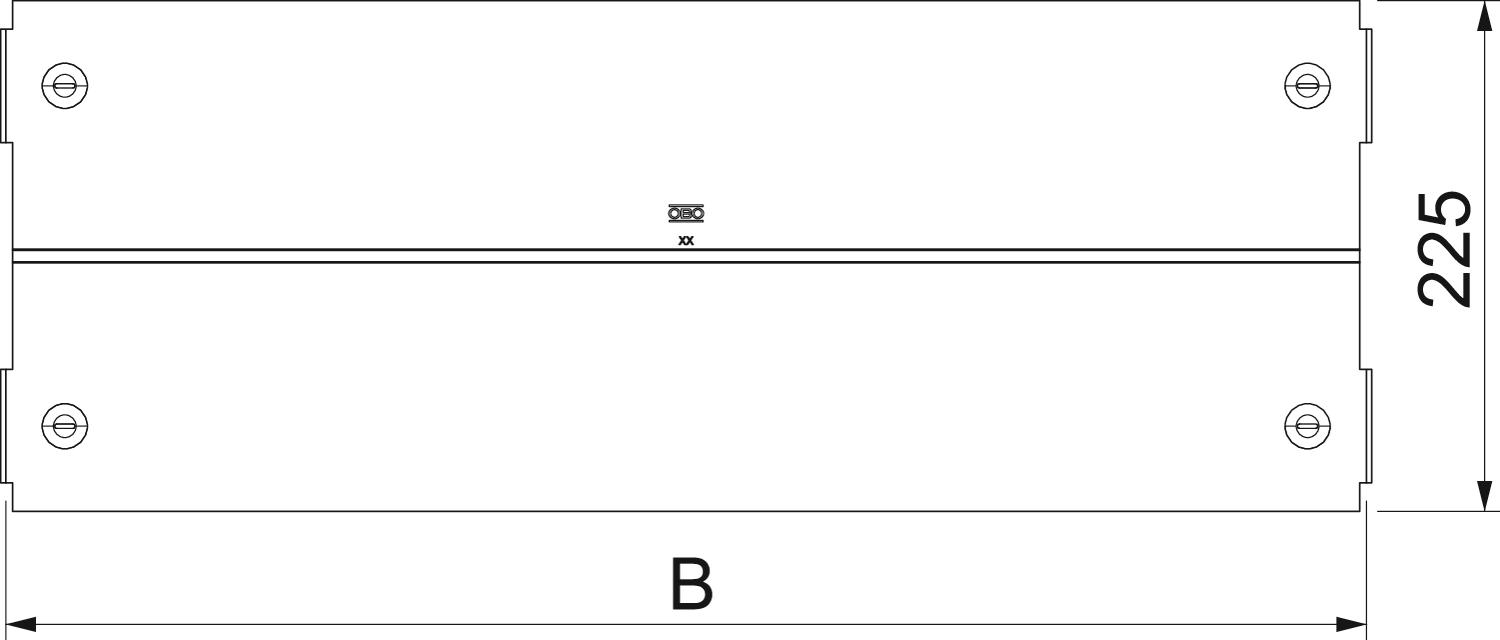

Scale drawing LGBED 200 FT / 6226230, 32.87 kB, jpg

LGBED 200 FT / 6226230
