- Product description
-

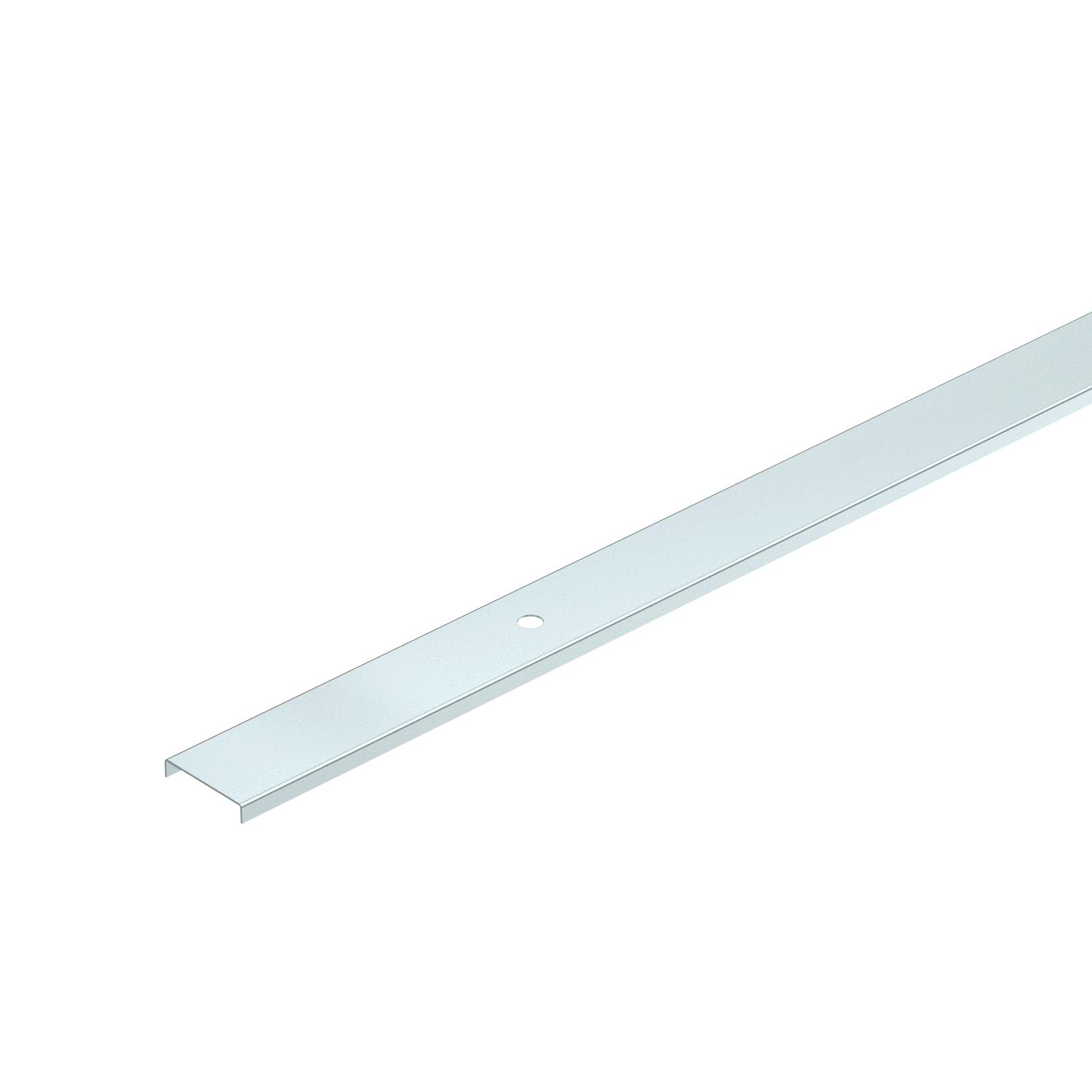

Product descriptionPerforated cover, for threaded rod mounting, for AZ small duct.
To fasten the cover, the cover clamp DKU is required.
- Technical data
-
Technical data

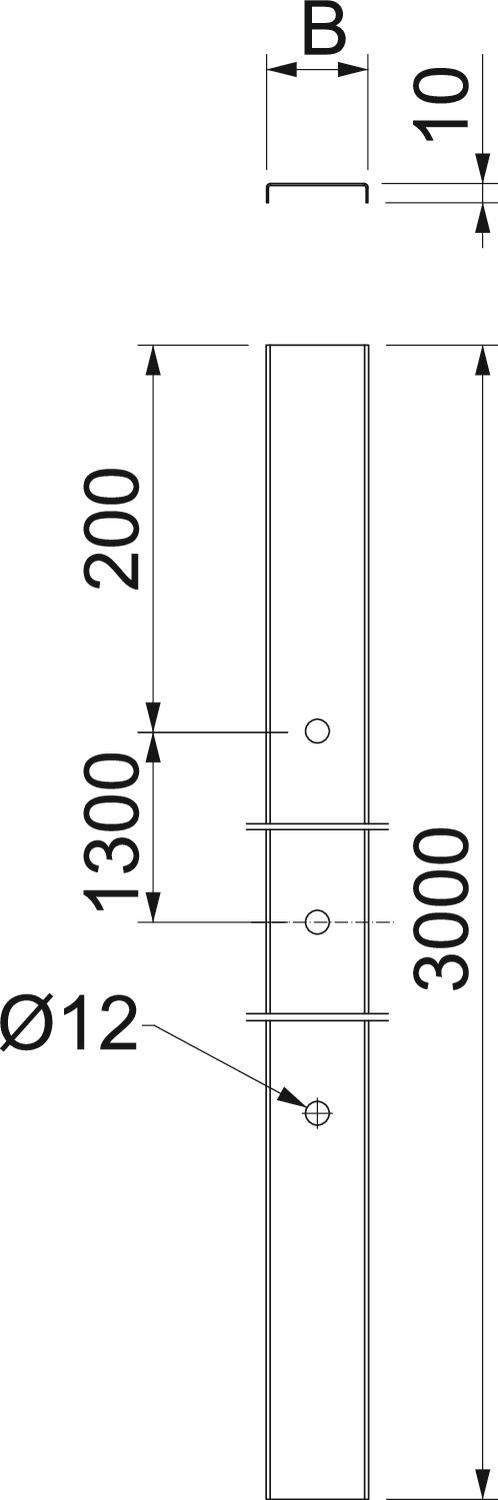

Antibacterial treatment no Colour zinc Dimension 53x3000 Dimension B 53 mm Dimension H 10 mm Fastening type Cover clamp Height 10 mm Length 3000 mm Maintain electrical functions no Material Steel Plate thickness 1 mm Rustproof steel, pickled no Suitable for cable ladder no Suitable for cable tray yes Suitable for mesh cable tray no Surface Strip galvanized Width 53 mm - All types
- Downloads
-
Data sheet AZDG 50 FS / 6080960 , 0.15MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfEU declaration of conformity AZDG 50 FS / 6080960 , 0.13MB , pdfMounting instructions General information on the mounting , 2.61MB , pdf
