Cover, for device installation trunking Rapid 45-2 2000 | Light grey; RAL 7035
morepic-1 morepic-2

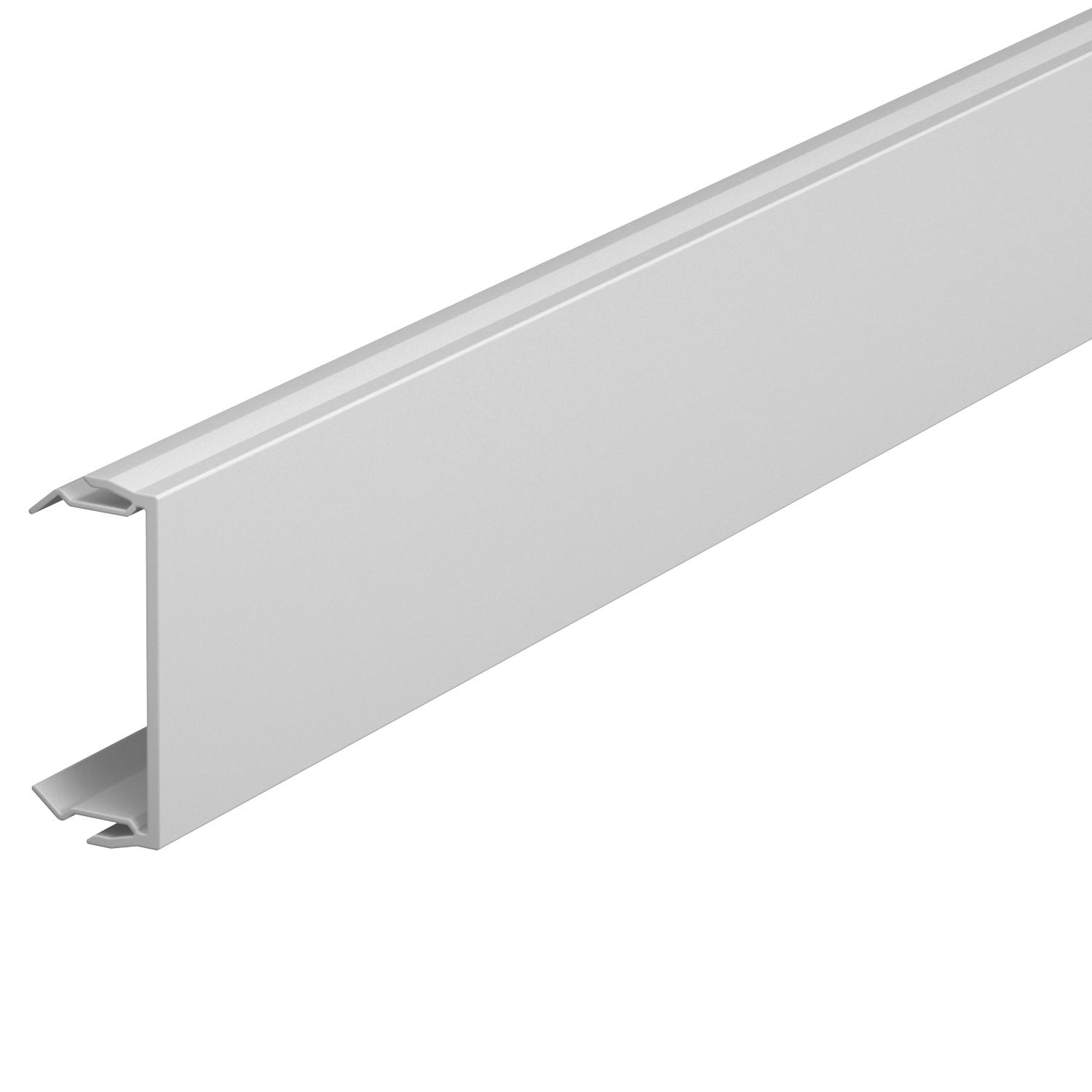

Cover, for device installation trunking Rapid 45-2

Item no. 6113012 | EAN 4012196419104

2000 mm
Product description
Product description
Trunking cover for closing the Rapid 45-2 device installation trunking.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Antibacterial treatment no
Colour Light grey; RAL 7035
Cover mounting type Internal

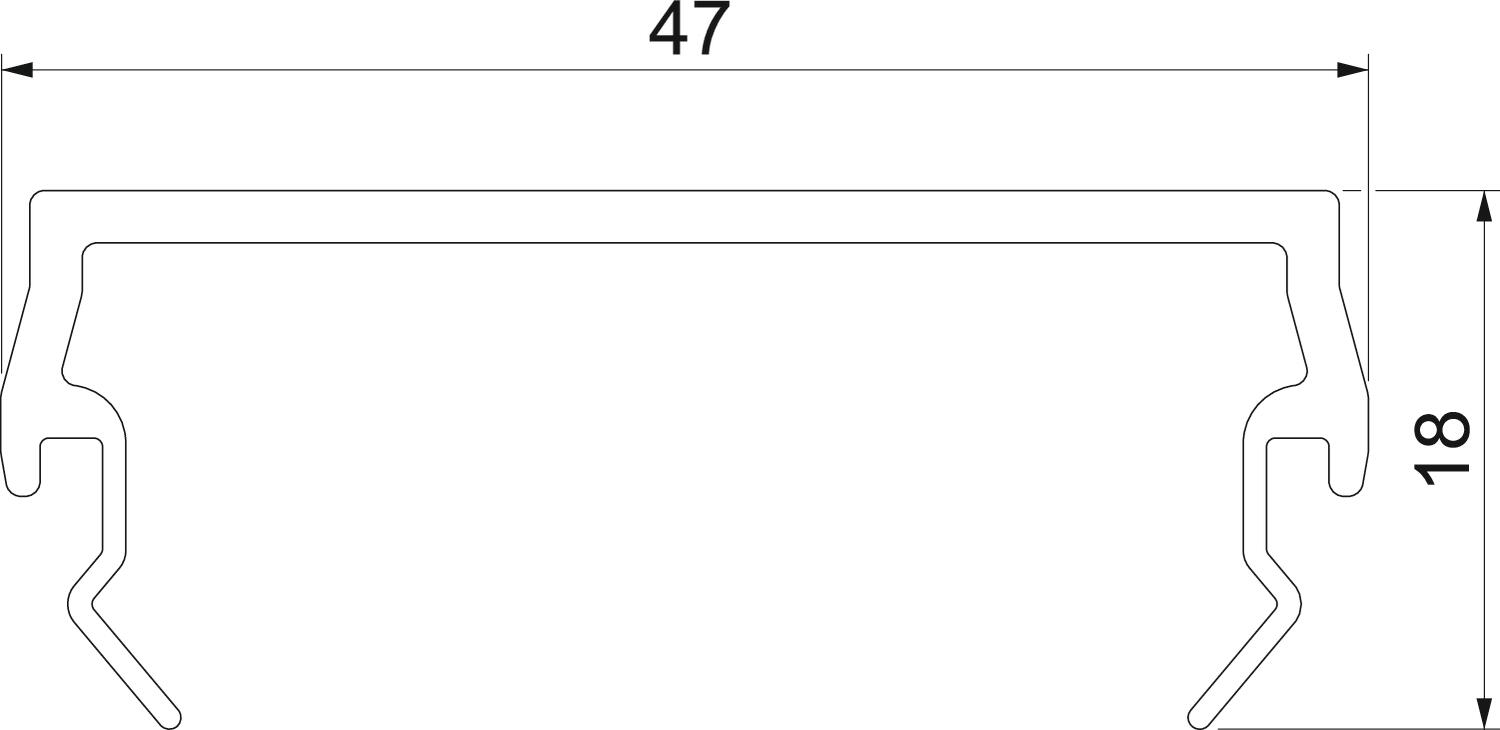

Dimension 45x2000
Halogen-free no
Height 19 mm
Length 2000 mm
Material Polyvinylchloride
Permitted temperature range, max. 60 °C
Permitted temperature range, min. -15 °C
Protection rating IP40
Protection rating IK code IK08
Protective film yes
Version for Smooth
Width 45 mm
All types

All types

Types Length Colour Item no. Quantity SSU
GK-OT45RW 2000 mm Pure white; RAL 9010 6113010
24 m
GK-OT45LGR 2000 mm Light grey; RAL 7035 6113012
24 m
Downloads

Download

Download

EU declaration of conformity GK-OT45LGR / 6113012 , 0.13MB , pdf
Download

Download

No invitation to tender text is available for this product.
