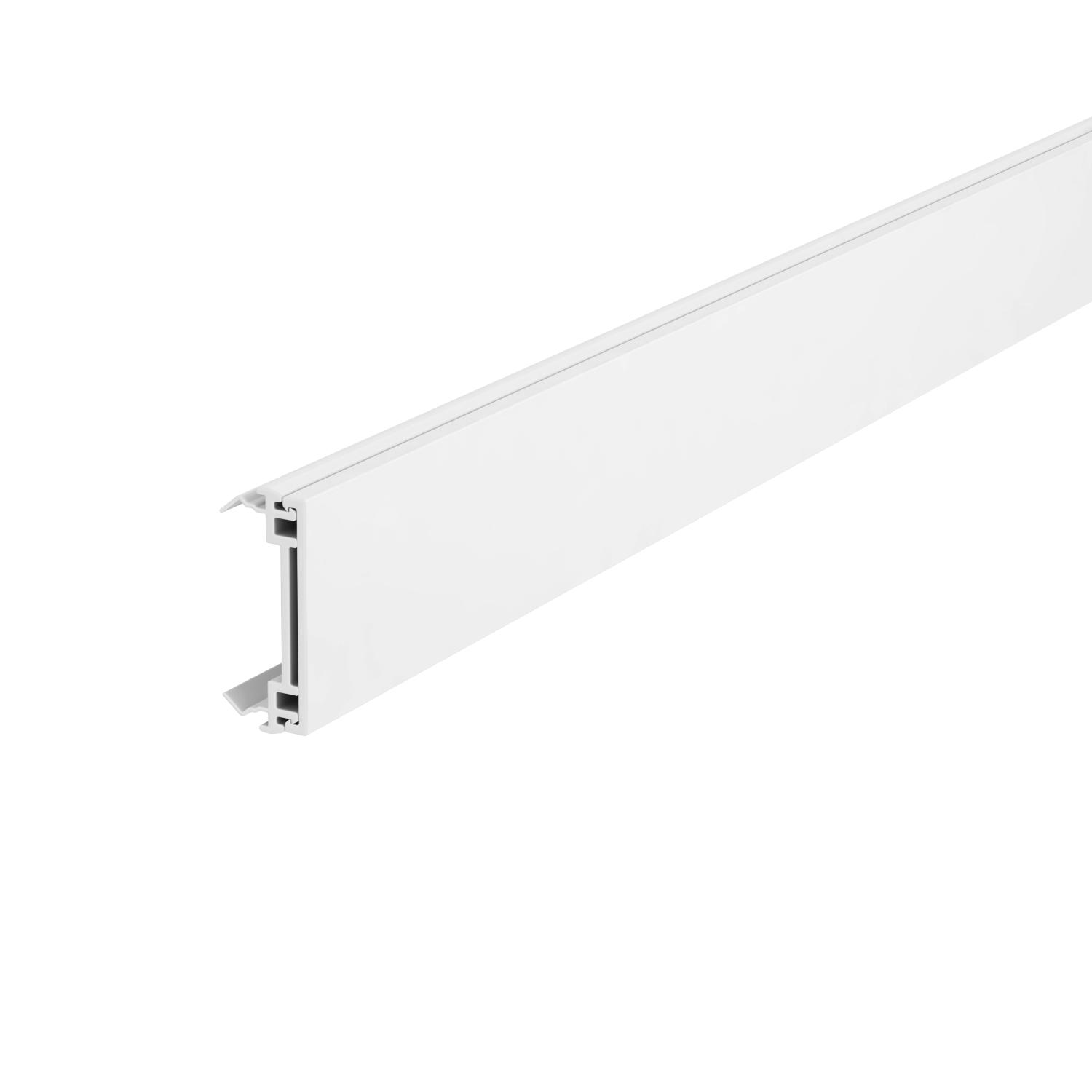

Cover, for device installation trunking Rapid 45-2
Item no. 6112410 | EAN 4012196417926
- Product description
-
Product description
Trunking cover for closing the device installation trunking of the Rapid 45-2 GA... series. The 2-piece cover consists of a PVC base profile and an aluminium panel profile.
Note:
For anodised aluminium trunking, covers and fittings, light colour differences caused by permitted scatter due to the material and process conditions cannot be avoided (according to DIN 17 611). The 45 mm devices can be clicked in directly. When using PC/ABS hood fittings, there may be colour differences due to the different materials.
-
- Technical data
-
Technical data
Antibacterial treatment no Colour Pure white; RAL 9010 Cover mounting type Internal Dimension 45x2000 Halogen-free yes Material Aluminium Permitted temperature range, max. 60 °C Permitted temperature range, min. -15 °C Protection rating IP30 Protection rating IK code IK10 Protective film yes Version for Smooth Dimensions

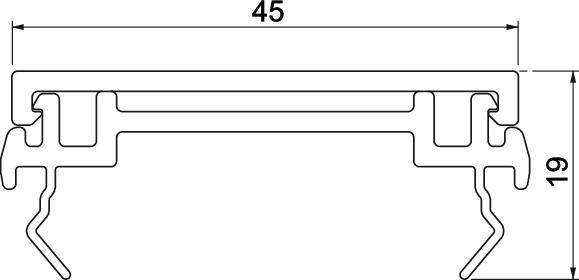

Height 19 mm Length 2000 mm Width 45 mm - All types
- Downloads
-
Data sheet GA-OT45RW / 6112410 , 0.21MB , pdfDeclaration of conformity GA-OT45RW / 6112410 , 0.13MB , pdfUK Declaration of Conformity GA-OT45RW / 6112410 , 0.14MB , pdfREACH Declaration of conformity GA-OT45RW / 6112410 , 0.12MB , pdfRoHS Declaration of conformity GA-OT45RW / 6112410 , 0.28MB , pdfLabel approval VDE symbol approval, Rapid 45-2 GA , 0.20MB , pdfNo invitation to tender text is available for this product.
