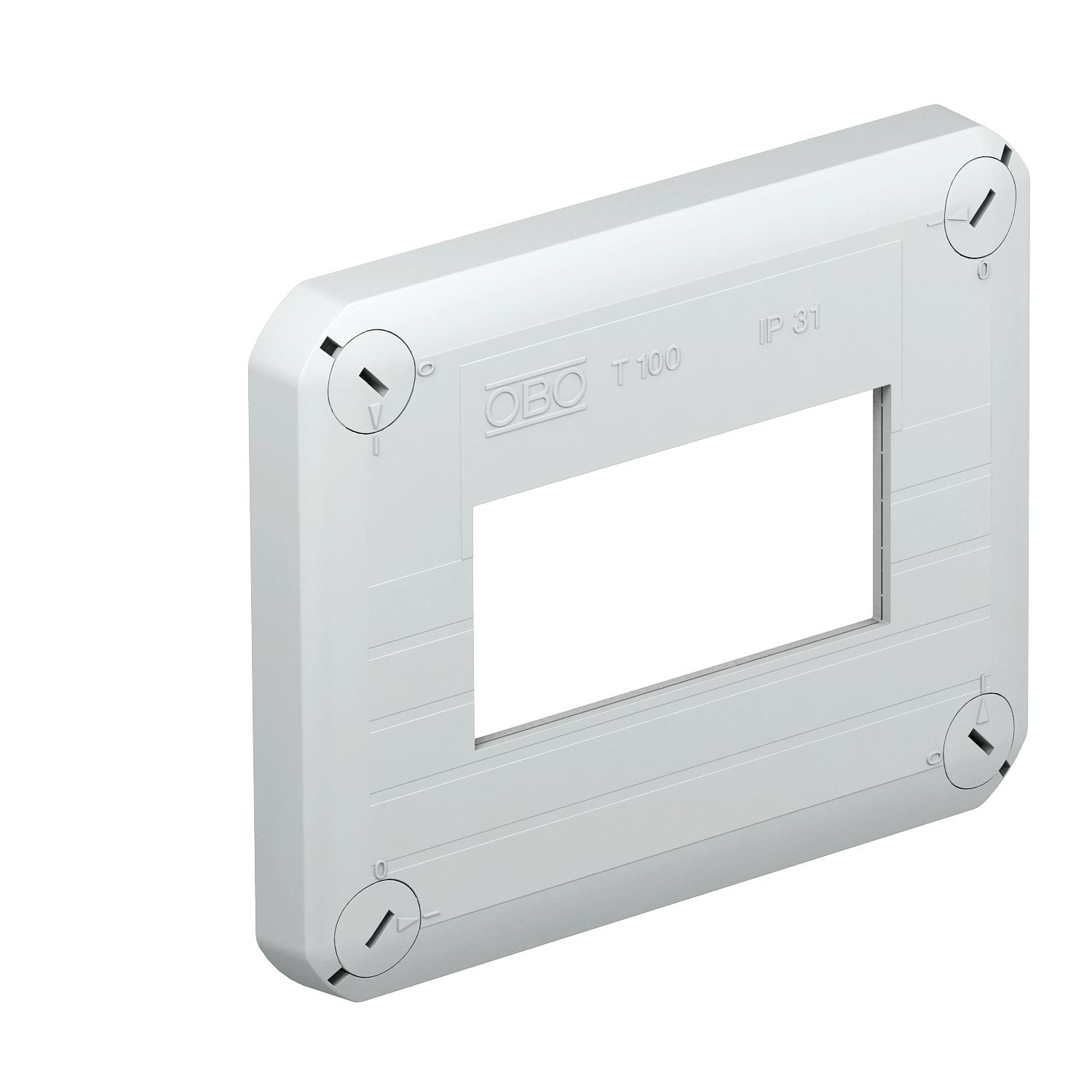

Cover for junction box T 100, perforated without Schuko sockets

Item no. 2007826 | EAN 4012195654582

Product description
Product description
Cover for T 100 propylene junction boxes. Depending on the type, opening for Modul 45 devices or with two or four Modul 45 protective contact sockets in white.
Cover can be lead-sealed, with labelling panel for double sockets.
  • KEMA-KEUR, Netherlands
  • Halogen-free; without chlorine, fluorine and bromine
  • Flame resistant 750 °C
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Protection rating IP 20
  • Installation electrotechnical expertise
  • Nominal voltage 500 V
Technical data

Technical data

Colour Light grey; RAL 7035

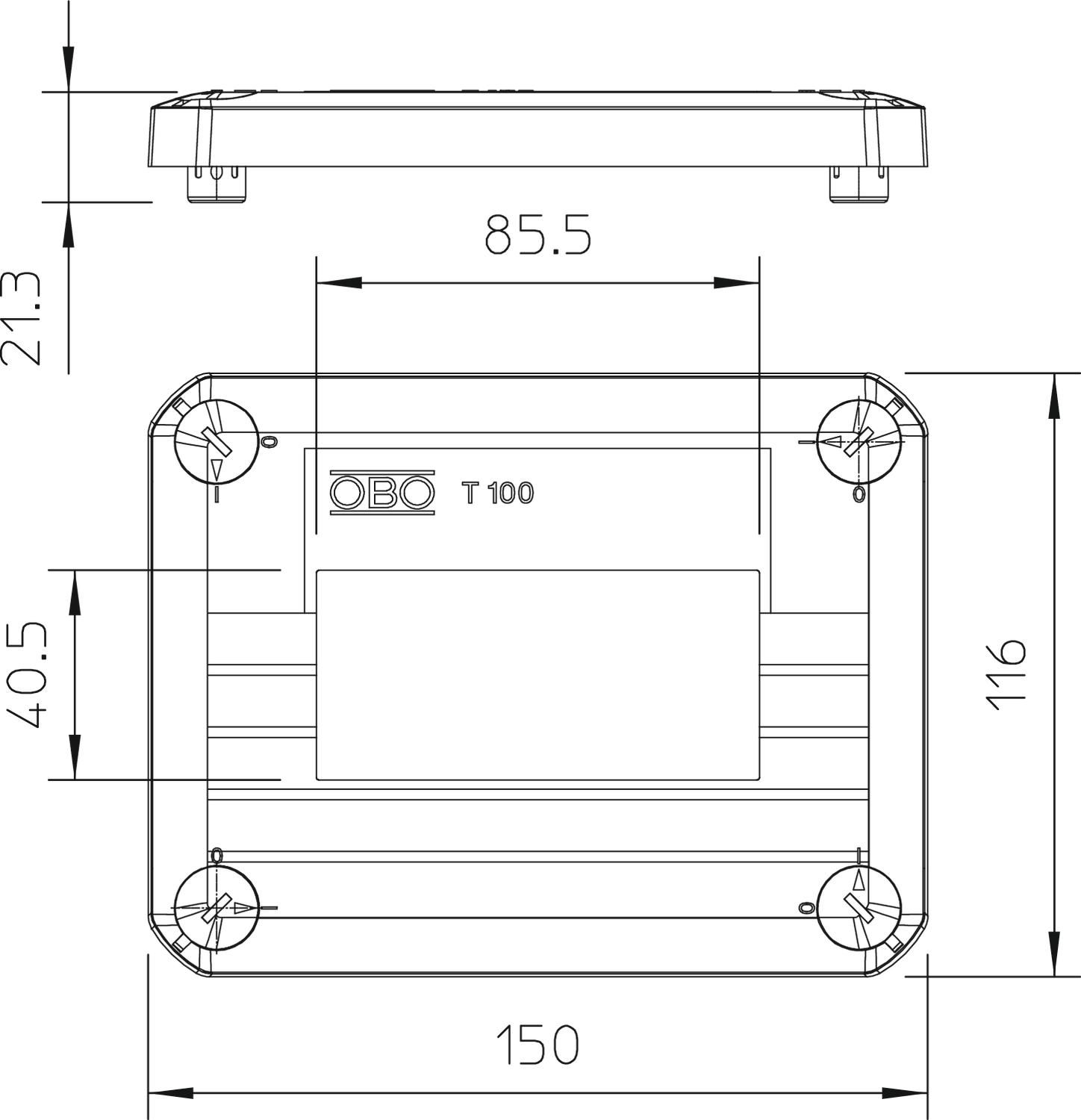

Dimension 150x116x15
Height 15 mm
Length 150 mm
Material Polypropylene
Shape Rectangular
Version, concealed and cavity wall cover Mounting lid
Width 116 mm
All types

All types

Types Number of sockets Number of 3-pole sockets Number of 4-pole sockets Number of 5-pole sockets Item no. Quantity SSU
T 100 D MSD2A 2007826
8 piece
