- Product description
-
Product description

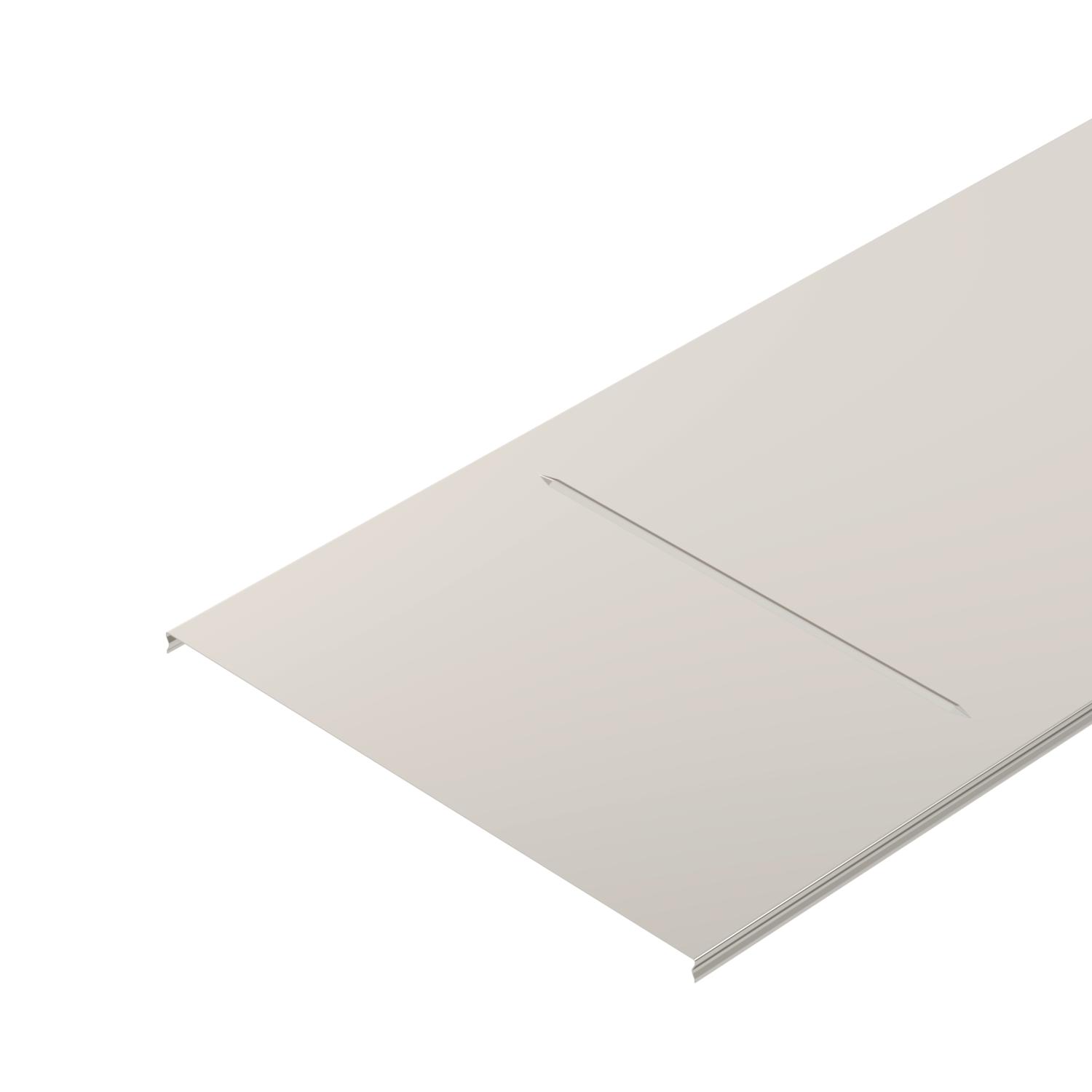

Lockable cover for mesh cable trays of type GR and GRM. Protects cables from damage, contamination and moisture from above. Suitable for the foodstuffs or chemicals industries.
When using covers outdoors, additional measures against the influence of wind may need to be taken.
- Technical data
-
Technical data

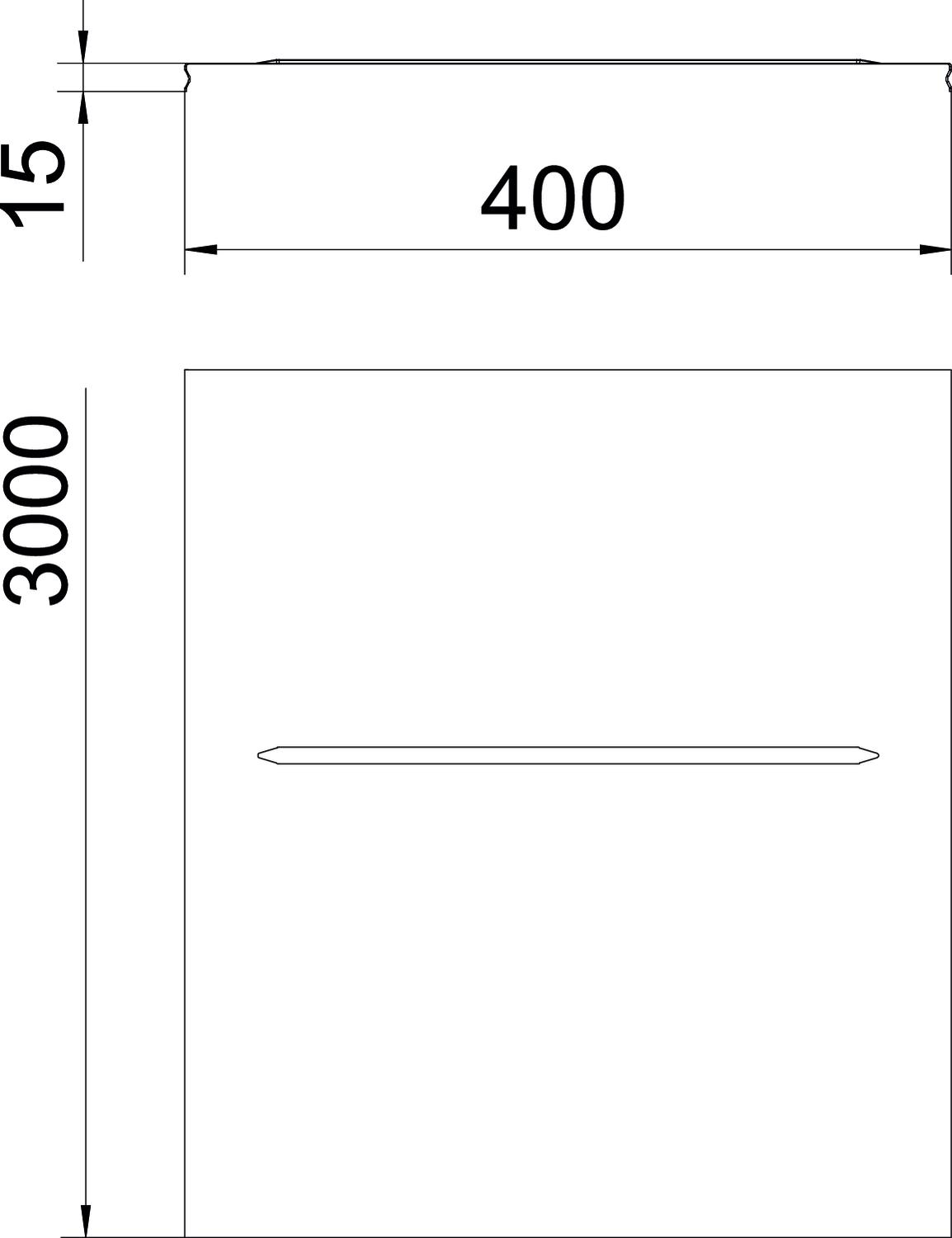

Dimension 400x3000 Dimension B 398 mm Fastening type Locking Height 0,59 in Height 15 mm Length 3000 mm Maintain electrical functions no Material Stainless steel Plate thickness 0,8 mm Rustproof steel, pickled no Suitable for cable ladder no Suitable for cable tray no Suitable for mesh cable tray yes Surface Bright, treated Width 15,67 in Width 398 mm - All types
-
All types
- Downloads
-
Data sheet DGRR 400 A2 / 6001870 , 0.17MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfDeclaration of conformity DGRR 400 A2 / 6001870 , 0.10MB , pdfREACH Declaration of conformity DGRR 400 A2 / 6001870 , 0.12MB , pdfRoHS Declaration of conformity DGRR 400 A2 / 6001870 , 0.12MB , pdfMounting instructions General information on the mounting , 2.61MB , pdfMounting instructions Mounting instructions, mesh cable tray systems , 9.52MB , pdf
