Cover for mesh cable tray, latchable FS 3000 | 298 | 0.75
morepic-1 morepic-2 video-1 video-2

Cover for mesh cable tray, latchable FS

Item no. 6001848 | EAN 4012196687152

3000 mm
0.75 mm
Product description

Product description

Lockable cover for mesh cable trays of type GR and GRM. Protects cables from damage, contamination and moisture from above. Suitable for interior areas without specific requirements.


  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

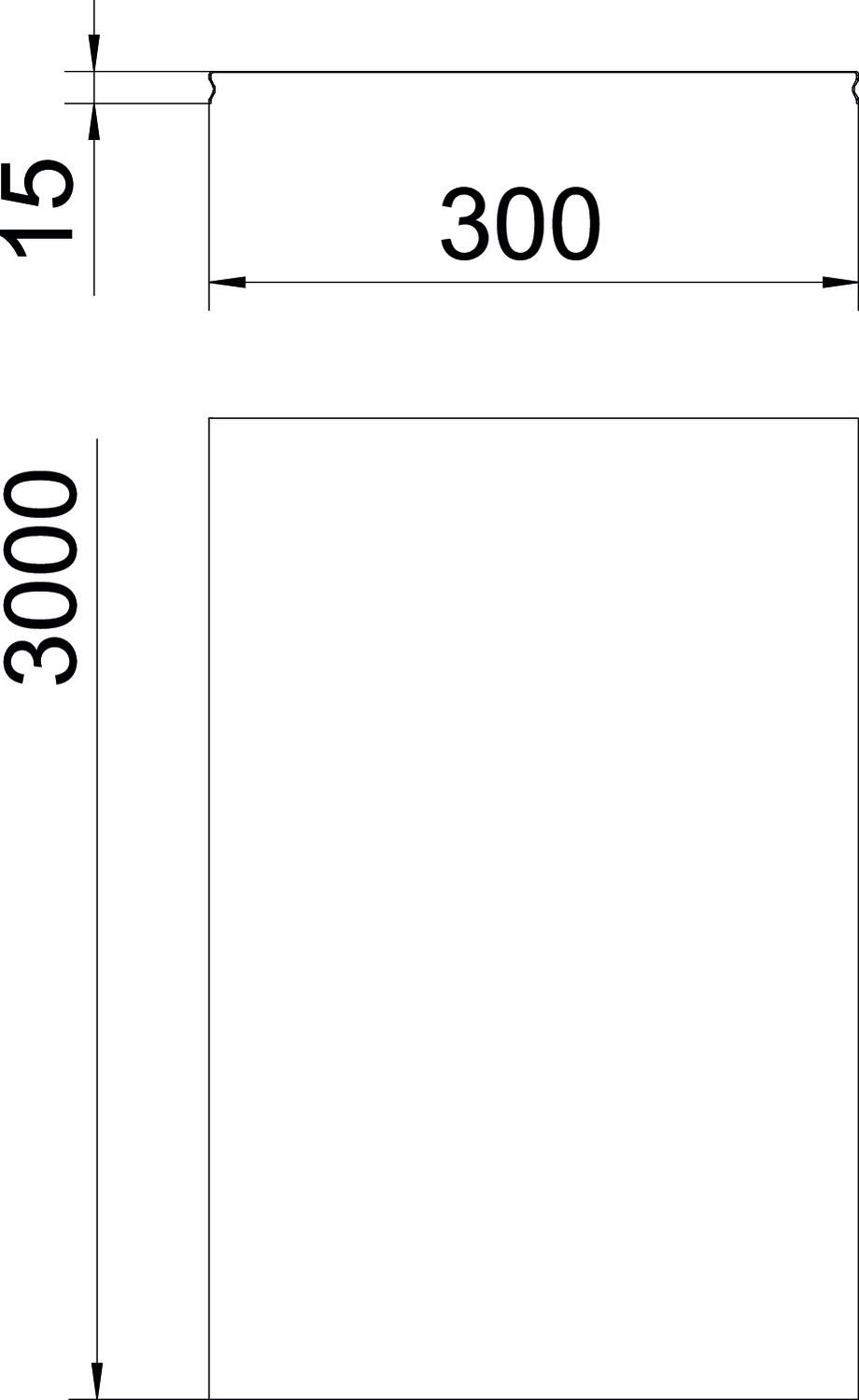

Dimension 300x3000
Dimension B 298 mm
Fastening type Locking
Height 0,59 in
Height 15 mm
Length 3000 mm
Maintain electrical functions no
Material Steel
Plate thickness 0,75 mm
Rustproof steel, pickled no
Suitable for cable ladder no
Suitable for cable tray no
Suitable for mesh cable tray yes
Surface Strip galvanized
Width 298 mm
Width 11,73 in
All types

All types

Types Length Width Plate thickness Item no. Quantity SSU
DGRR 50 FS 3000 mm 50 mm 0.75 mm 6001840
3 m
DGRR 100 FS 3000 mm 98 mm 0.75 mm 6001842
3 m
DGRR 150 FS 3000 mm 148 mm 0.75 mm 6001844
3 m
DGRR 200 FS 3000 mm 198 mm 0.75 mm 6001846
3 m
DGRR 300 FS 3000 mm 298 mm 0.75 mm 6001848
3 m
DGRR 400 FS 3000 mm 398 mm 0.75 mm 6001850
3 m
DGRR 500 FS 3000 mm 498 mm 0.75 mm 6001852
3 m
DGRR 600 FS 3000 mm 598 mm 0.75 mm 6001854
3 m
Accessories

Mounting accessories

Products Types Item no. Quantity SSU
Cover clamp, universal A2 Cover clamp, universal A2 DKU A2 6065600
20 piece
