Cover for mesh cable tray, latchable FT 3000 | 598 | 0.75
morepic-1 morepic-2 video-1 video-2

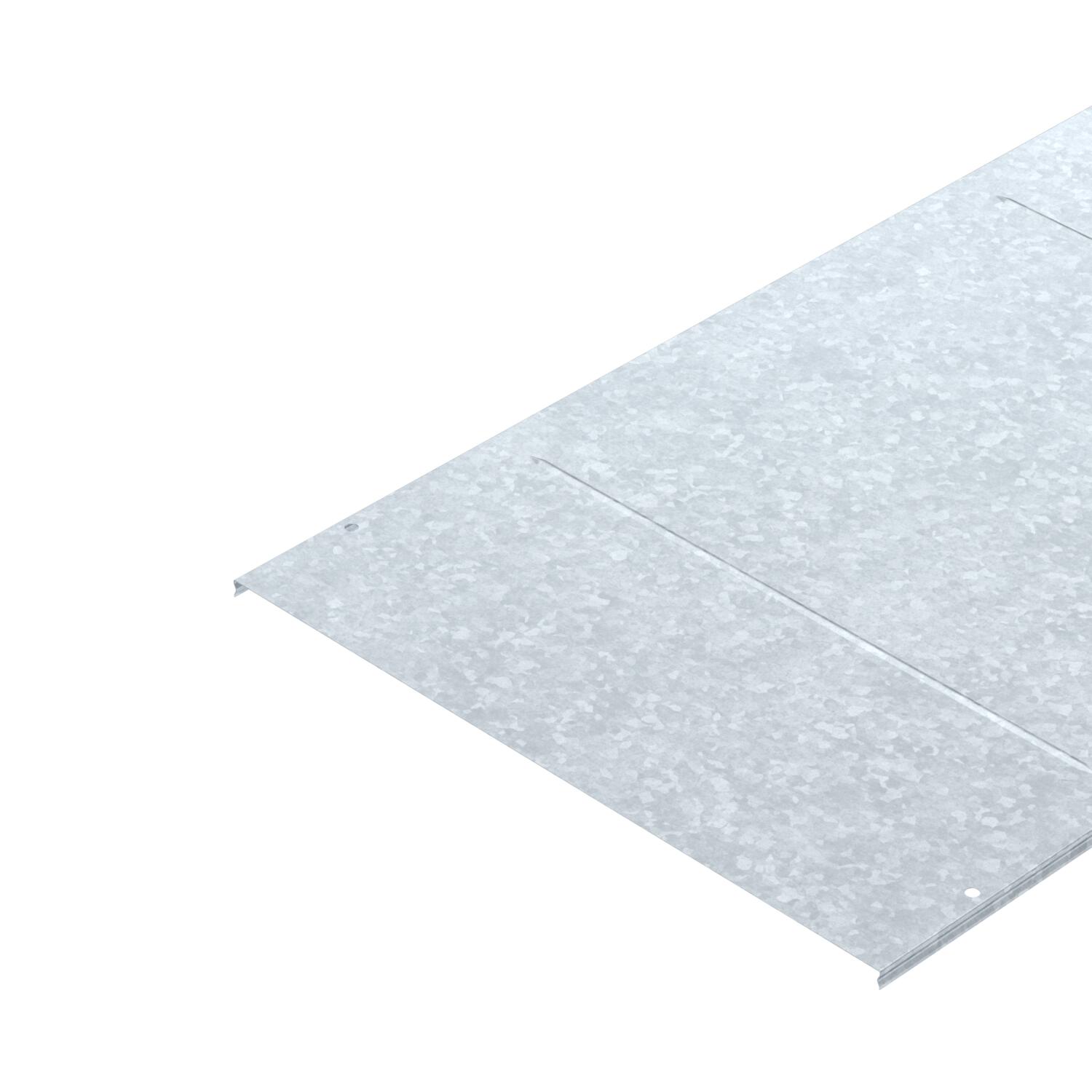

Cover for mesh cable tray, latchable FT

Item no. 6001834 | EAN 4012196687329

3000 mm
0.75 mm
Product description

Product description

Lockable cover for mesh cable trays of type GR and GRM. Protects cables from damage, contamination and moisture from above. Suitable for industrial areas such as mechanical engineering.
When using covers outdoors, additional measures against the influence of wind may need to be taken.
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

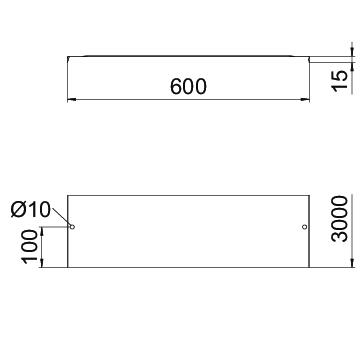

Dimension 600x3000
Dimension B 598 mm
Fastening type Locking
Height 15 mm
Height 0,59 in
Length 3000 mm
Maintain electrical functions no
Material Steel
Plate thickness 0,75 mm
Rustproof steel, pickled no
Suitable for cable ladder no
Suitable for cable tray no
Suitable for mesh cable tray yes
Surface Hot-dip galvanised
Width 598 mm
Width 23,54 in
All types

All types

Types Length Width Plate thickness Item no. Quantity SSU
DGRR 50 FT 3000 mm 50 mm 0.75 mm 6001820
3 m
DGRR 100 FT 3000 mm 98 mm 0.75 mm 6001822
3 m
DGRR 150 FT 3000 mm 148 mm 0.75 mm 6001824
3 m
DGRR 200 FT 3000 mm 198 mm 0.75 mm 6001826
3 m
DGRR 300 FT 3000 mm 298 mm 0.75 mm 6001828
3 m
DGRR 400 FT 3000 mm 398 mm 0.75 mm 6001830
3 m
DGRR 500 FT 3000 mm 498 mm 0.75 mm 6001832
3 m
DGRR 600 FT 3000 mm 598 mm 0.75 mm 6001834
3 m
Accessories

Mounting accessories

Products Types Item no. Quantity SSU
Cover clamp, universal A2 Cover clamp, universal A2 DKU A2 6065600
20 piece
