- Product description
-
Product description

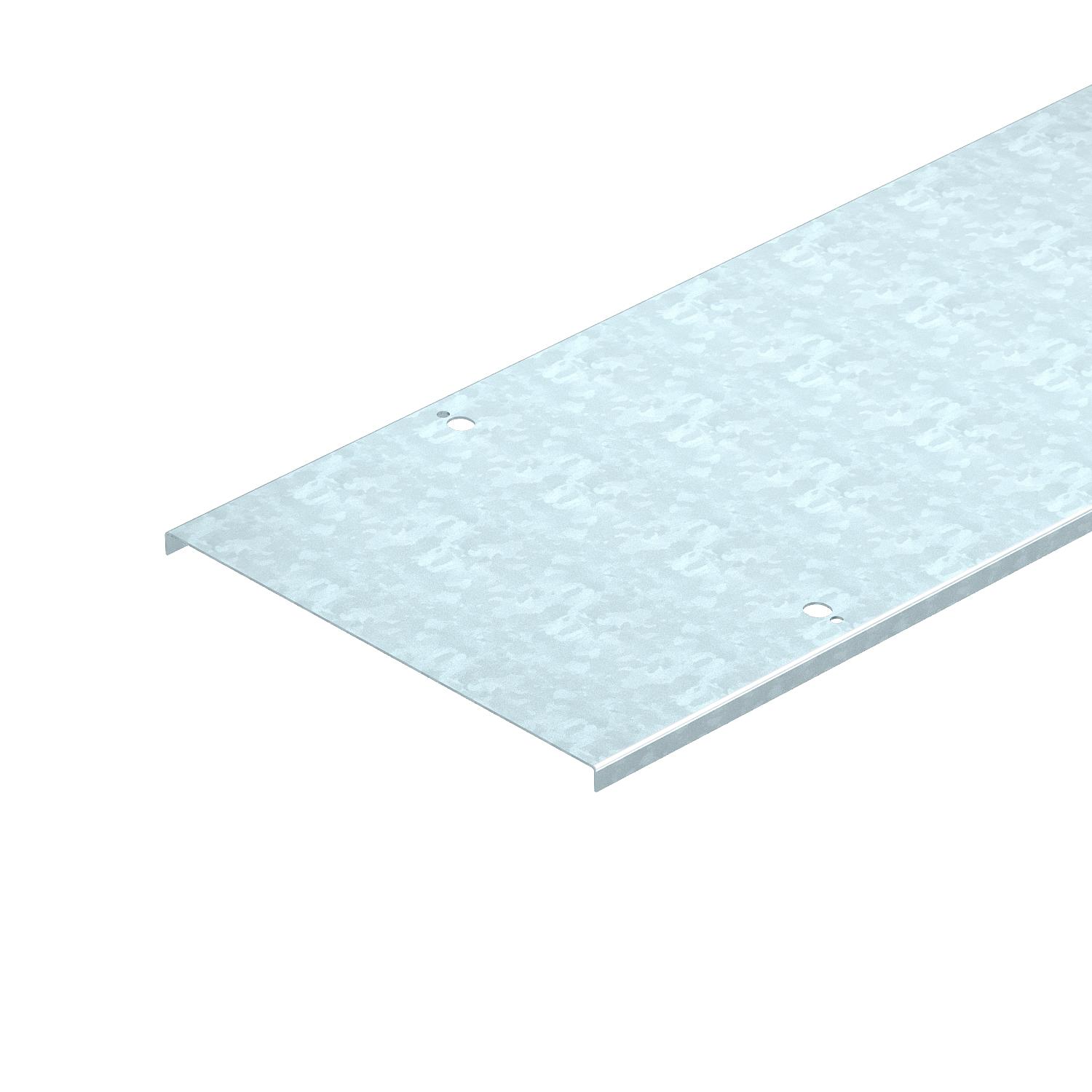

Cover for stand-off mounting. Not suitable for the vertical ladders SLM and SLS.
When using covers outdoors, additional measures against the influence of wind must be taken.
- Technical data
-
Technical data

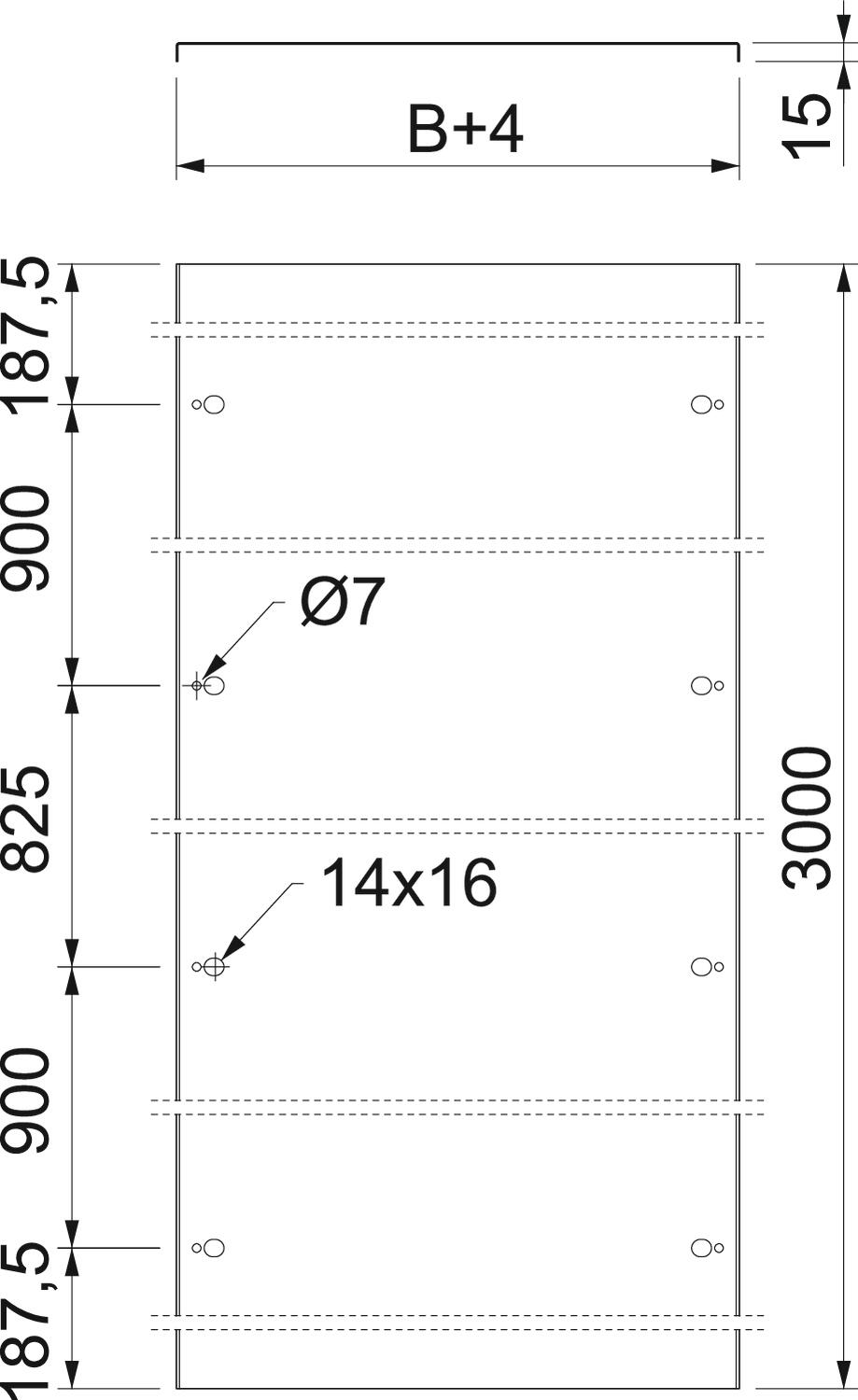

Dimension 230x3000 Length 3000 mm Maintain electrical functions no Material Steel Plate thickness 1,5 mm Rustproof steel, pickled no Suitable for cable ladder yes Suitable for cable tray yes Suitable for mesh cable tray no Surface Hot-dip galvanised Width 230 mm - All types
- Downloads
-
Data sheet DRL FAM 230 FT / 6051222 , 0.20MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfDeclaration of conformity DRL FAM 230 FT / 6051222 , 0.10MB , pdfUK Declaration of Conformity DRL FAM 230 FT / 6051222 , 0.09MB , pdfMounting instructions Mounting instructions, cable ladder systems , 6.45MB , pdfMounting instructions General information on the mounting , 2.61MB , pdf
