Cover for WDK trunking, trunking width 130 mm 2000 | Pure white; RAL 9010
morepic-1

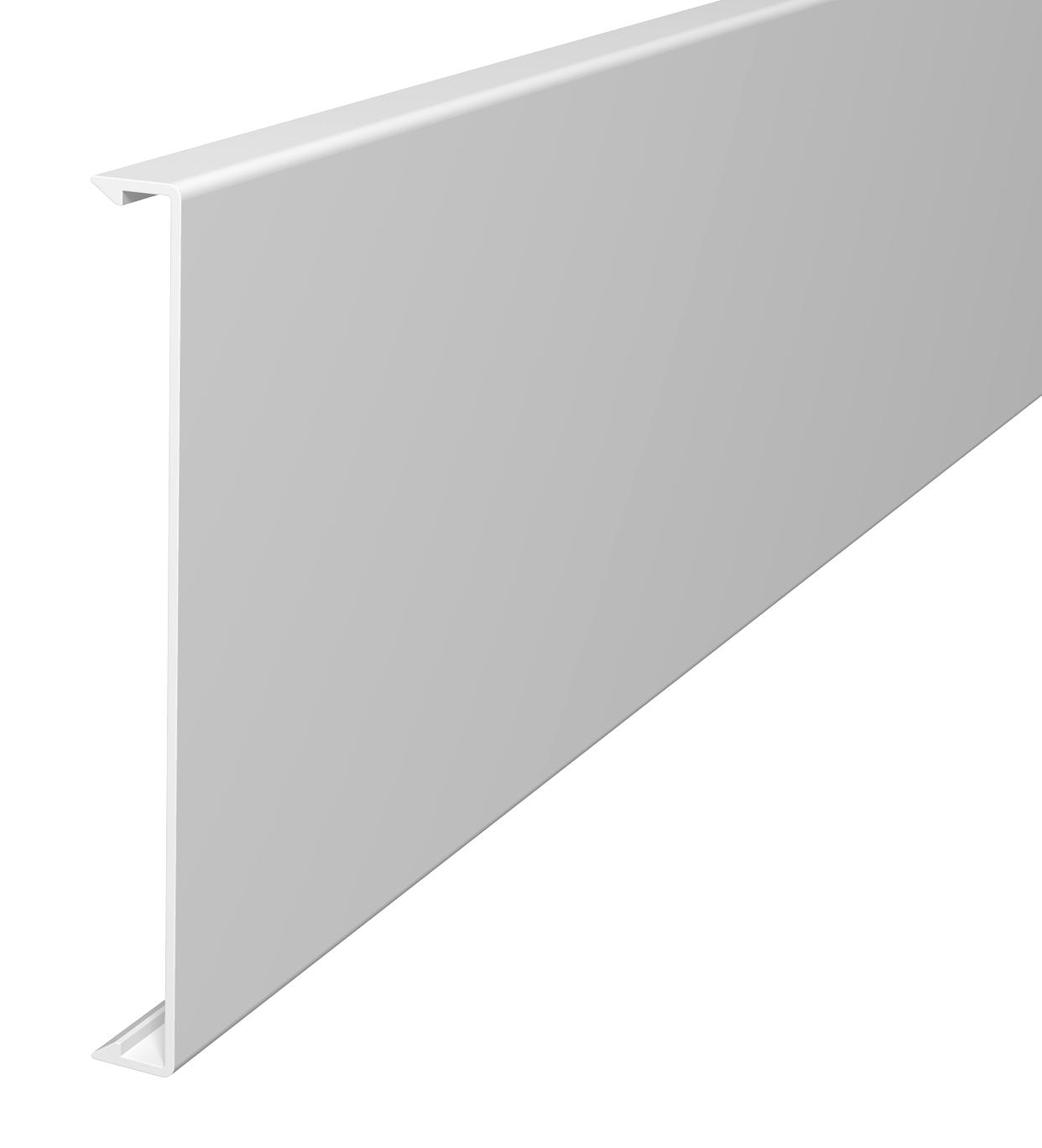

Cover for WDK trunking, trunking width 130 mm

Item no. 6191657 | EAN 4012196502578

2000 mm
Product description

Product description

Cover for closing the trunking.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

Antibacterial treatment no
Colour Pure white; RAL 9010

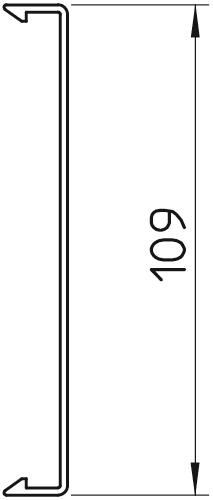

Dimension 130x2000mm
Halogen-free no
Length 2000 mm
Maintain electrical functions no
Material Polyvinylchloride
Permitted temperature range, max. 60 °C
Permitted temperature range, min. -5 °C
Protection rating IP30
Protection rating IK code IK04
Width 130 mm
All types

All types

Types Length Colour Item no. Quantity SSU
2410 130GR 2000 mm Stone grey; RAL 7030 6022723
20 m
2410 130CW 2000 mm Cream; RAL 9001 6027652
20 m
2410 130RW 2000 mm Pure white; RAL 9010 6191657
20 m
Downloads

Download

Download

Declaration of conformity 2410 130RW / 6191657 , 0.13MB , pdf
Download
UK Declaration of Conformity 2410 130RW / 6191657 , 0.14MB , pdf
Download
REACH Declaration of conformity 2410 130RW / 6191657 , 0.12MB , pdf
Download
RoHS Declaration of conformity 2410 130RW / 6191657 , 0.12MB , pdf
Download

Download
Download

No invitation to tender text is available for this product.
