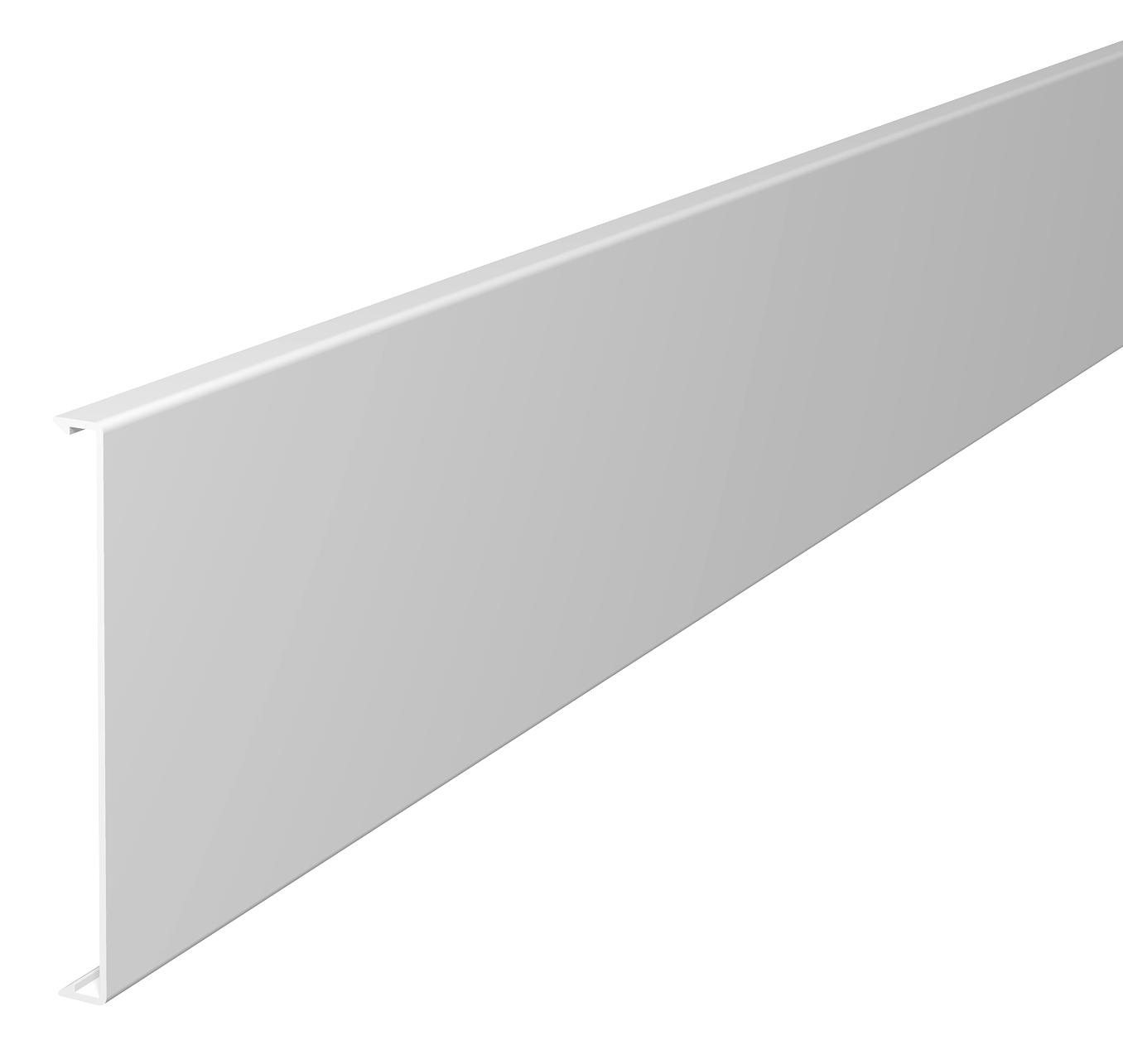

Cover for WDK trunking, trunking width 150 mm

Item no. / Types

Length	2000 mm

Colour

Product description

Product description

Cover for closing the trunking.

Technical data

Antibacterial treatment	no
Colour	Pure white; RAL 9010
Dimension	150x2000mm
Halogen-free	no
Length	2000 mm
Maintain electrical functions	no

Material	Polyvinylchloride
Permitted temperature range, max.	60 °C
Permitted temperature range, min.	-5 °C
Protection rating	IP30
Protection rating IK code	IK04
Width	150 mm

All types

Types	Length	Colour	Item no.	Quantity	SSU
2410 150GR	2000 mm	Stone grey; RAL 7030	6022731	m	36 m
2410 150RW	2000 mm	Pure white; RAL 9010	6191673	m	36 m

Downloads

Data sheet 2410 150RW / 6191673 , 0.16MB , pdf

Catalogue Cable routing systems , 17.62MB , pdf

Declaration of conformity 2410 150RW / 6191673 , 0.13MB , pdf

Download

Mounting instructions Leitungsführungskanal WDK , 6.19MB , pdf

Safety data sheet PVC_Material data , 0.02MB , pdf

No invitation to tender text is available for this product.
