Cover for WDK trunking, trunking width 210 mm 2000 | Cream; RAL 9001
morepic-1 morepic-2

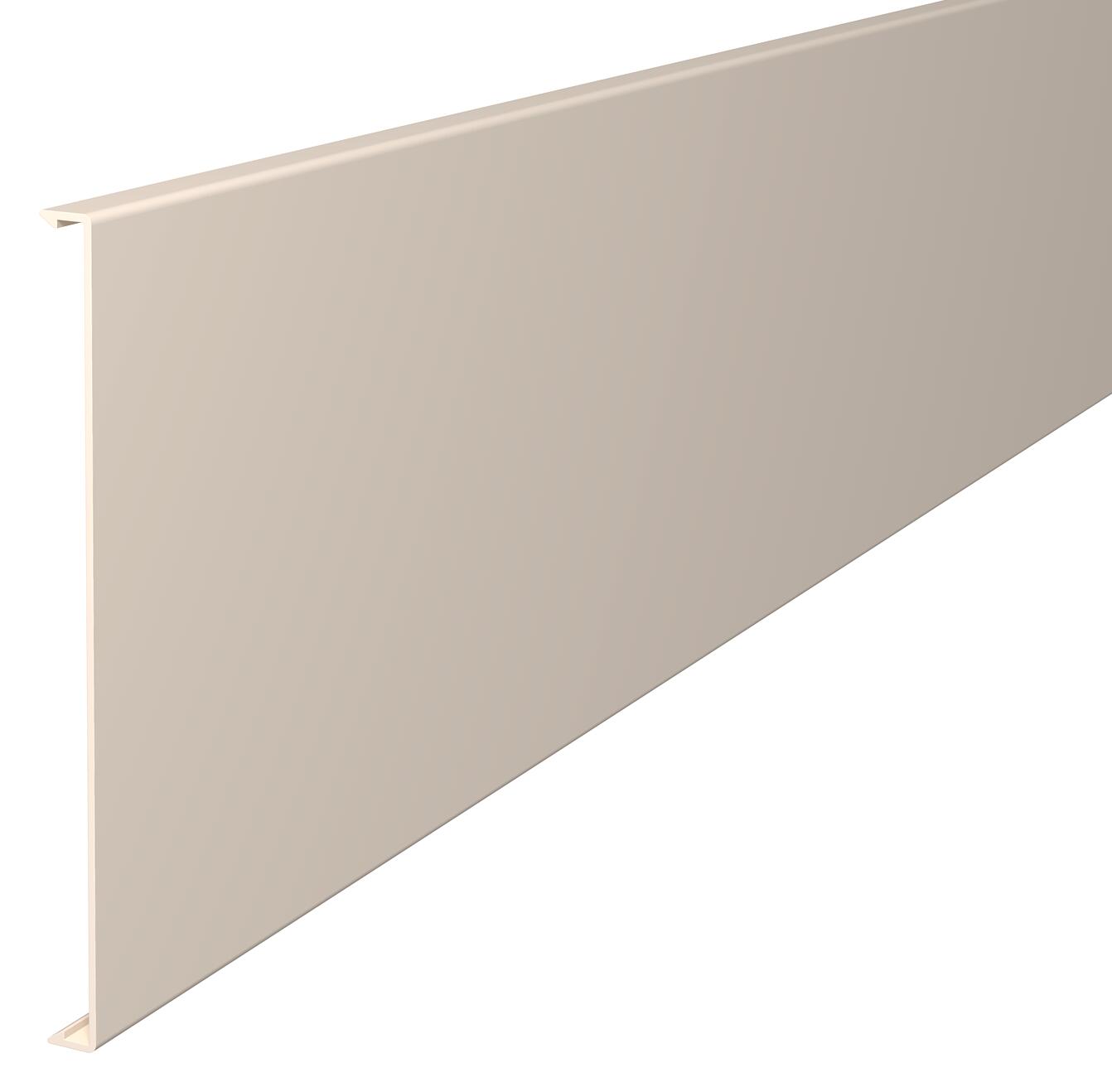

Cover for WDK trunking, trunking width 210 mm

Item no. 6027687 | EAN 4012196031276

2000 mm
Product description

Product description

Cover for closing the trunking.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

Antibacterial treatment no
Colour Cream; RAL 9001
Dimension 210x2000mm
Halogen-free no
Length 2000 mm
Maintain electrical functions no
Material Polyvinylchloride
Permitted temperature range, max. 60 °C
Permitted temperature range, min. -5 °C
Protection rating IP30
Protection rating IK code IK04
Width 210 mm
All types

All types

Types Length Colour Item no. Quantity SSU
2410 210GR 2000 mm Stone grey; RAL 7030 6022774
28 m
2410 210CW 2000 mm Cream; RAL 9001 6027687
28 m
2410 210RW 2000 mm Pure white; RAL 9010 6191738
28 m
Downloads

Download

Download

Declaration of conformity 2410 210CW / 6027687 , 0.13MB , pdf
Download
UK Declaration of Conformity 2410 210CW / 6027687 , 0.14MB , pdf
Download

Download
Download

No invitation to tender text is available for this product.
