Cover for WDK trunking, trunking width 60 mm 2000 | Stone grey; RAL 7030
morepic-1

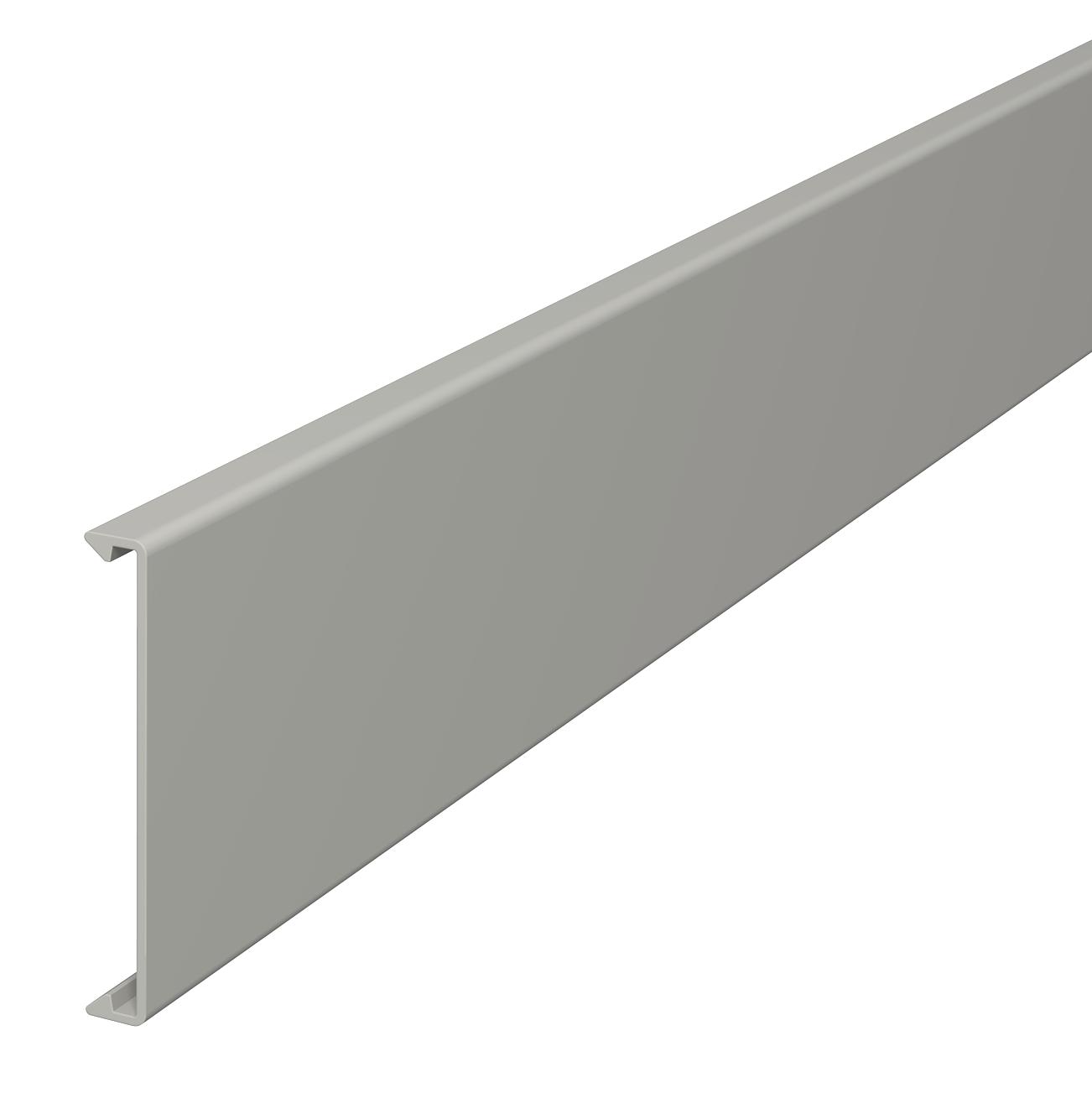

Cover for WDK trunking, trunking width 60 mm

Item no. 6022685 | EAN 4012196023172

2000 mm
Product description

Product description

Cover for closing the trunking.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA Konformitätserklärung
Technical data

Technical data

Antibacterial treatment no
Colour Stone grey; RAL 7030
Dimension 60x2000mm
Halogen-free no
Maintain electrical functions no
Material Polyvinylchloride
Permitted temperature range, max. 60 °C
Permitted temperature range, min. -5 °C
Protection rating IP30
Protection rating IK code IK04

Dimensions

Length 2000 mm
Width 60 mm
All types

All types

Types Length Colour Item no. Quantity SSU
2410 60GR 2000 mm Stone grey; RAL 7030 6022685
2 m
2410 60CW 2000 mm Cream; RAL 9001 6027660
2 m
2410 60LGR 2000 mm Light grey; RAL 7035 6028136
2 m
2410 60RW 2000 mm Pure white; RAL 9010 6191592
2 m
Downloads

Download

Download

Declaration of conformity 2410 60GR / 6022685 , 0.13MB , pdf
Download
UK Declaration of Conformity 2410 60GR / 6022685 , 0.14MB , pdf
Download

Download
Download

No invitation to tender text is available for this product.
