Cover frame AR45-F3, for accessory mounting box 71GD9-2, triple 3 | Horizontal and vertical

Cover frame AR45-F3, for accessory mounting box 71GD9-2, triple

Item no. 6119374 | EAN 4012195889007

Item no. / Types

Number of units	3

Mounting direction

Product description

Product description

Front locking cover frame for Modul 45 devices, triple, without labelling panel for horizontal and vertical device installation, for locking in accessory mounting box 71GD9-2 or in mounting support 71MT3 45-2.
For installation in Rapid 80 device installation trunking and ISS service poles.

Technical data

Technical data

Antibacterial treatment	no
Anzahl der Einheiten vertikal	3
Colour	Black-grey; RAL 7021
Depth	8,5 mm

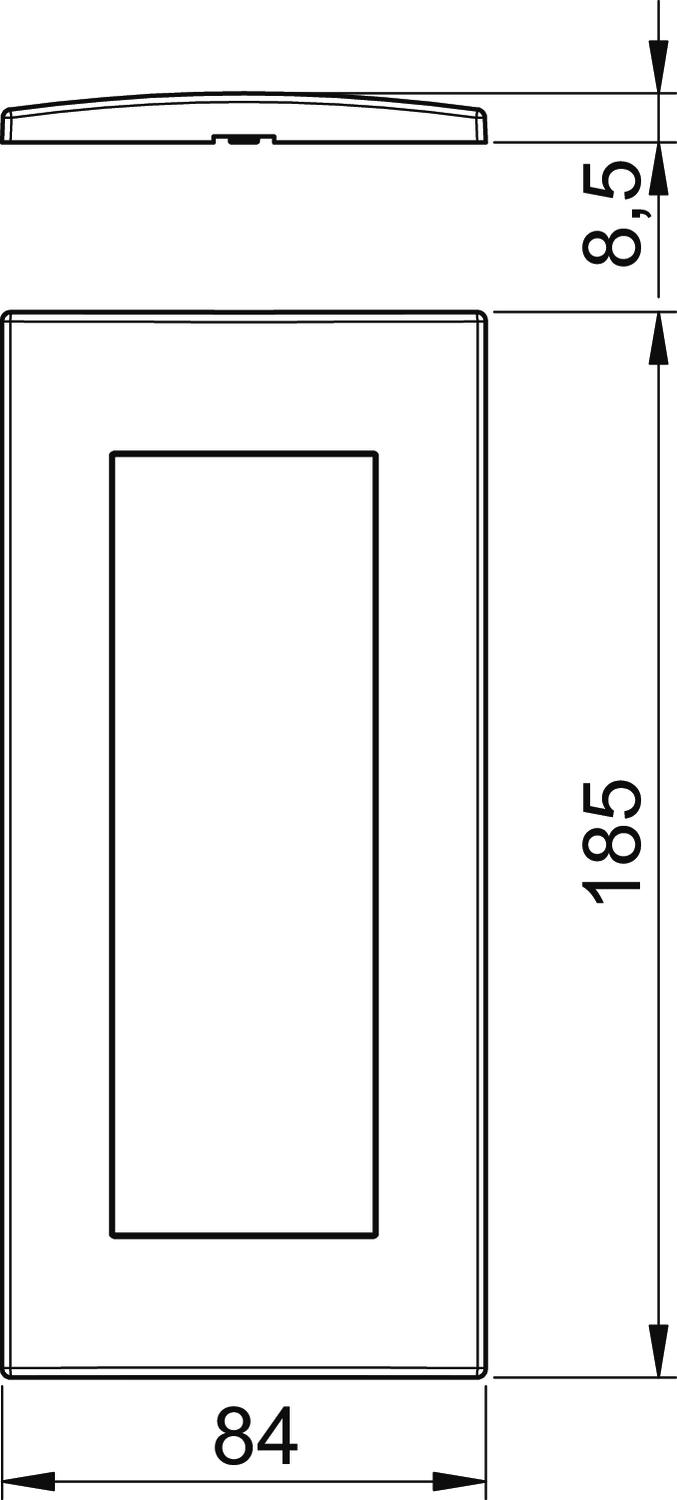

Dimension	84x185mm
Einbaubreite	135 mm
Fastening type	Clamp fastening
Halogen-free	yes
Height	84 mm
Hinged cover	no
Installation height	45 mm
Material	Polycarbonate
Mounting direction	Horizontal and vertical

Number of units	3
Number of units, horizontal	3
Protection rating	Other
Suitable for built-in installations	yes
Suitable for device installation ducts	yes
Suitable for flush-mounted installations	no
Suitable for underfloor duct socket	no
Surface version	Matt
Text field/inscription field	no
Transparent	no
Width	185 mm
With mounting frame	no
