- Product description
-
Product description

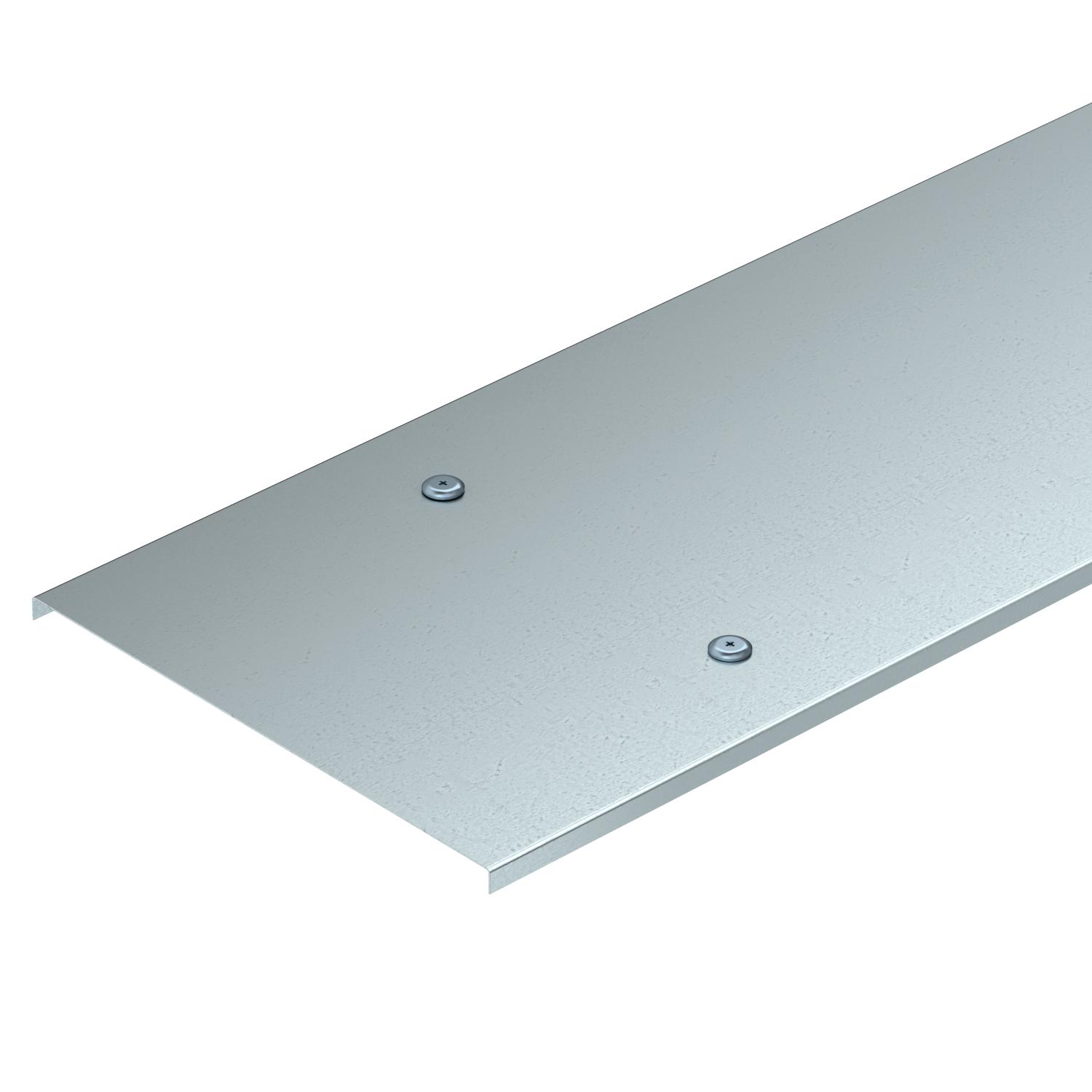

Cover for wide span ladders with the side height of 200 mm.
Take appropriate constructive protection measures if there are high wind speeds.
- Technical data
-
Technical data

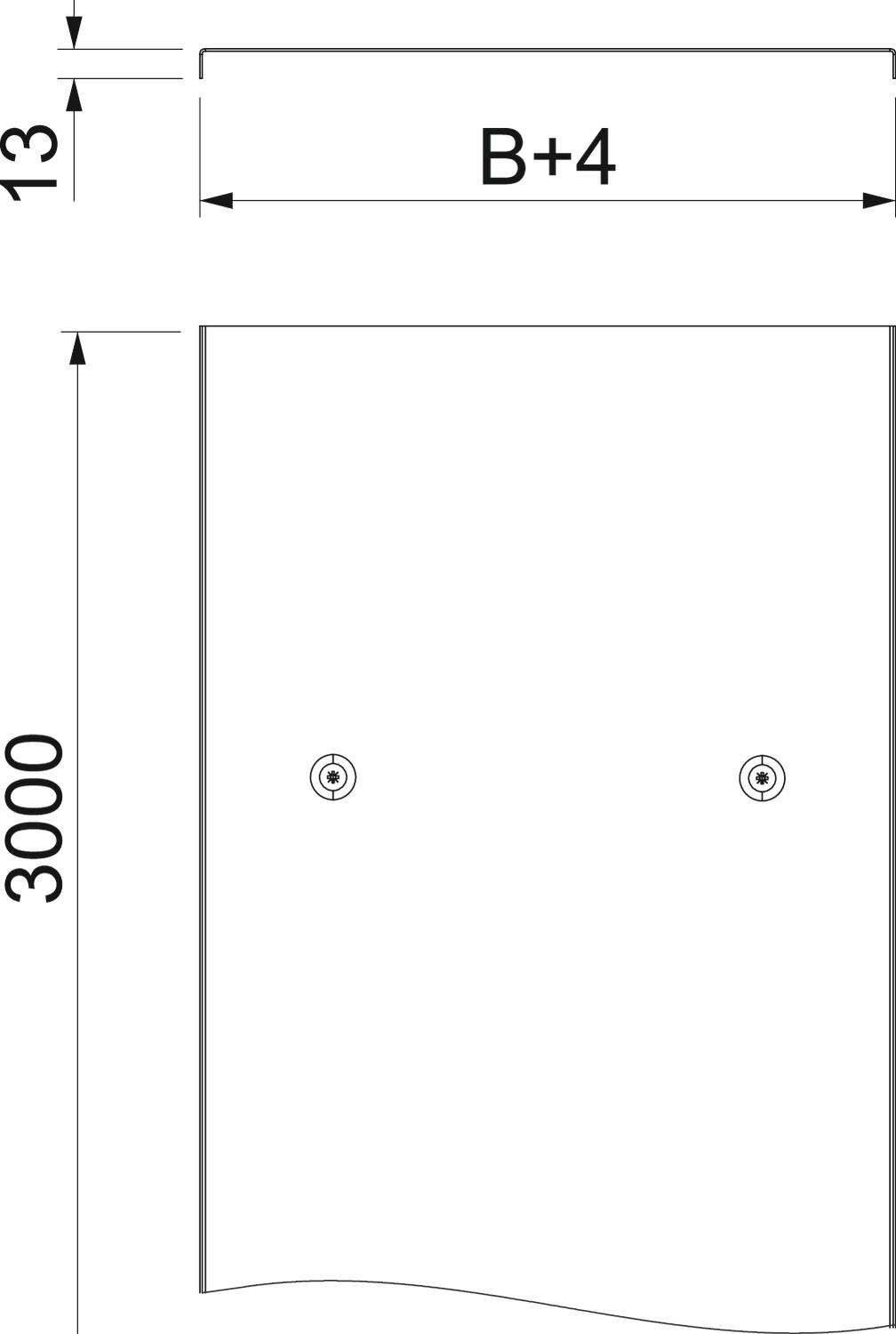

Dimension 200x3000 Dimension B 200 mm Dimension H 15 mm Dimension L 3000 mm Fastening type Sash lock Height 200 mm Length 3000 mm Maintain electrical functions no Material Steel Plate thickness 1,5 mm Rustproof steel, pickled no Suitable for cable ladder yes Suitable for cable tray yes Suitable for mesh cable tray no Surface Strip galvanised zinc/aluminium, Double Dip Width 200 mm - All types
- Downloads
-
Data sheet WKLD 2020 DD / 6232402 , 0.19MB , pdfBrochure Wide span systems , 2.10MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfDeclaration of conformity WKLD 2020 DD / 6232402 , 0.10MB , pdfUK Declaration of Conformity WKLD 2020 DD / 6232402 , 0.09MB , pdfMounting instructions Weitspannkabelrinnen , 10.82MB , pdfMounting instructions Weitspannkabelleitern , 11.33MB , pdfMounting instructions General information on the mounting , 2.61MB , pdf
