Cover PDP, 2-pole, 12 V 12 | 16 | Terminal

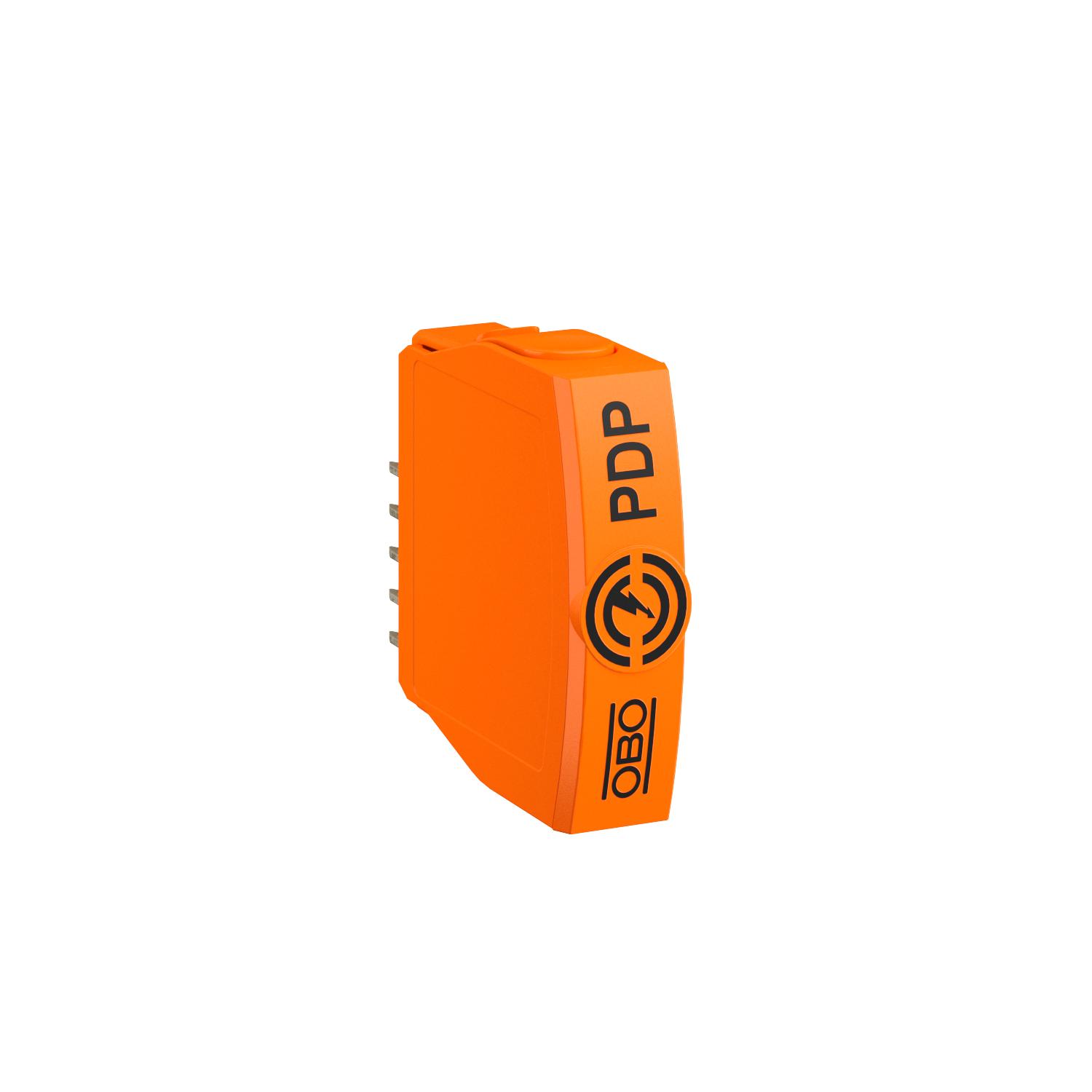

Cover PDP, 2-pole, 12 V

Item no. 5080404 | EAN 4012196745852

Item no. / Types

Maximum continuous voltage AC

Maximum continuous voltage DC

Plug-in system	Terminal

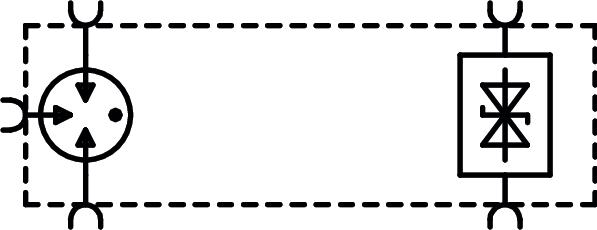

Product description

Product description

Plug-in arrester, plug-in data protection type 1+2/D1+C2 for use in instrumentation, control and automation equipment

• Protection device for multiwire systems

• Frequency range to 100 MHz

• Small width of 12.5 mm

Application: Universal lightning and surge protection for data transmission devices in MCR technology.

Technical data

Technical data

Capacity (wire-earth)	≤30 pF
Capacity (wire-wire)	≤30 pF
Connection cross-section, flexible, max.	1,5 mm²
Connection cross-section, flexible, min.	0,14 mm²
Connection cross-section, multi-wire, max.	2,5 mm²
Connection cross-section, multi-wire, min.	0,14 mm²
Connection cross-section, rigid, max.	2,5 mm²
Connection cross-section, rigid, min.	0,14 mm²
Cut-off frequency	100 MHz
Dimension	12V
Earthing via:	Connection cable / DIN rail

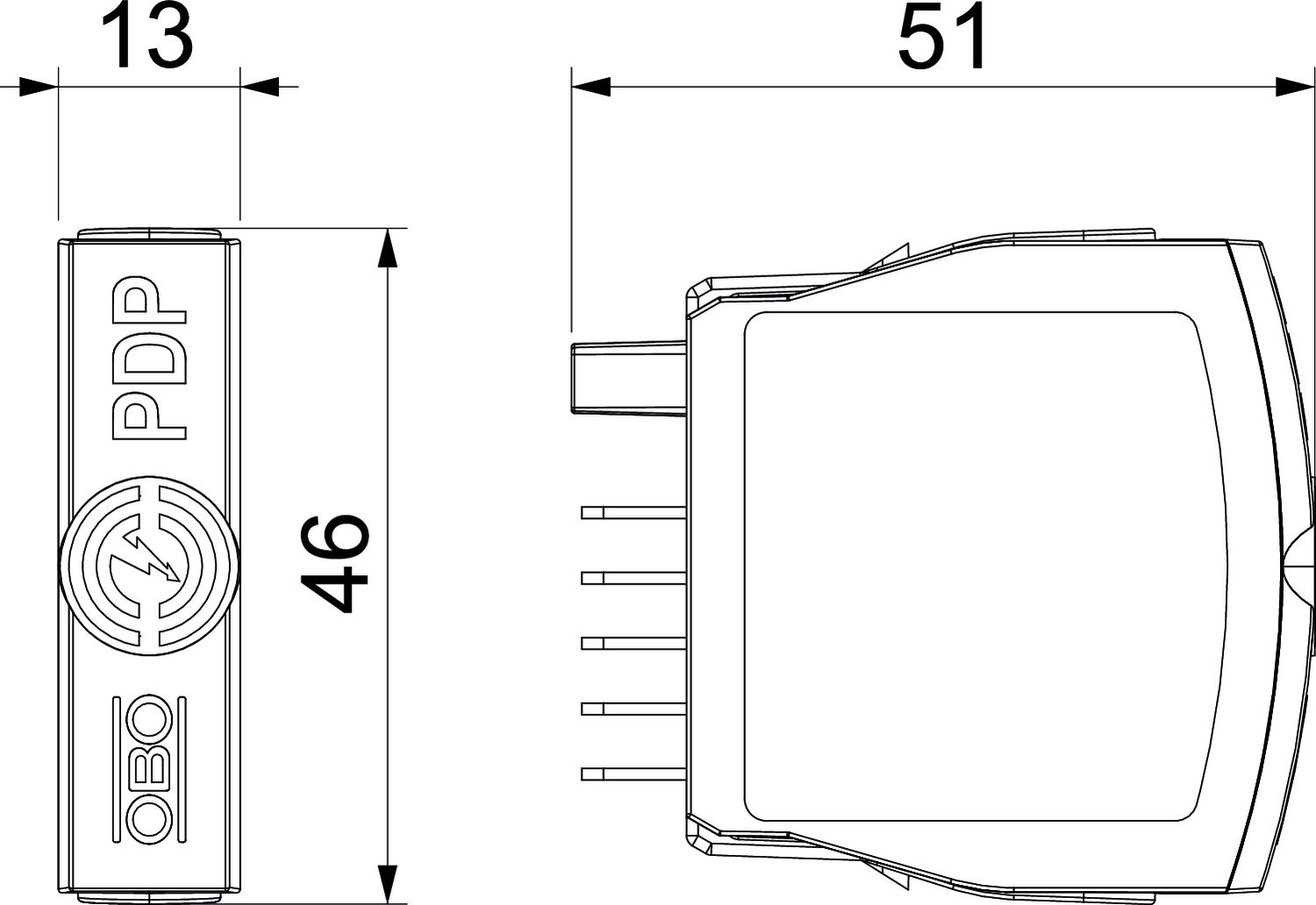

Height	46 mm
Impulse durability wire-earth	10 kV / 5 kA
Impulse durability wire-wire	10 kV / 5 kA
Insertion loss	≤3 dB
Kategorie	Type 1+2 / D1+C2
Length	51 mm
Lengthwise resistance	1.2 ± 5%
Lightning impulse current	2,5 kA
Lightning protection zone LPZ	0→2
Maximum continuous voltage AC	12
Maximum continuous voltage DC	16

Mounting of input / output	Screw terminals
Nominal discharge current (8/20 µs)	10 kA
Nominal load current AC	0,425
Nominal load current DC	0,6 A
Permitted temperature range, max.	80 °C
Permitted temperature range, min.	-40 °C
Plug-in system	Terminal
Protection level wire-wire	130 V
Protection rating	IP20
Screening	Direct
Series resistance per wire	1,2 Ω ± 5%
Shielding connection available	yes
Signalling on device	None
SPD to EN 61643-11	Type 1+2
SPD to IEC 61643-1	Class I+II
SPD to IEC 61643-21	Class I+II / D1+C2
Testing standard	IEC 61643-21
Total discharge current (10/350)	2,5
Total discharge current (8/20)	20 kA
Total impulse durability into C2 (8/20)	20 kA
Width	13 mm

All types

All types

Types	Maximum continuous voltage AC	Maximum continuous voltage DC	Plug-in system	Item no.	Quantity	SSU
PDP-P-2-5	4.2	6	Terminal	5080402	piece	1 piece
PDP-P-2-12	12	16	Terminal	5080404	piece	1 piece
PDP-P-2-24	21	30	Terminal	5080406	piece	1 piece
PDP-P-2-48	37	52	Terminal	5080408	piece	1 piece
