Cover plate, 1.5x, for GESRM2

Item no. 7405427 | EAN 4012196605248

Product description
Product description
Cover plate for GESRM2 to accept 1.5 Modul 45.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

Application Mounting box
Colour Graphite black; RAL 9011
Device type Miscellaneous

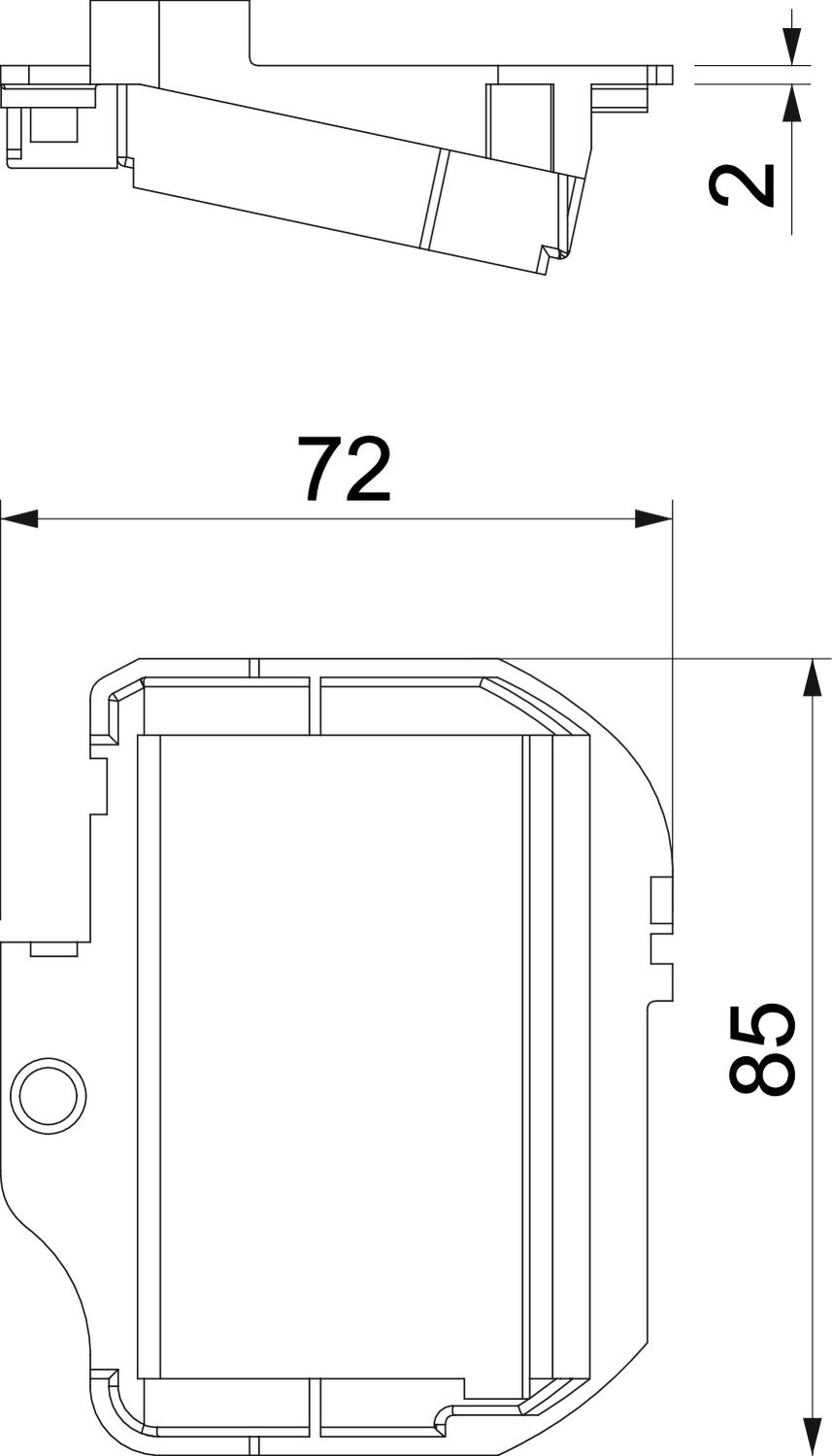

Dimension 72x85x14
Fastening type Lockable
Height 14 mm
Length 72 mm
Material Polyamide
Number of installable devices 1,5
Strain relief option yes
Width 85 mm
All types

All types

Types Item no. Quantity SSU
AP1.5 GESRM2 7405427
10 piece
