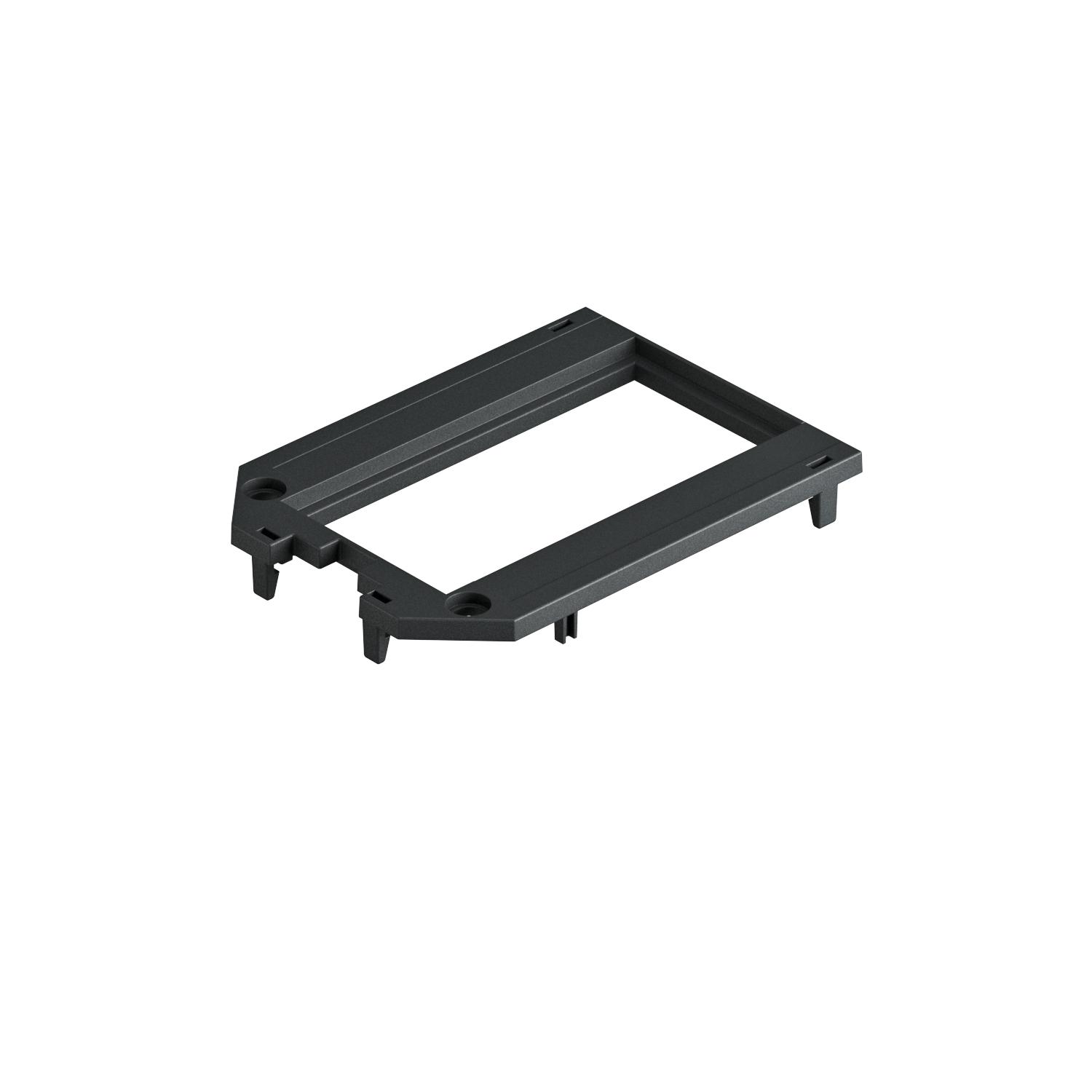

Cover plate for universal support UT3 and UT4, Modul 45® installation opening

Item no. 7408773 | EAN 4012196435364

Product description
Product description
Cover plate for the installation of 2 Modul 45 devices.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Application Mounting box
Blanking lid no
Colour Graphite black; RAL 9011

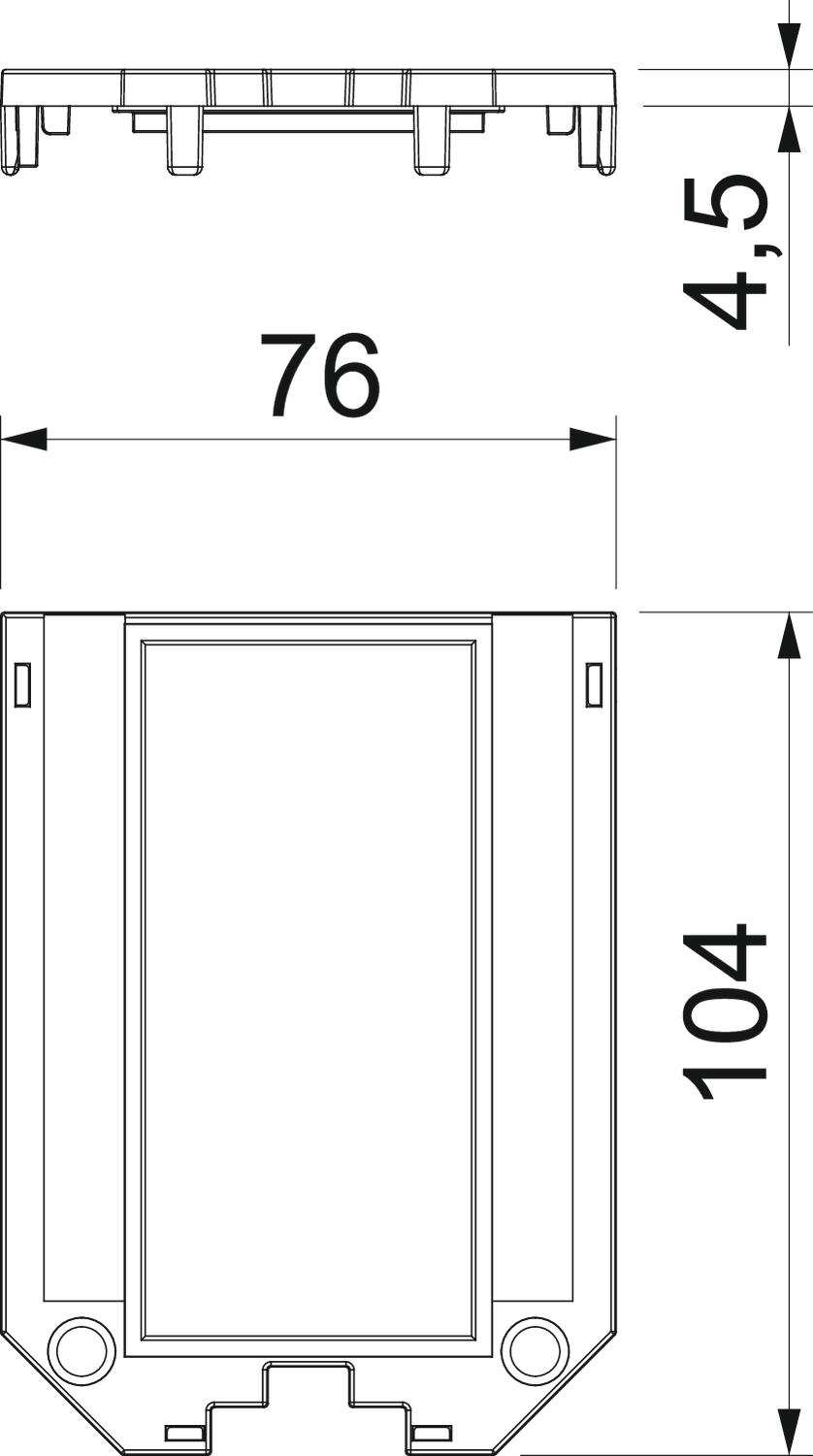

Dimension 104x76x4
Division in UT3 2/3
Division in UT4 2/4
Fastening type Lockable
Installation technology Grid M45
Labelling panel no
Length 104 mm
Material Polyamide
Number of double openings 1
Number of installable devices 2
Suitable for labelling panel no
All types

All types

Types Item no. Quantity SSU
UT34 P2 7408773
10 piece
Downloads

Download

EU declaration of conformity UT34 P2 / 7408773 , 0.13MB , pdf
Download

UT34 P2 / 7408773
