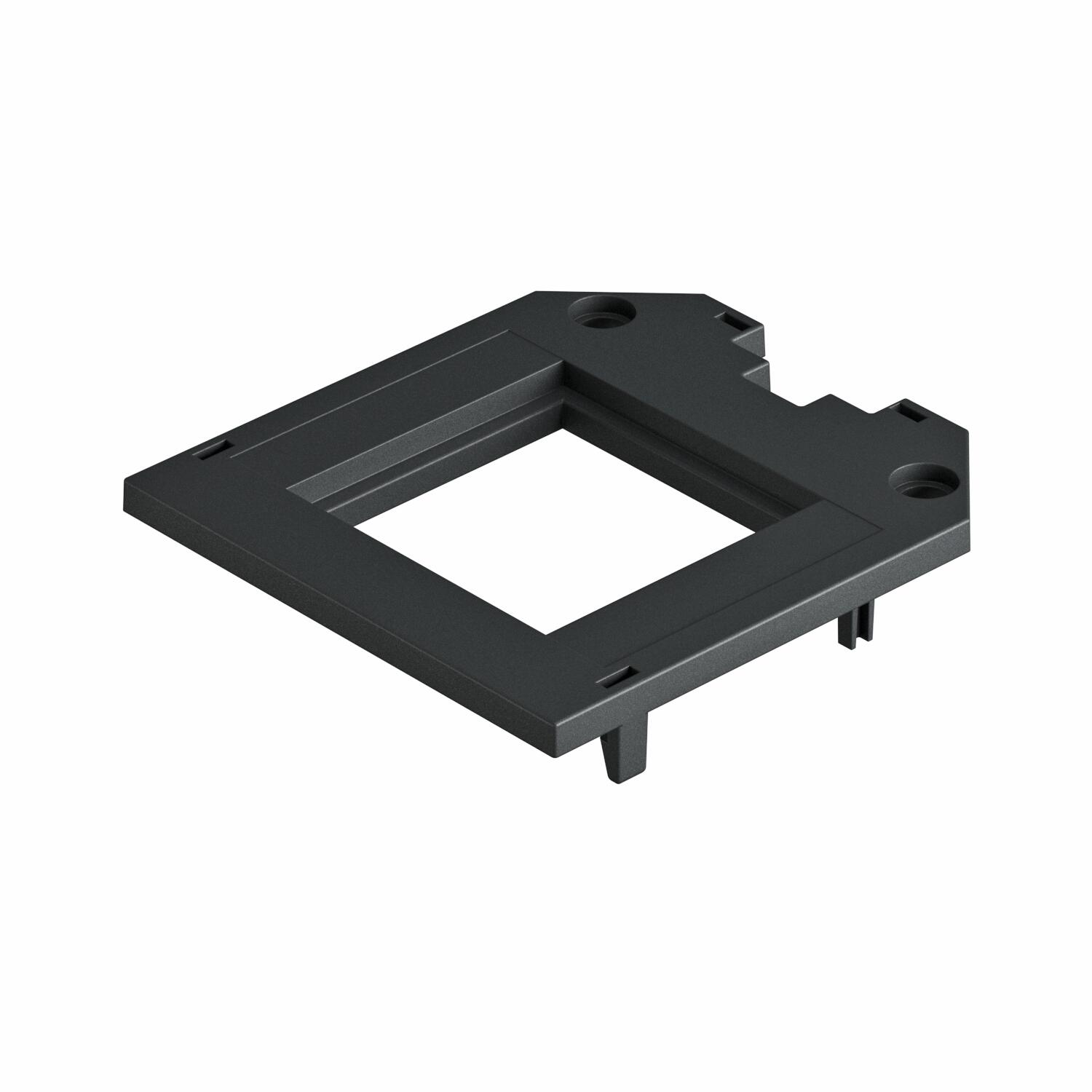

Cover plate for universal support UT3, Modul 45® installation opening

Item no. 7408751 | EAN 4012196435319

Product description
Product description
Cover plate for the installation of 1 Modul 45.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Application Mounting box
Blanking lid no
Colour Graphite black; RAL 9011

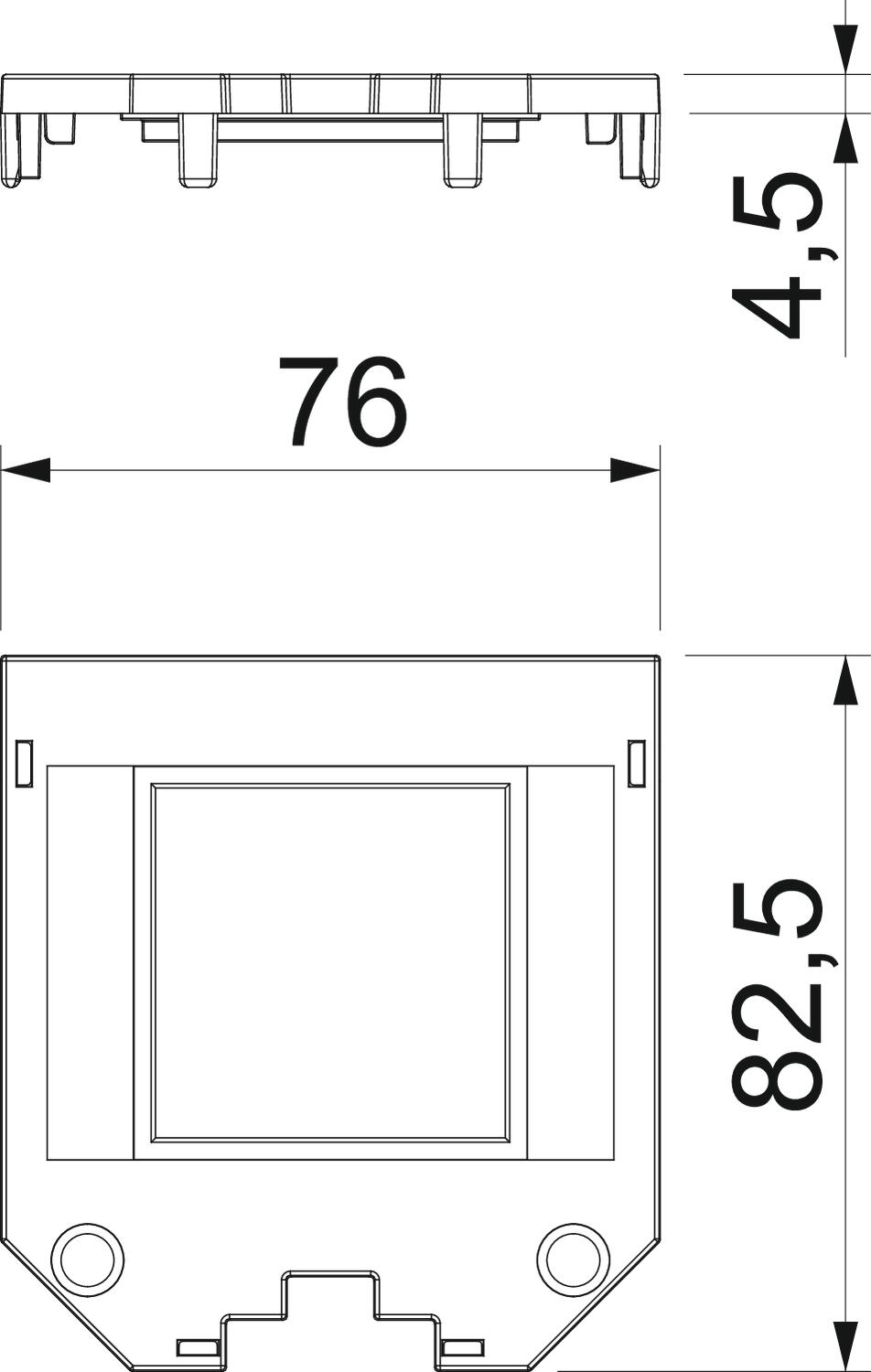

Dimension 82,5x76x4
Division in UT3 1/2
Fastening type Lockable
Height 4,5 mm
Installation technology Grid M45
Labelling panel yes
Length 82,5 mm
Material Polyamide
Number of installable devices 1
Number of single openings 1
Number of square openings 1
Suitable for labelling panel no
Width 76 mm
All types

All types

Types Item no. Quantity SSU
UT3 P1 7408751
10 piece
Downloads

Download

EU declaration of conformity UT3 P1 / 7408751 , 0.13MB , pdf
Download

UT3 P1 / 7408751
