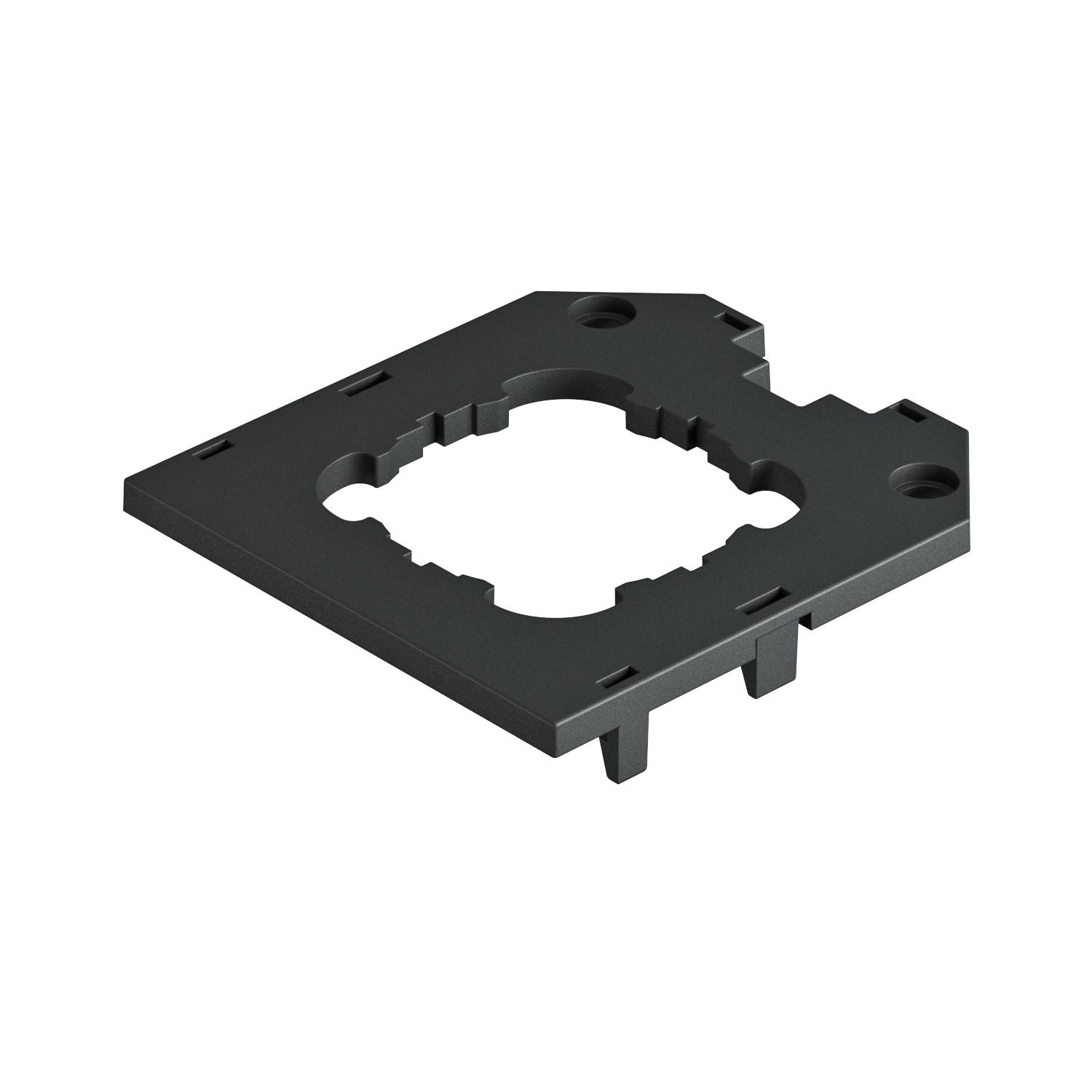

Cover plate for universal support UT3, round installation opening for EKR device
Item no. 7408781 | EAN 4012196435371
- Product description
-
Product description
Cover plate for the installation of 1 installation device with 50 mm central plate.
-
- Technical data
-
Technical data
Application Mounting box Blanking lid no Colour Graphite black; RAL 9011 Dimension 82,5x76x4 Division in UT3 1/2 Fastening type Lockable Installation technology 50 mm central plate Labelling panel no Material Polyamide Number of installable devices 1 Number of round openings 1 Number of single openings 1 Suitable for labelling panel no Dimensions

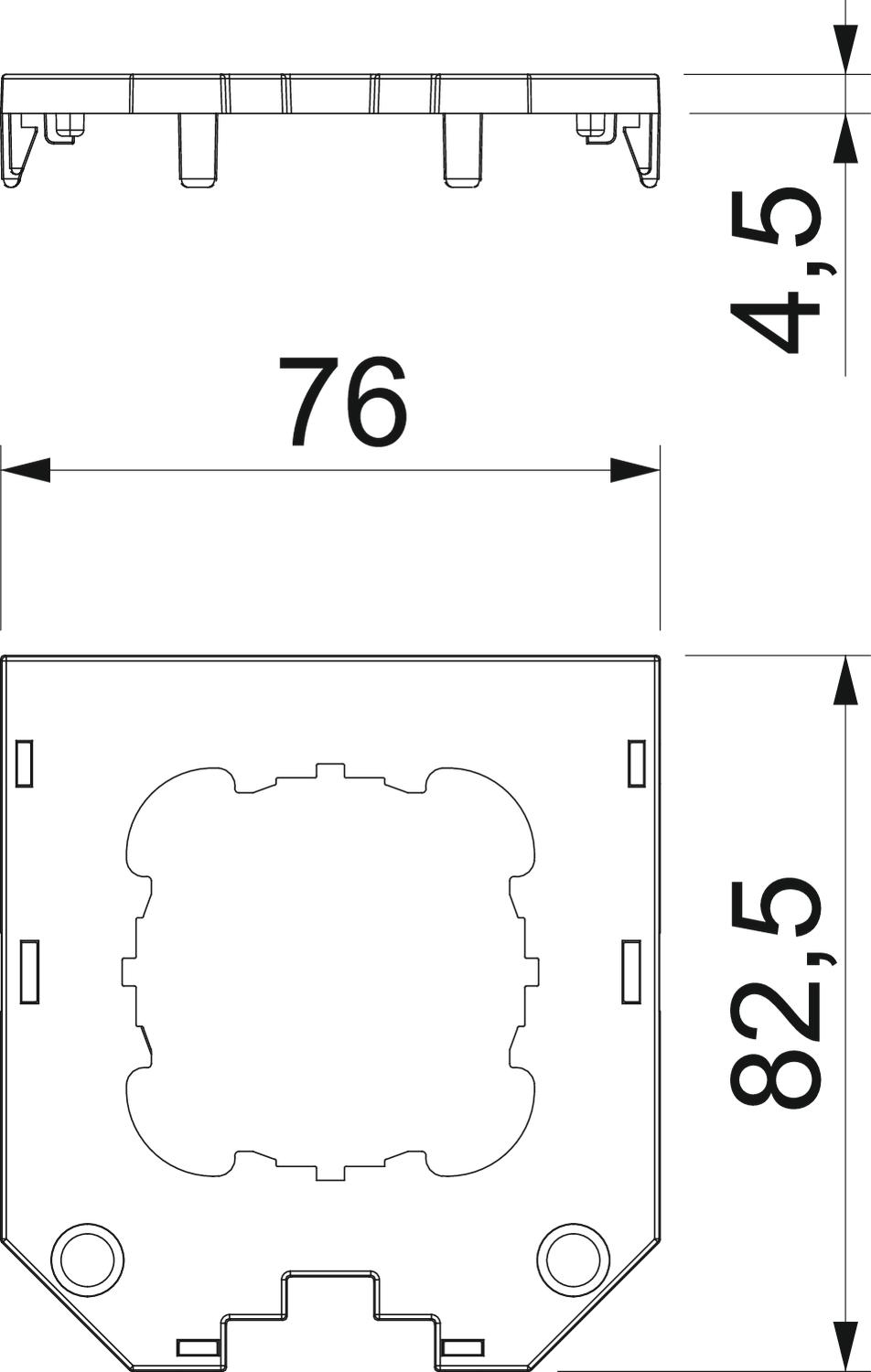

Length 82,5 mm Width 76 mm - All types
- Downloads
-
Data sheet UT3 D1 / 7408781 , 0.17MB , pdfDeclaration of conformity UT3 D1 / 7408781 , 0.13MB , pdfLabel approval VDE symbol approval, GES , 0.12MB , pdfMounting instructions Mounting instructions Universal support , 0.16MB , pdf
