Cover plate for universal support UT4, Modul 45® installation opening

Item no. 7408761 | EAN 4012196435333

Product description
Product description
Cover plate for the installation of 3 Modul 45 devices.


UT34T mounting bridge for the installation of individual devices or socket combinations must be ordered separately.


  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Application Mounting box
Blanking lid no
Colour Graphite black; RAL 9011

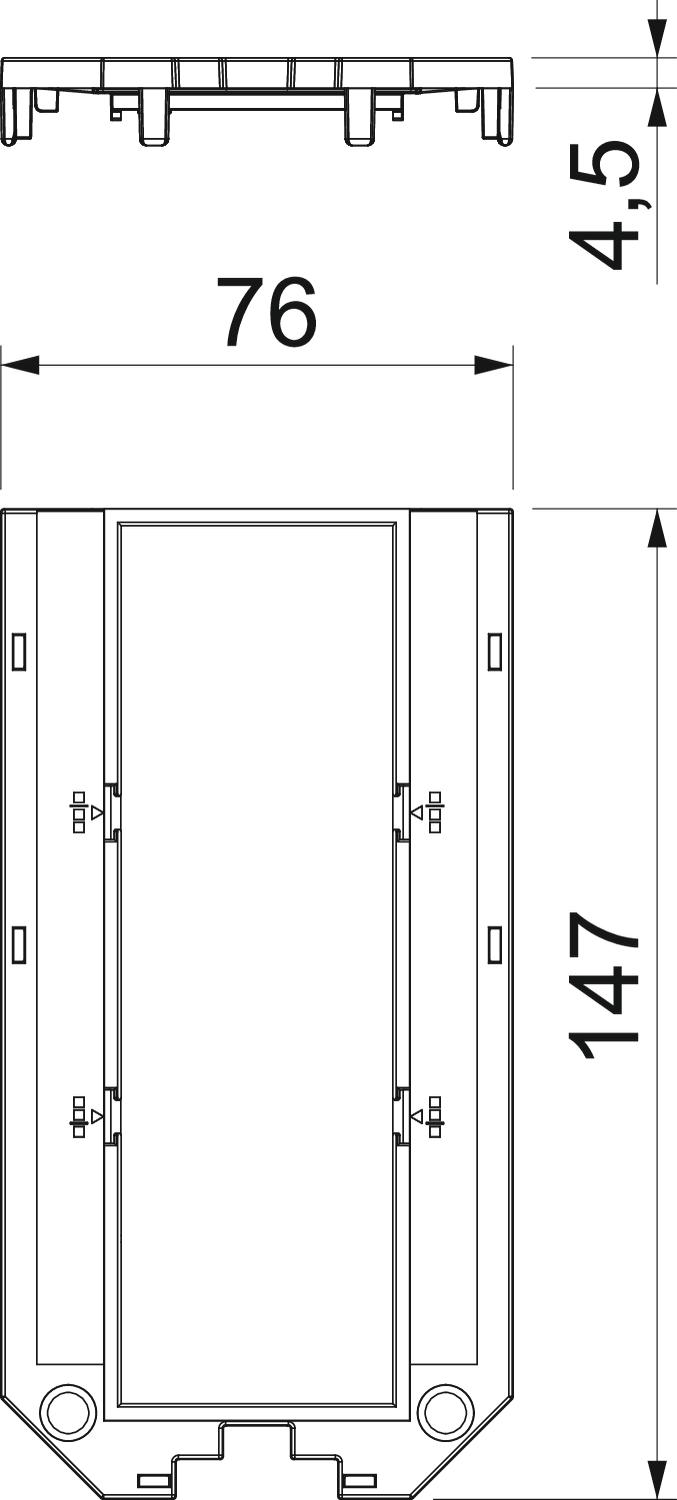

Dimension 147x76x4
Division in UT4 3/4
Fastening type Lockable
Installation technology Grid M45
Labelling panel no
Length 147 mm
Material Polyamide
Number of installable devices 3
Number of triple openings 1
Suitable for labelling panel no
All types

All types

Types Item no. Quantity SSU
UT4 P3 7408761
10 piece
