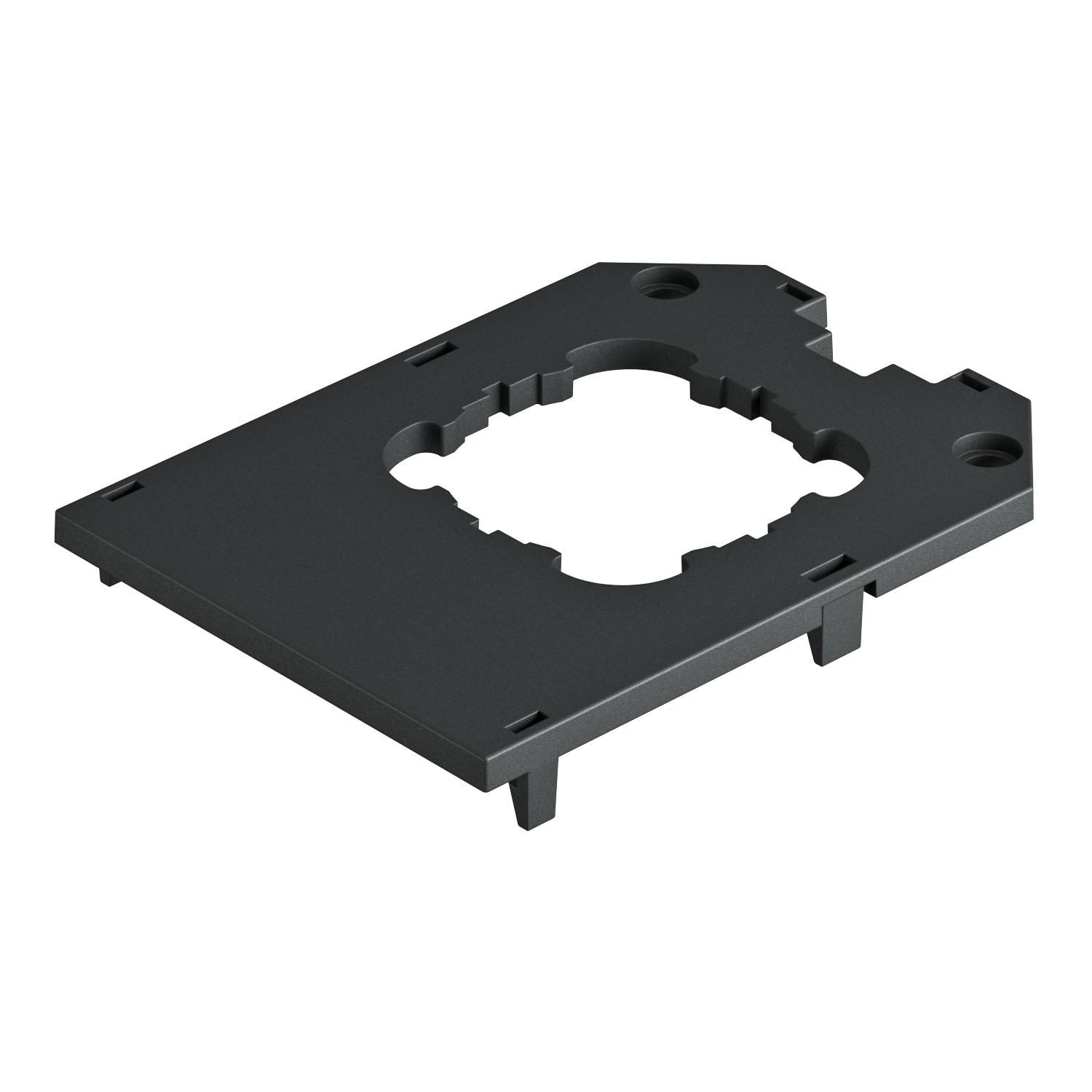

Cover plate for universal support UT4, round installation opening for EKR device

Item no. 7408783 | EAN 4012196435388

Product description

Product description

Cover plate for the installation of 1 installation device with 50 mm central plate.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Application Mounting box
Blanking lid no
Colour Graphite black; RAL 9011

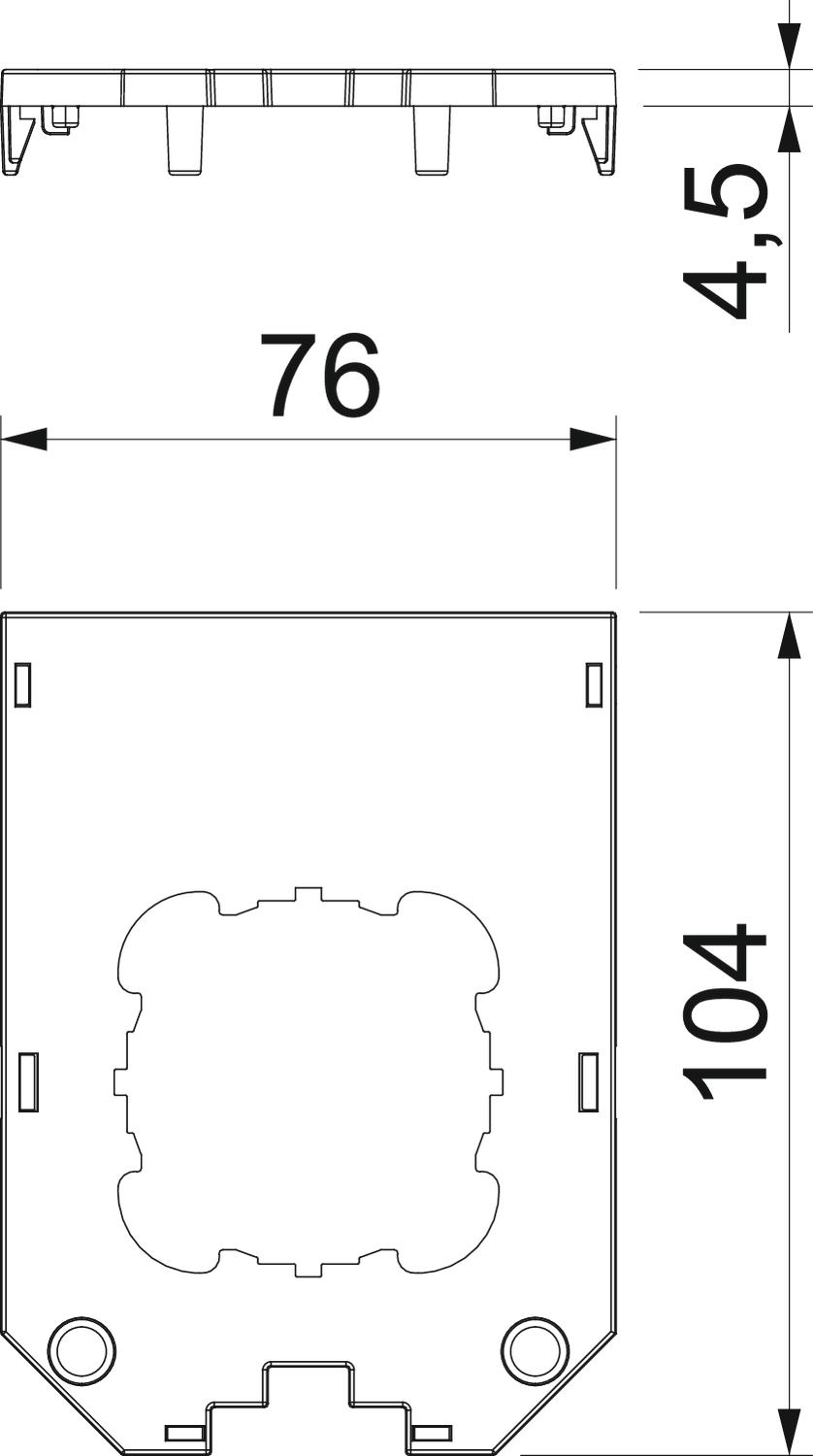

Dimension 104x76x4
Division in UT3 2/3
Division in UT4 2/4
Fastening type Lockable
Installation technology 50 mm central plate
Labelling panel no
Length 104 mm
Material Polyamide
Number of installable devices 1
Number of round openings 1
Number of single openings 1
Suitable for labelling panel no
Width 76 mm
All types

All types

Types Item no. Quantity SSU
UT34 D1 7408783
10 piece
Downloads

Download

Declaration of conformity UT34 D1 / 7408783 , 0.13MB , pdf
Download

UT34 D1 / 7408783
