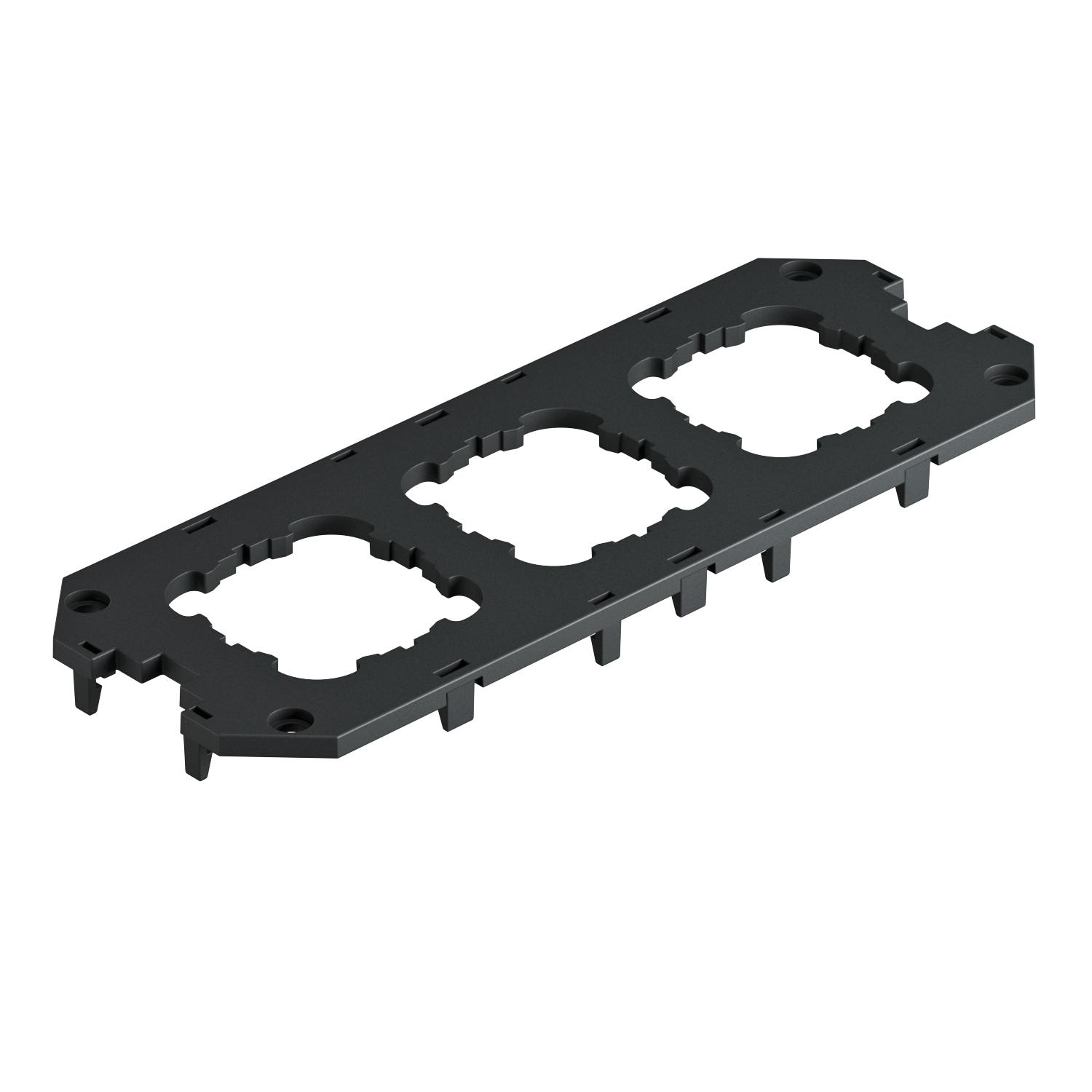

Cover plate for universal support UT4, with installation openings for 3 EK devices

Item no. 7408789 | EAN 4012196483969

Product description
Product description
Cover plate for the installation of 3 installation devices with support clamp (EK version).

  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Application Mounting box
Blanking lid no
Colour Graphite black; RAL 9011

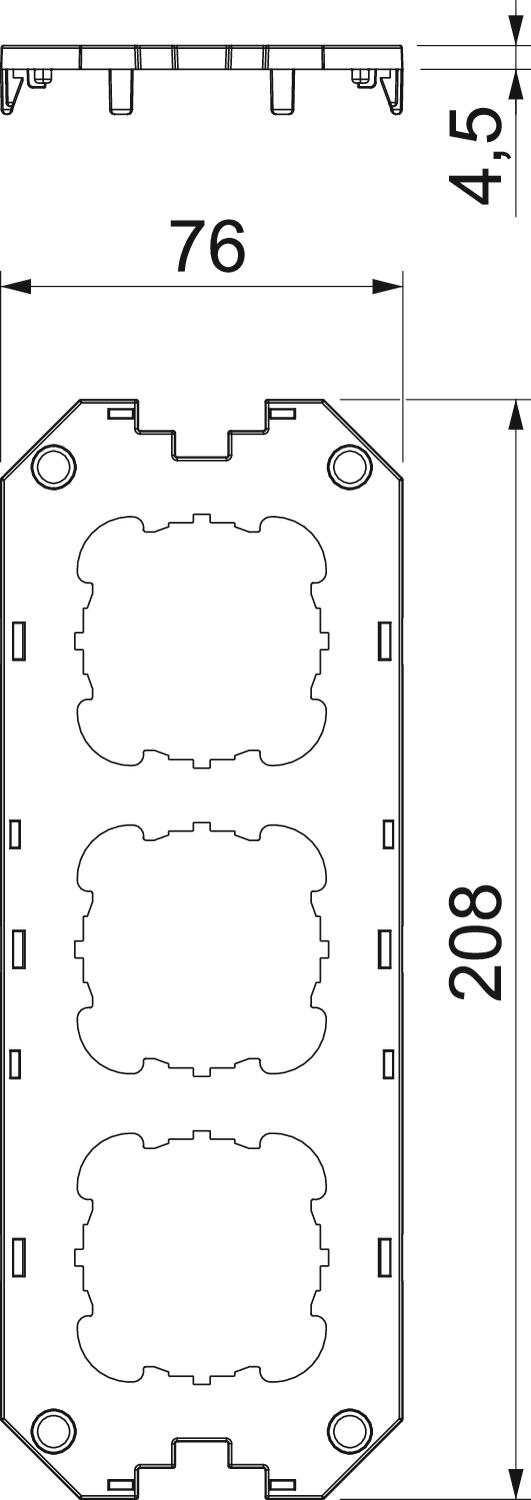

Dimension 28x76x13
Division in UT4 1/1
Fastening type Lockable
Installation technology 50 mm central plate
Labelling panel no
Length 208 mm
Material Polyamide
Number of installable devices 3
Number of round openings 3
Number of triple openings 1
Suitable for labelling panel no
Width 76 mm
All types

All types

Types Item no. Quantity SSU
UT4 D3 7408789
10 piece
