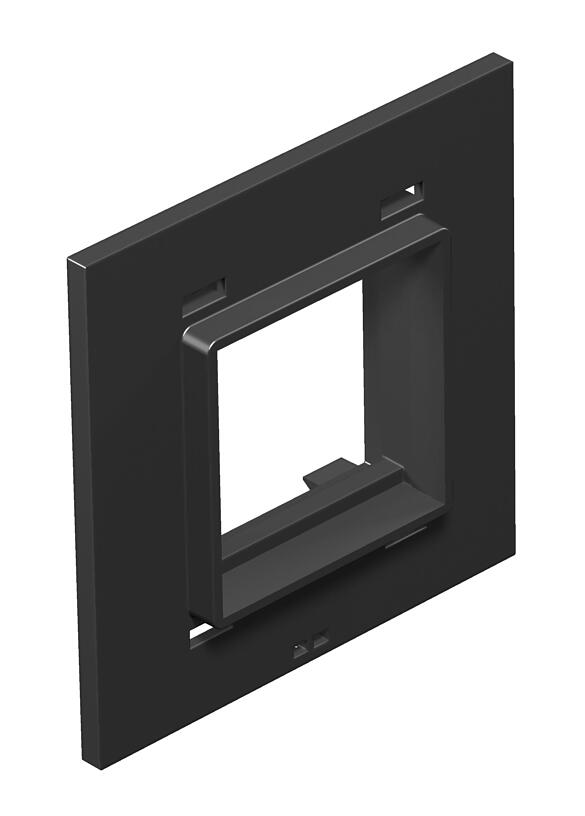

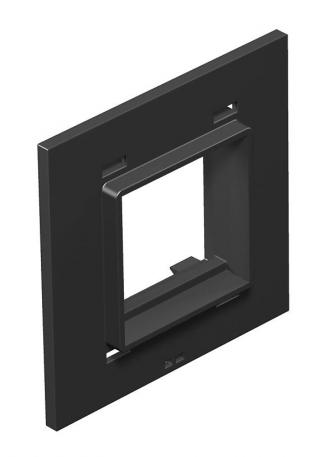

Cover plate, Telitank T4L/T8NL, Modul 45® installation opening

Item no. 7408474 | EAN 4012195115908

Product description
Product description

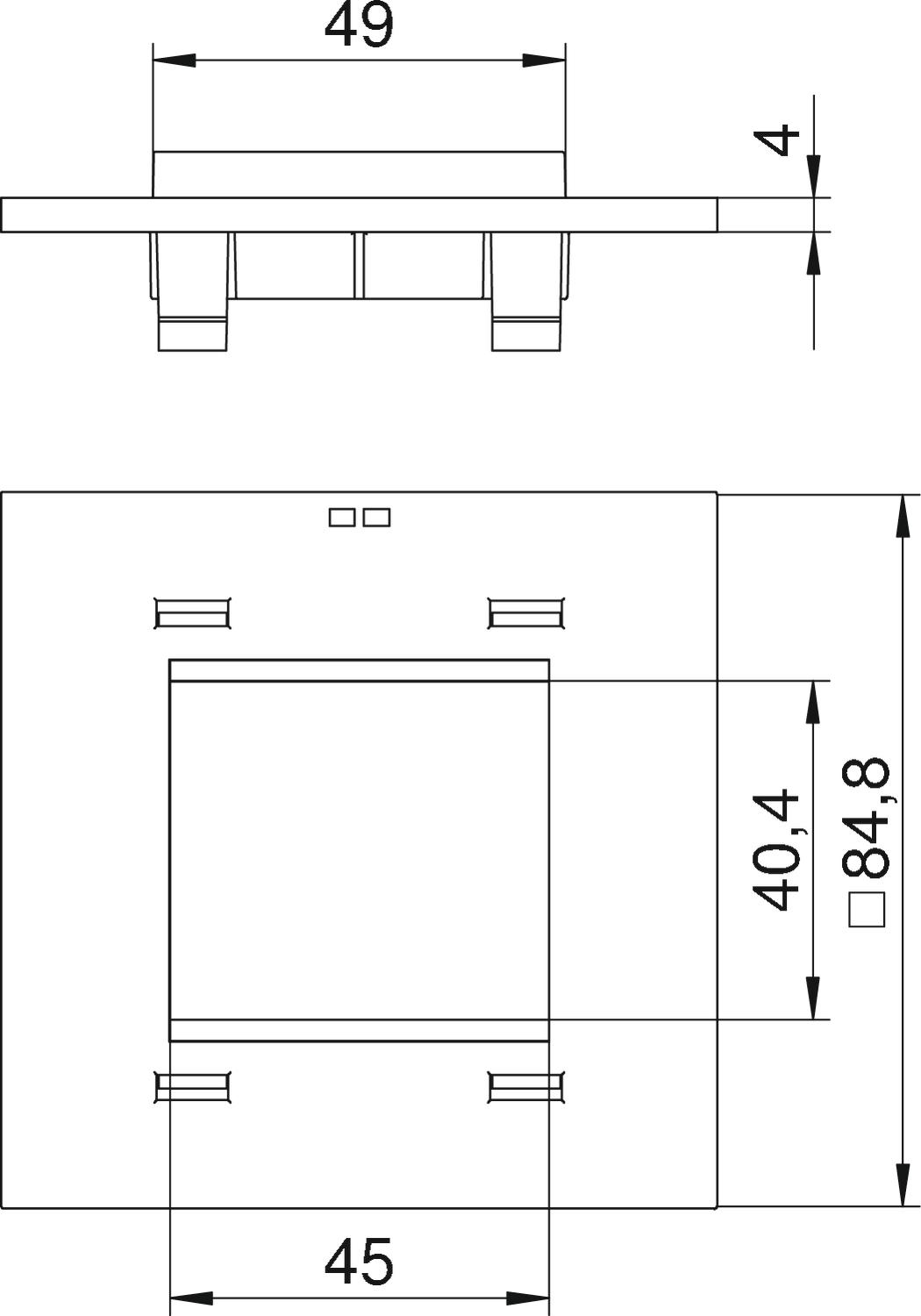

Cover plate with rectangular opening for a single Modul 45 socket, suitable for narrow side of T4L and T8NL or for lengthwise side of T4L and T8NL (1/2 cover).
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Blanking lid no
Colour Graphite black; RAL 9011
Fastening type Lockable
Installation technology Grid M45
Labelling panel no
Length 85 mm
Material Polyamide
Number of single openings 1
Number of square openings 1
Suitable for labelling panel no
Width 85 mm
All types

All types

Types Colour Item no. Quantity SSU
T8NL P45 9011 Graphite black; RAL 9011 7408474
10 piece
T8NL P45 7035 Light grey; RAL 7035 7408478
10 piece
