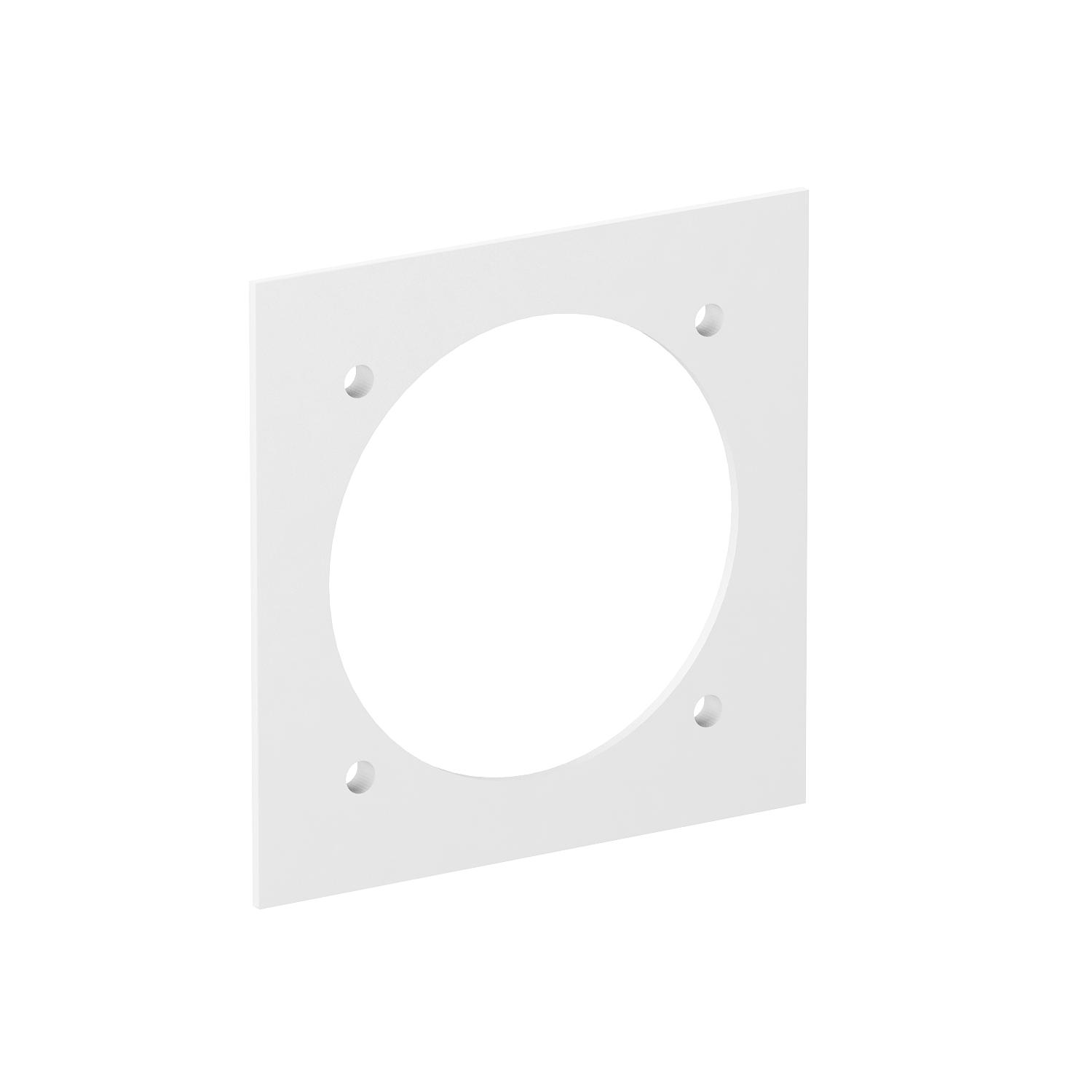

Cover plate VH, for CEE connection unit
Item no. 6109837 | EAN 4012196101559
- Product description
-
Product description

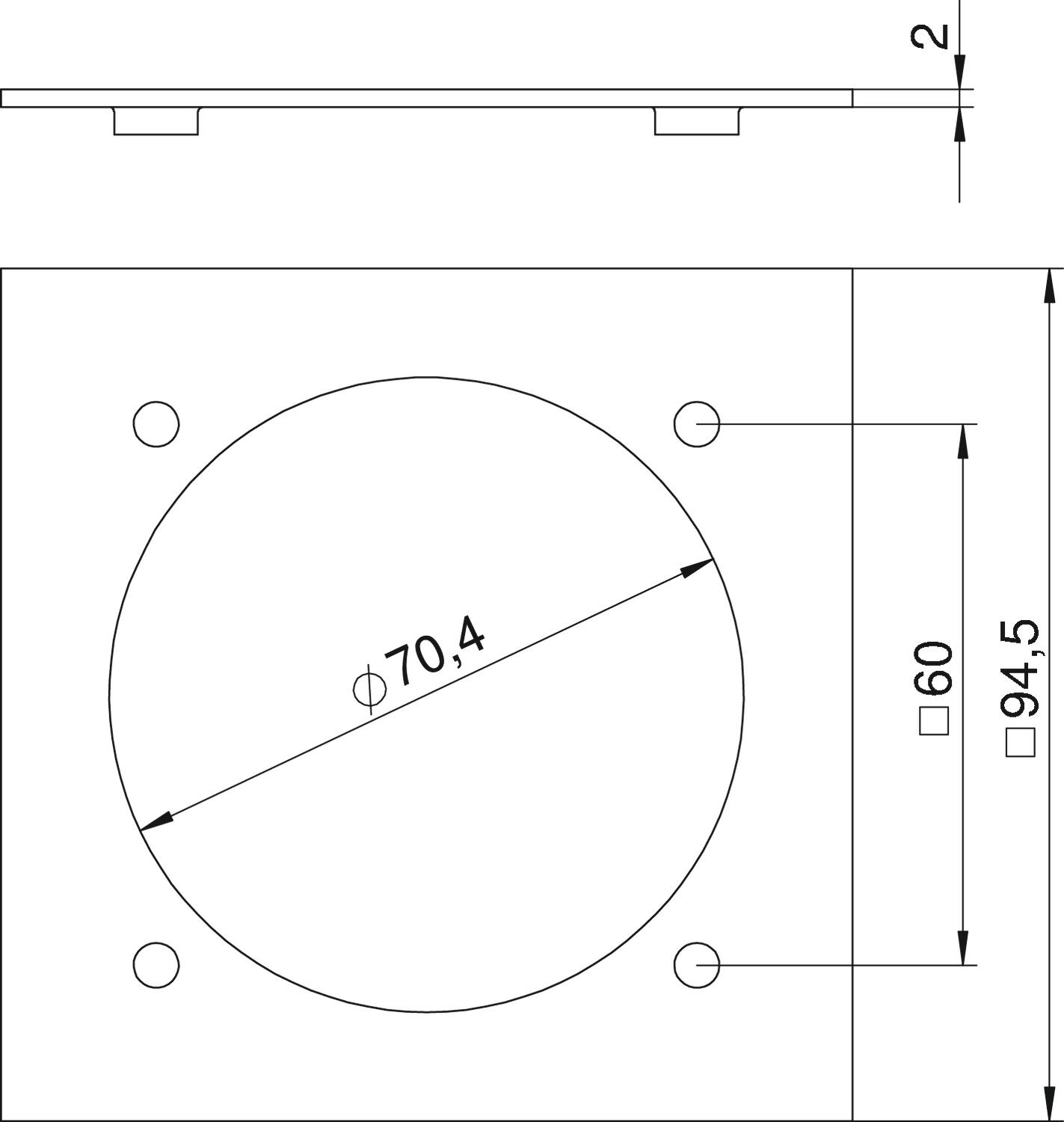

Cover plate with a Ø 70 mm opening for the installation of a CEE socket 16/32 A with 60 mm fastening track, including four fastening screws.
Information on equipment:
Max. 2 CEE sockets 16/32 A in a power supply unit VH-4
Max. 4 CEE sockets 16/32 A in a power supply unit VH-8
-
- Technical data
-
Technical data
Blanking lid no Colour Pure white; RAL 9010 Dimension 95x95mm Fastening type Screw-on Halogen-free yes Height 94,5 mm Installation technology CEE 60x60 mm Material Polyamide Number of units 1 Opening shape Round Protection rating IP20 Width 94,5 mm - All types
