Cover plate VHF, for CEE connection unit
morepic-1 morepic-2

Cover plate VHF, for CEE connection unit

Item no. 6109865 | EAN 4012195125501

Product description
Product description

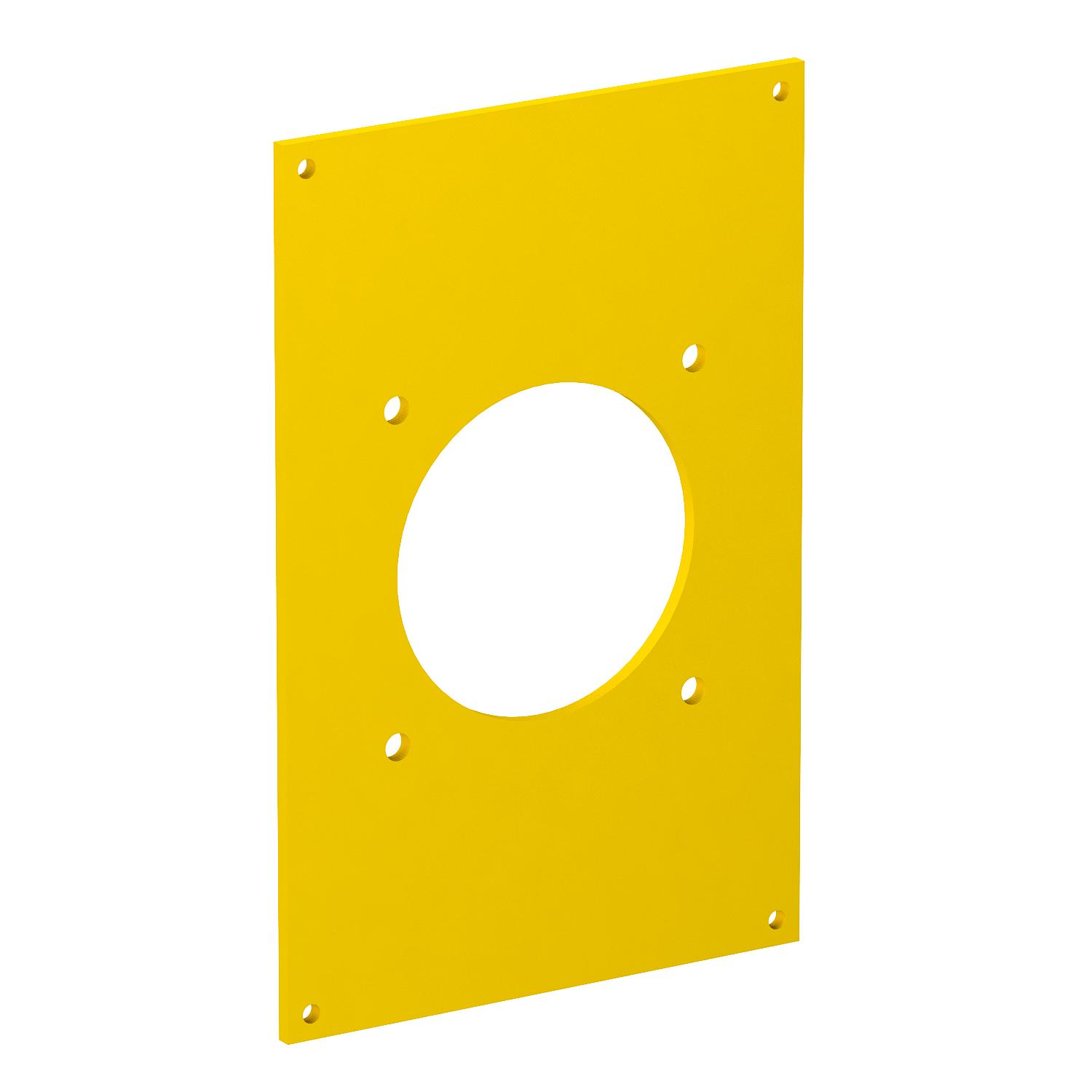

Cover plate with a Ø 70 mm opening for the installation of 1x CEE socket 16/32 A with 60 mm fastening track, including 4 screws for fastening the device.
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Blanking lid no
Colour Rape yellow; RAL 1021

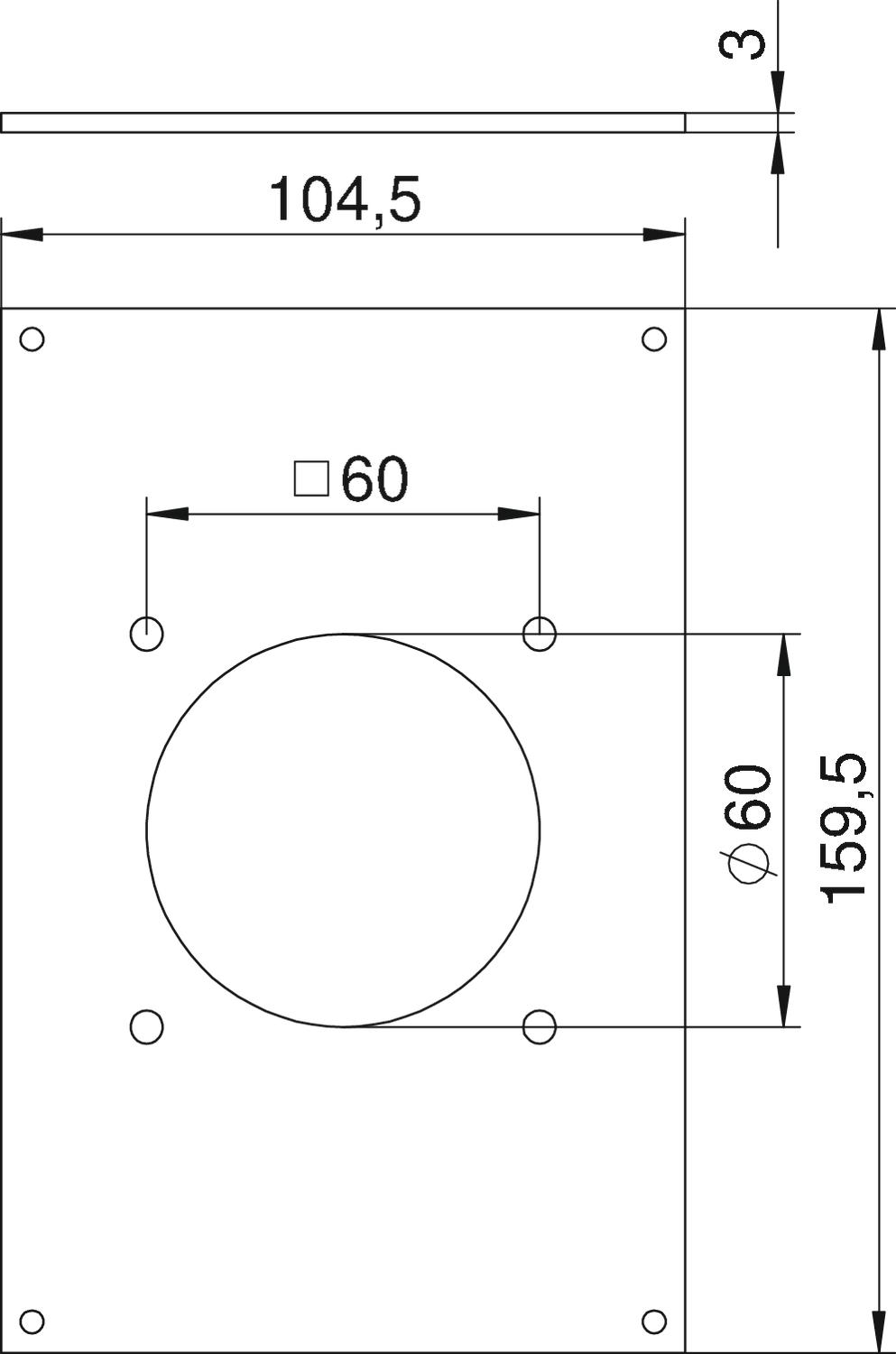

Dimension 160x105mm
Fastening type Screw-on
Halogen-free no
Height 159,5 mm
Installation technology CEE 60x60 mm
Material Polyvinylchloride
Number of units 1
Opening shape Round
Protection rating IP44
Width 104,5 mm
All types

All types

Types Item no. Quantity SSU
VHF-P3 6109865
10 piece
Downloads

Download

Download
Download

REACH Declaration of conformity VHF-P3 / 6109865 , 0.12MB , pdf
Download
RoHS Declaration of conformity VHF-P3 / 6109865 , 0.13MB , pdf
Download

VHF-P3 / 6109865
