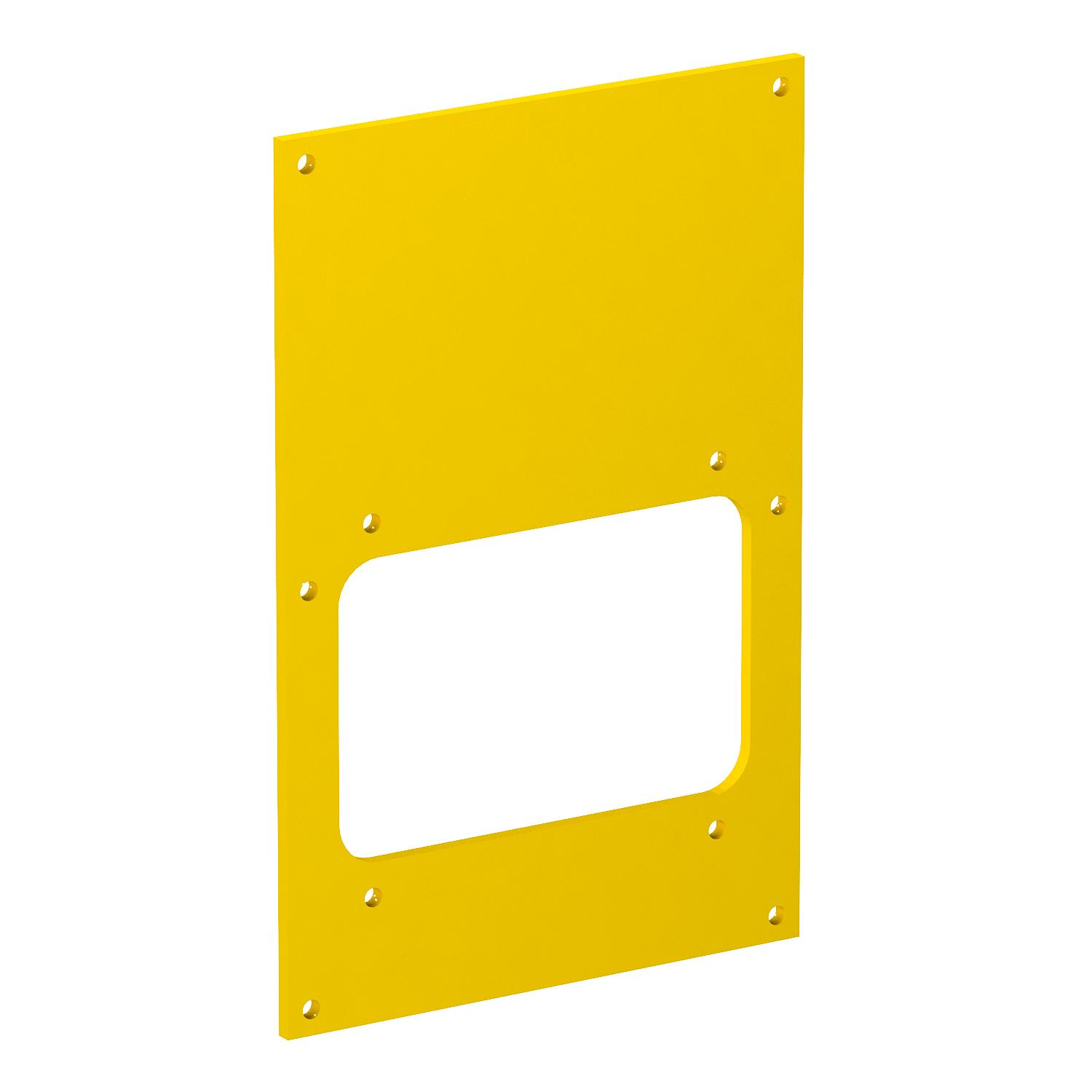

Cover plate VHF for protective equipment installation

Item no. 6109867 | EAN 4012195125525

Product description

Product description

Cover plate with cut-out for the installation of a cover above protection unit (type VHF-AE4TE). Maximum equipment corresponds to four units.
Cover plate for the VHF power supply units for the installation of a cover above protection unit (type VHF-AE4TE). Maximum equipment corresponds to four units.
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Blanking lid no
Colour Rape yellow; RAL 1021

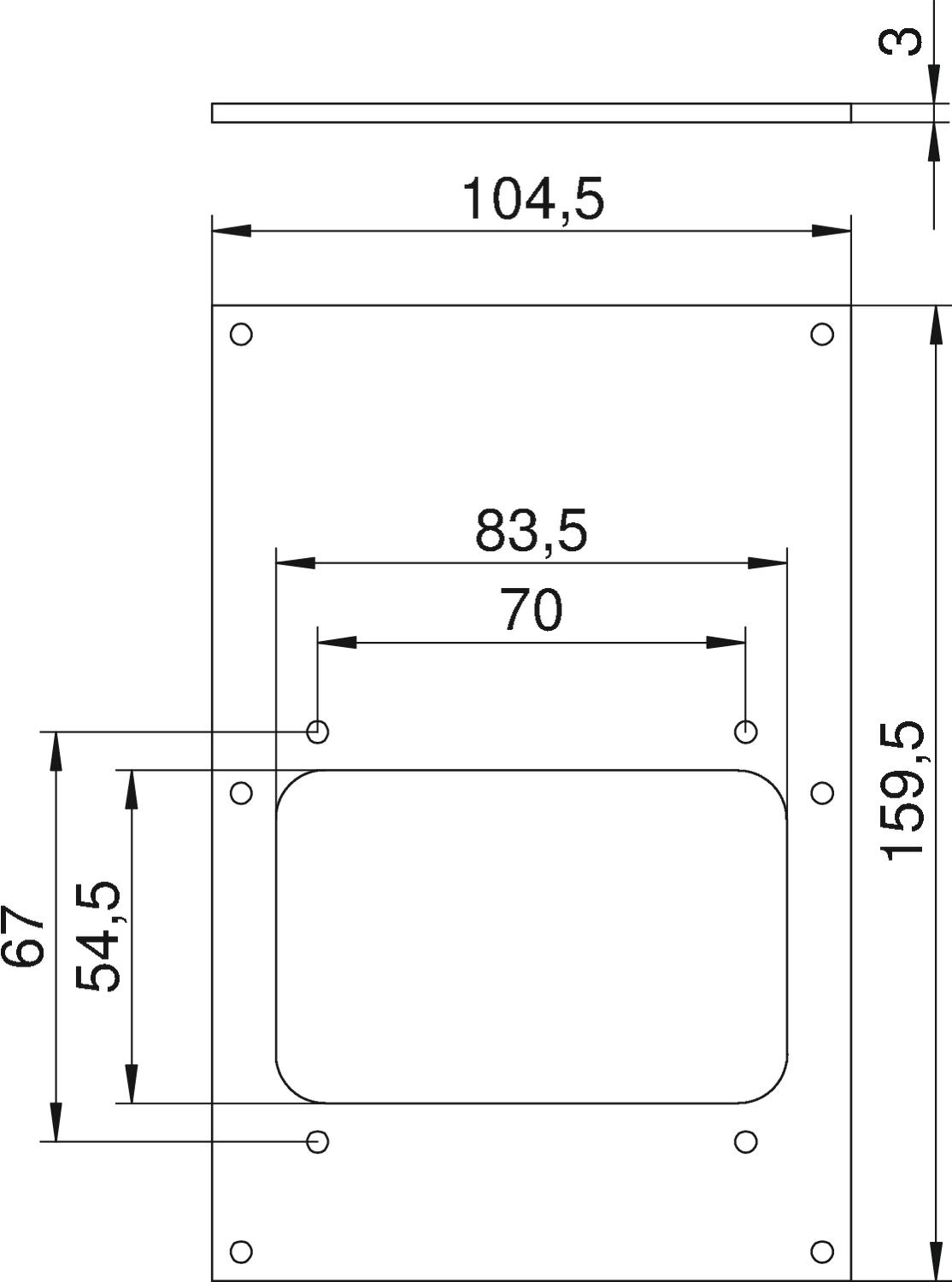

Dimension 160x105mm
Fastening type Screw-on
Halogen-free no
Height 159,5 mm
Installation technology Support clamp
Material Polyvinylchloride
Number of units 1
Opening shape Rectangular
Protection rating IP44
Width 104,5 mm
All types

All types

Types Item no. Quantity SSU
VHF-P6 6109867
10 piece
Downloads

Download

Download

REACH Declaration of conformity VHF-P6 / 6109867 , 0.12MB , pdf
RoHS Declaration of conformity VHF-P6 / 6109867 , 0.13MB , pdf

VHF-P6 / 6109867
